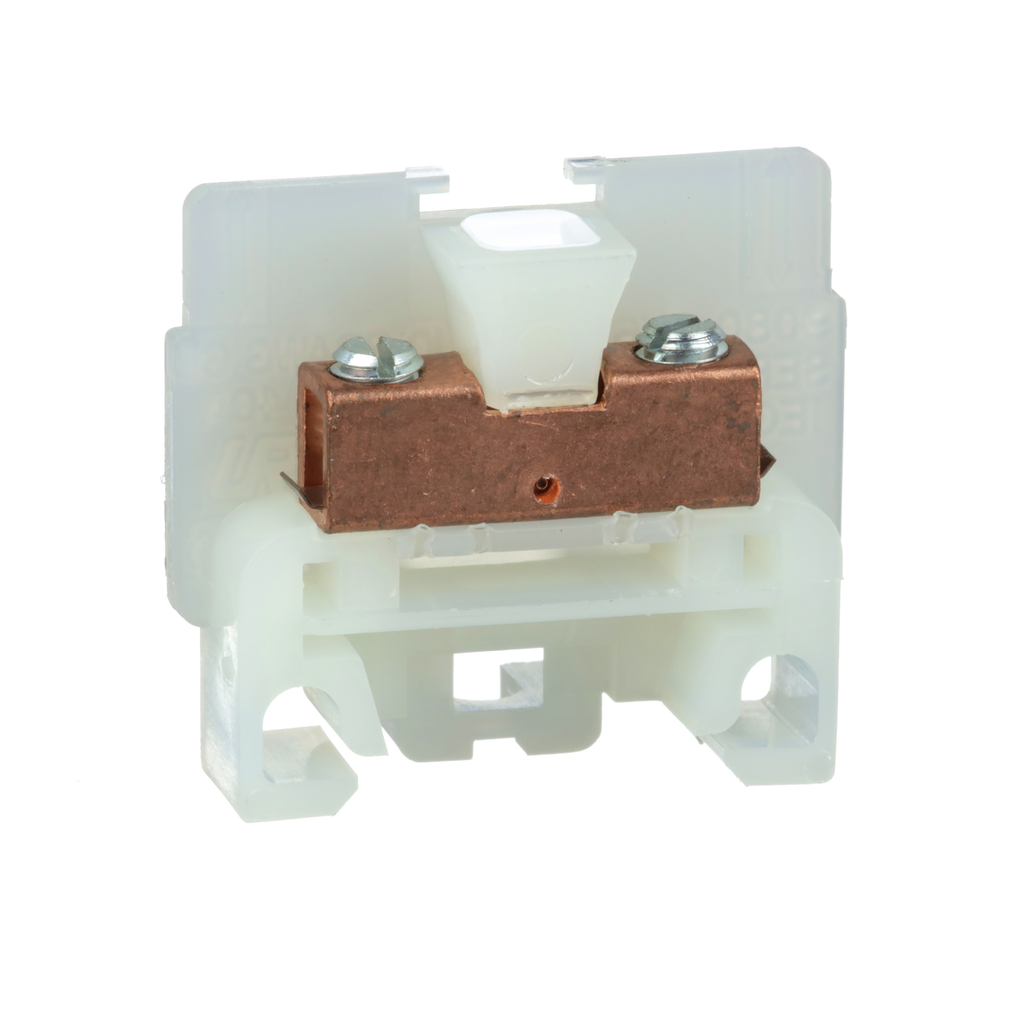

Square D 9080GK6 600 Volt 40 Amp 22 to 10 AWG 35 mm Din Rail Terminal Block

Product Description

The Square D 9080GK6 is a reliable terminal block designed for efficient wire terminations in control panels. The product meets NEMA standards and accommodates solid or stranded copper wires ranging from twenty-two to ten AWG. Each terminal is equipped with a box lug connector, ensuring compatibility with various wire combinations.

• Rated for up to forty amps
• UL component recognized for use up to seventy amps
• Designed for different wire sizes and types

Product Highlights

This terminal block features a natural nylon construction and is approved for use with various wire combinations. Its UL and CSA certifications confirm its capability to handle voltages up to six hundred VAC or VDC.

Product Information

Standard Information

• Brand: Square D
• MPN: 9080GK6

Technical Specifications

• Catalog Number: 9080GK6
• Manufacturer: Schneider Electric
• Voltage: 600 Volt
• Current: 40 Amp
• Wire Size Compatibility: AWG 22 to AWG 10
• Material: Nylon
• Depth: 0.35 inches
• Width: 1.4 inches
• Height: 1.39 inches
• Certifications: UL, CSA, CE
• Country of Origin: Mexico
