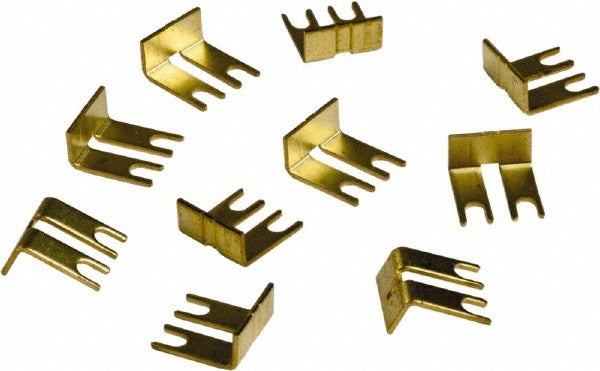

Square D 9080GH78 Terminal Block Jumper GA6 GP6

Product Description

The SQUARE D 9080GH78 is a terminal block jumper designed for use with GA6 and GP6 series terminal blocks. It provides a reliable bridging connection between adjacent terminals, allowing multiple terminals to be tied to a common potential without additional wiring. Electricians and panel builders use this jumper to simplify wiring in control panels, distribution boards, and industrial enclosures. At 0.01 pounds and compact dimensions of 0.7 inches in length, 0.6 inches in width, and 0.3 inches in height, it installs cleanly into tight terminal strip assemblies.

This jumper is suited for use in residential, commercial, and light industrial control wiring applications where GA6 or GP6 terminal blocks are installed. It is a common component in motor control centers, relay panels, PLC wiring panels, and electrical enclosures that rely on SQUARE D terminal block systems. The compact form factor makes it straightforward to integrate into existing terminal strip layouts during new installation or panel modification work.

Key Features

• Bridges adjacent terminals on GA6 and GP6 terminal block series
• Compact size at 0.7 x 0.6 x 0.3 inches for tight panel installations
• Lightweight at 0.01 pounds — minimal impact on panel weight calculations
• Single-piece package quantity supports precise component ordering
• UNSPSC Code 39121400 for procurement and catalog classification

Compatibility

Designed for use with SQUARE D GA6 and GP6 series terminal blocks as specified by the manufacturer.

Installation Notes

Installation is performed by a licensed electrician or qualified panel builder. De-energize and lock out the panel or enclosure before inserting or removing terminal block jumpers, following NFPA 70E lockout/tagout procedures. Confirm the jumper seats fully into the terminal block positions before re-energizing. Do not use this jumper on terminal block series other than those specified in the compatibility data.
