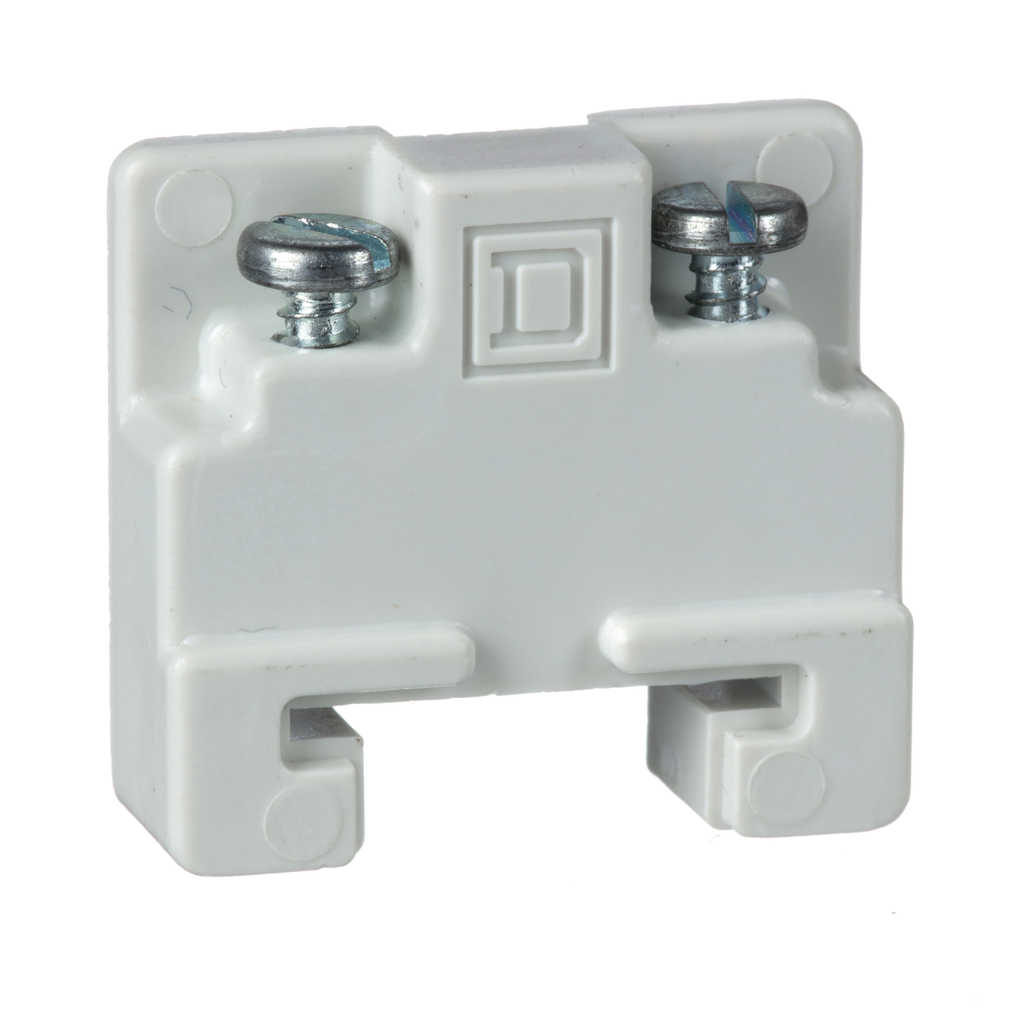

Square D 9080GH10 Terminal Block End Clamp Power (0.4 in) Replacement MPN

Product Description

The Square D 9080GH10 terminal block end clamp is designed to securely hold terminal blocks in place on 9080GH mounting tracks. This clamp is made according to NEMA standards and is essential for terminating wire connections in various electrical applications. A single clamp is required for each end of the terminal block assembly, tightened using two mounting screws to ensure a secure fit.

• NEMA sectional terminal blocks
• Compatible with 9080GH mounting track
• UL recognized and CSA approved

Product Highlights

The Square D 9080GH10 end clamp supports various terminal block applications, ensuring a reliable connection and maintaining system integrity.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080GH10
• Type: End Clamp
• Material: Lexan
• Width: 1.25 inches
• Depth: 0.4 inches
• Height: 1.13 inches
• Warranty Length: 18 months
• Country of Origin: Mexico
• RoHS Compliance: Yes
