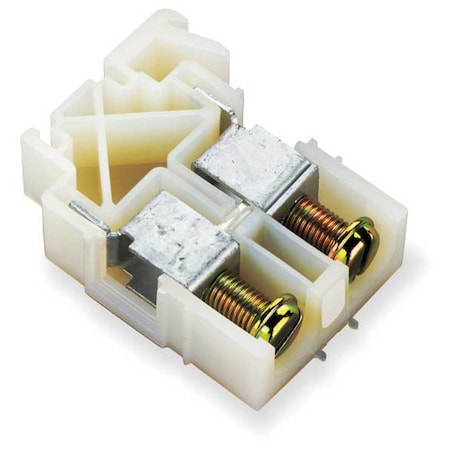

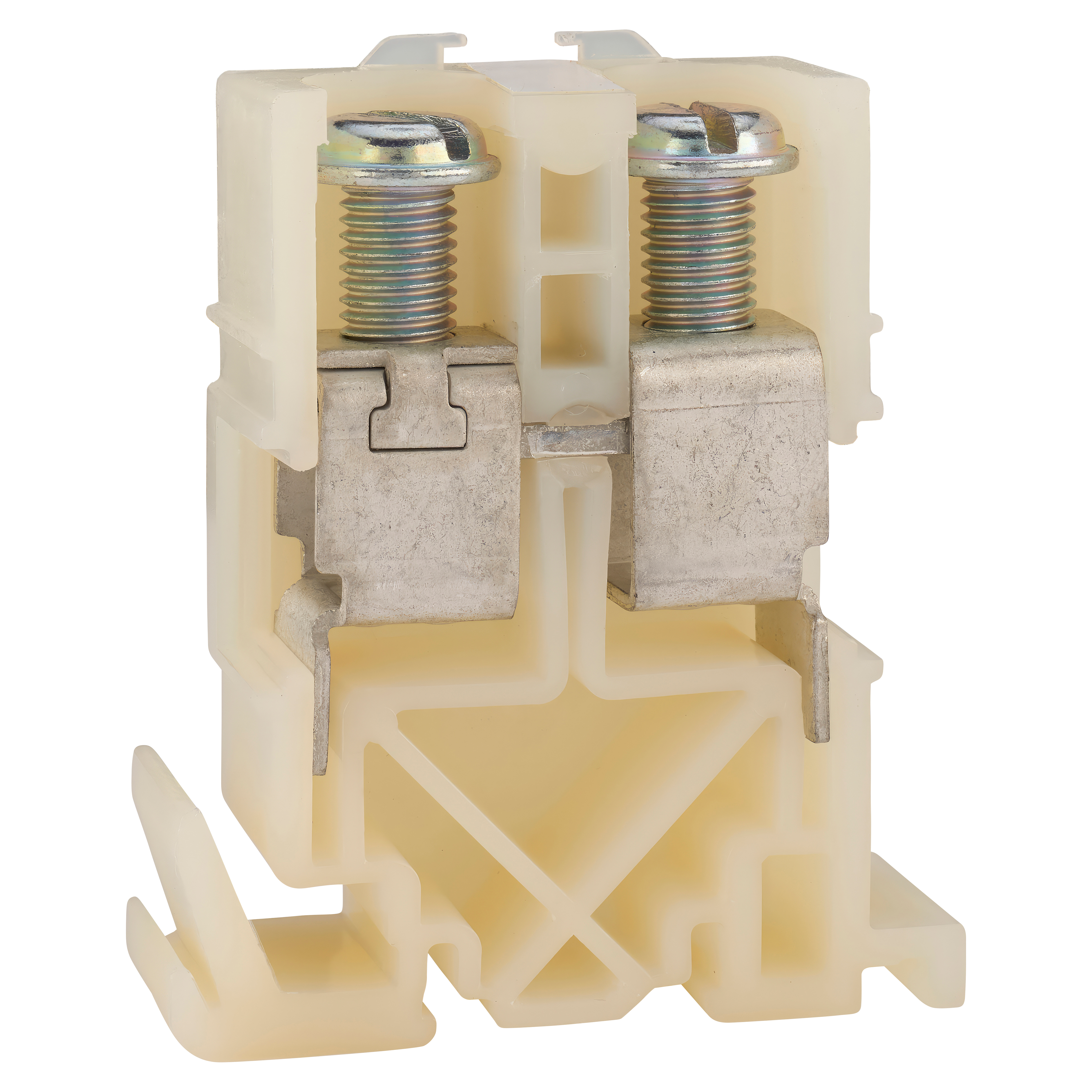

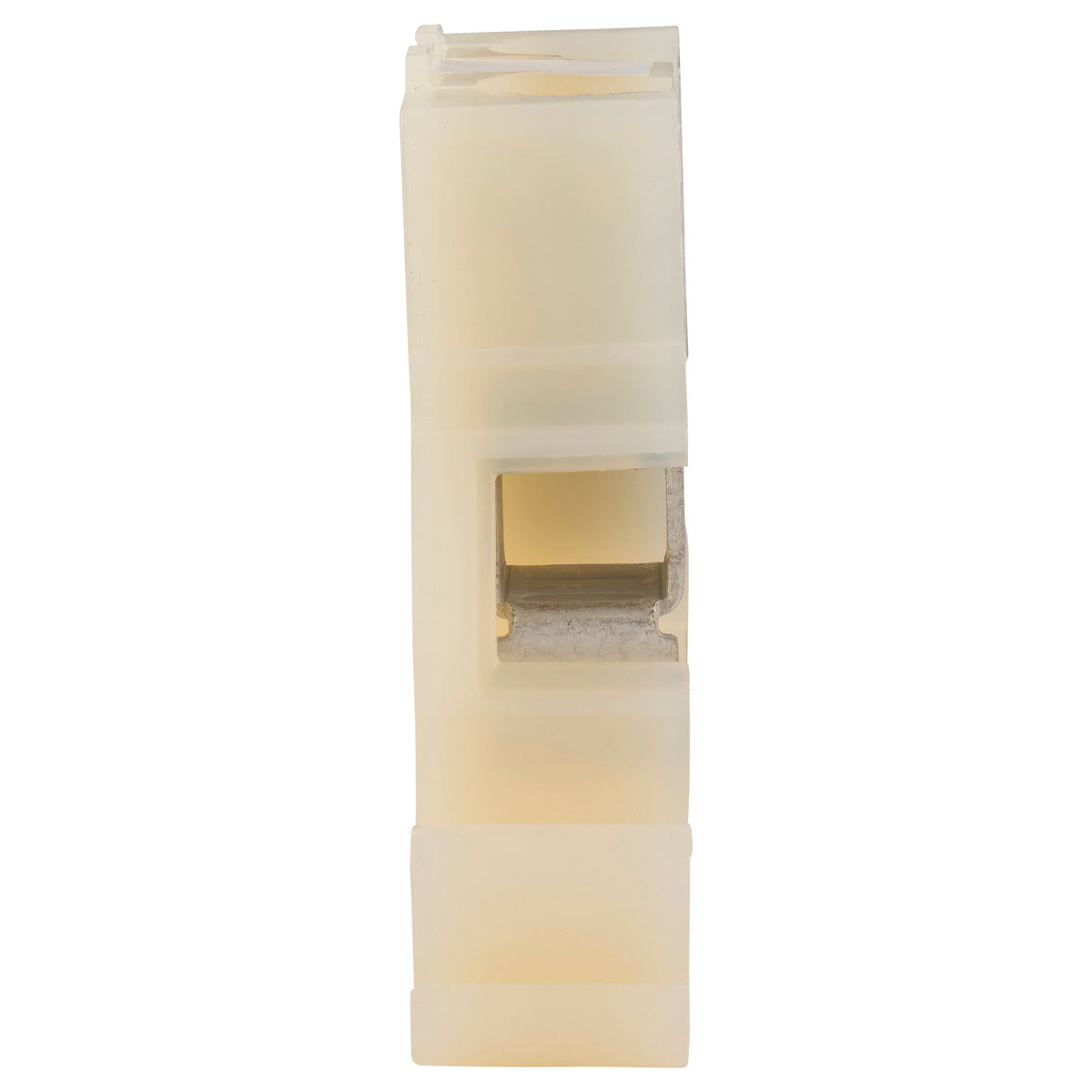

Square D 9080GD6 terminal block 600 volt 170 amp 12 to 1/0 AWG

Product Description

The Square D 9080GD6 terminal block provides a solution for terminating wires in a control panel. Designed to NEMA standards, this terminal block features a box lug connector compatible with solid or stranded copper wires ranging from #12 to 1/0 AWG. It is UL component recognized for up to 180 Amps and CSA certified for up to 170 Amp, with a voltage rating of up to 600 VAC or VDC.

• Accepts 12 to 1/0 AWG solid/stranded copper wires
• Rated up to 180 Amps (UL) and 170 Amps (CSA)
• Suitable for use up to 600 VAC or VDC

Product Highlights

The Square D 9080GD6 terminal block is ideal for control panel wiring, supporting a range of wire sizes and offering robust electrical ratings.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9080GD6
• Country of Origin: Mexico

Technical Specifications

• Type: GD6B;Terminal block
• Brand: Square D
• Current: 170 Amp
• Voltage: 600 Volt
• Material: Nylon
• Wire Size: AWG 12...AWG 1/0 copper
• Mounting Type: 35 Mm DIN Rail
• Certifications: CE,CSA File 62144 Class 6228 01,UL Recognized E60616 CCN XCFR2
• Conductor Size: 12-1/0 AWG
• Line Rated Current: 170-170 A
• Catalog Number: 9080GD6
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• Configuration: Single Tier 1-Circuit
• Construction: Standard NEMA
• Voltage Rating: 600 VAC/600 VDC VAC//VDC
• Current Rating: 180 Ampere (UL), 170 Ampere (CSA)
• Terminal Type: Box Lug
• Block Width: 0.7 Inch
• Temperature Rating: -40 to 257 Deg F
• Housing Material: Nylon
• Mounting: 35 MM DIN Rail
• Amps: 180 A
• Item: Terminal Block
• Depth: 2.12 in
• Width: 0.7 in
• Height: 2.71 in
• Torque: 50 lb-in
• Standards: CE, CSA Approved, RoHS Compliant, UL Component Recognized
• Housing Color: Natural
• Connection Type: Screw Clamp
• Maximum Voltage: 600 V AC/DC
• Number of Poles: 1
• Number of Tiers: 2
• For Conductor Material: Copper
• For Conductor Type: Solid, Stranded
• Circuit Protection Type: None
• Maximum Operating Temperature: 257 Degrees F
• Minimum Operating Temperature: -40 Degrees F
• Alternate Catalog Number: 9080GD6
• Amperage Rating: 170 A
• Number Of Poles: 1
• Standard: UL RECOGNIZED E60616 CCN XCFR2-CE-CSA FILE 62144 CLASS 6228 01
• Torque Rating: 5 to 5.6 Nm
• UNSPSC: 39121410
• Model: 9080GD6
