Square D 9080GCB30 Circuit Protector 250 Volt 3 Amp Type NEMA

Product Description

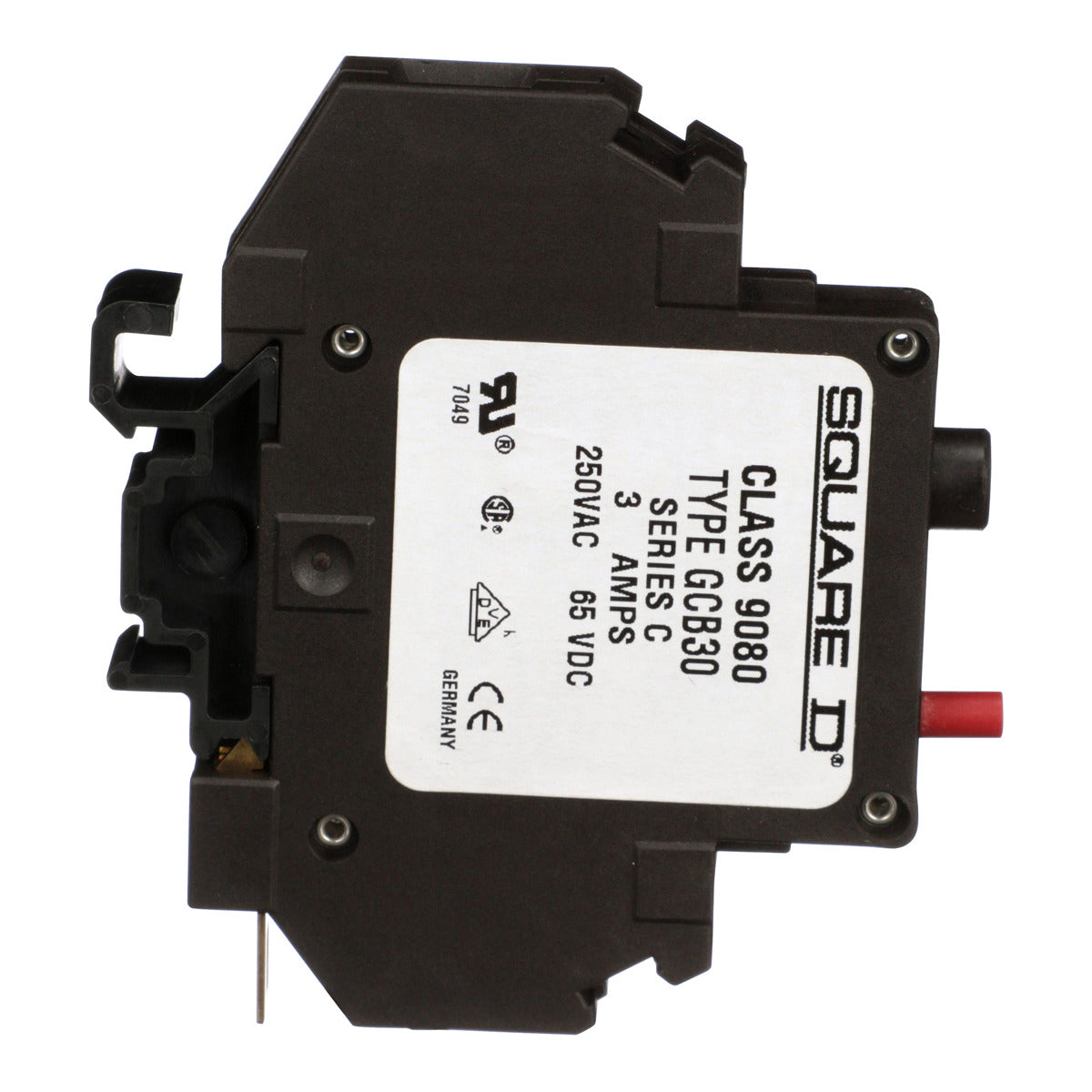

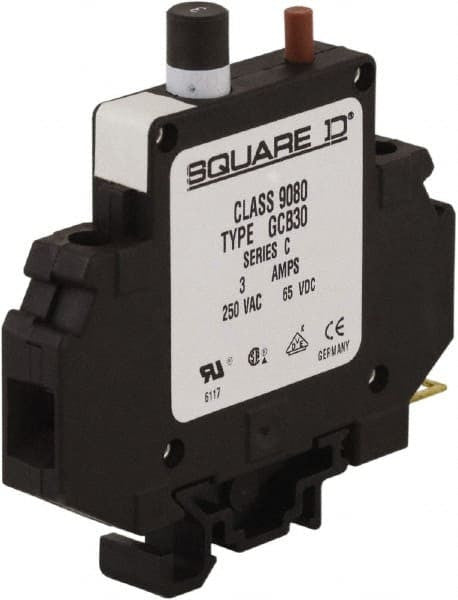

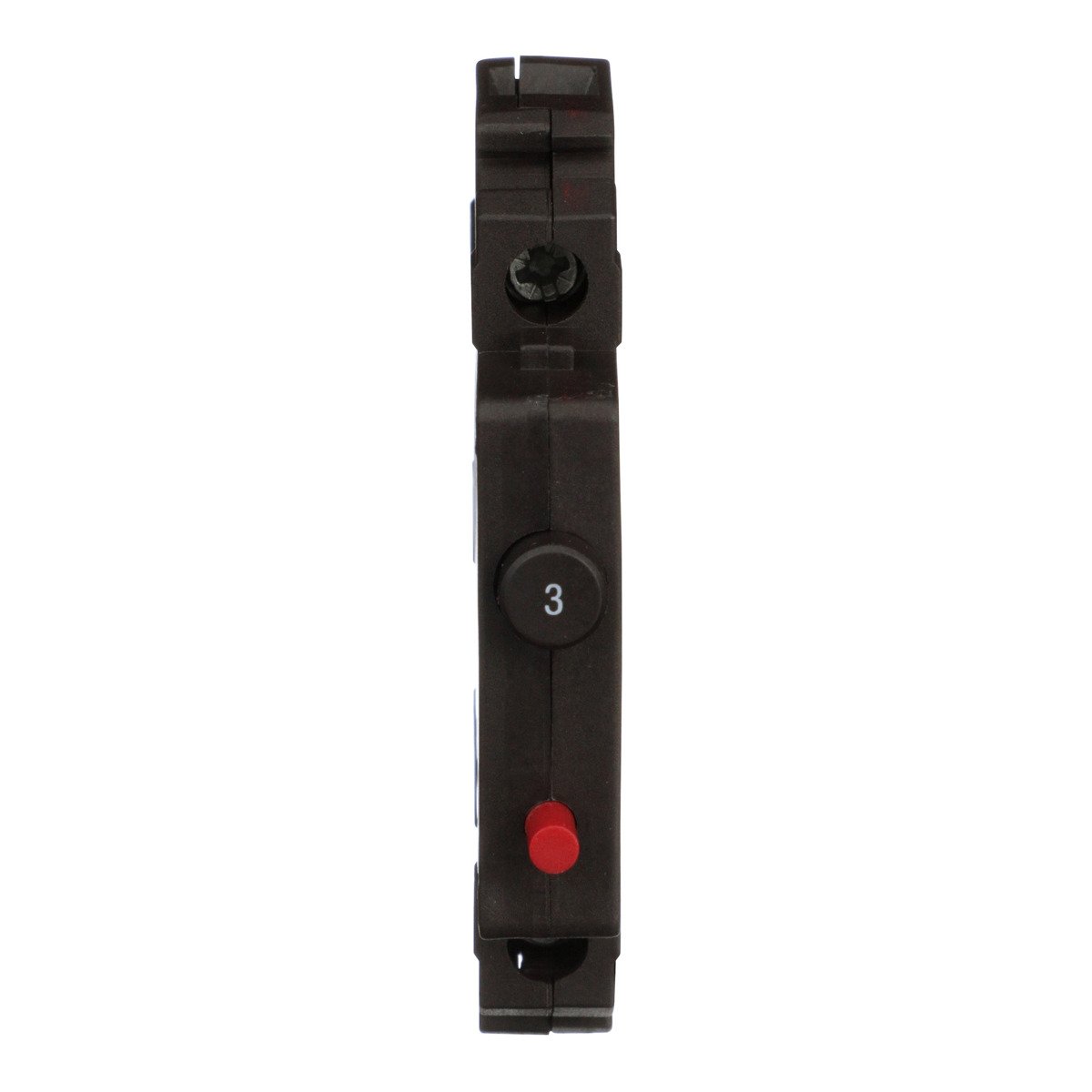

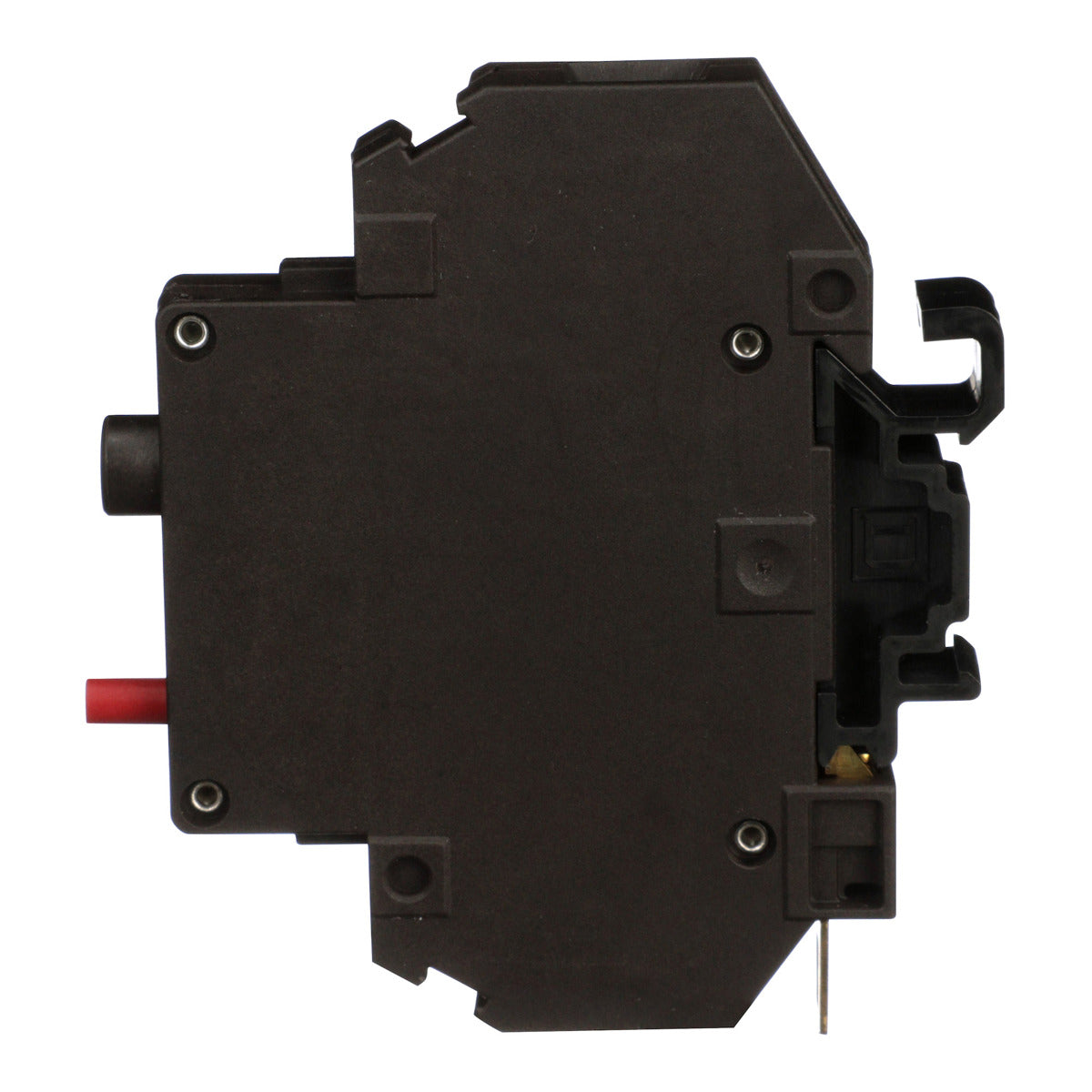

The SQUARE D 9080GCB30 circuit protector is a Linergy thermal magnetic, trip-free device. It can be mounted on a 35 mm DIN track or Square D terminal block track. This circuit protector has a current rating of 3.0 Amperes. The thermal feature trips when there is an overload of ten times the rated current or less, and the magnetic mechanism trips instantaneously when there is a short circuit.

• Trip free device
• Can be mounted on 35 mm DIN track or Square D terminal block track
• Current ratings from 0.1 to 15 A

Product Highlights

Thermal magnetic circuit protector with a 3.0 Amp current rating, suitable for track mounting and industrial applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9080GCB30
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 9080GCB30
• Type: Circuit Protector
• Brand: Square D
• Voltage: 250 Volt
• Amperage: 3 Amp
• Standard: CSA C22.2 No 235,DIN 57470,UL 1077
• Wire Size: AWG 16...AWG 10 copper
• Applications: Industrial Application
• TC Connection: Box lugs
• Certifications: CE,CSA File 025490 Class 3211 07,UL Recognized E233026 CCN QVNU2
• Conductor Size: 16-10 AWG
• Number of Poles: 1 Pole
• Line Rated Current: 3 A
• Operating Temperature: -22 to 140 degrees F (-30 to 60 degrees C)
• Depth: 0.5 in
• Width: 3.15 in
• Height: 3.45 Inch
• Length: 0.5 Inch
• Manufacturer: Schneider Electric
• UPC: 785901481034
• GTIN: 00785901481034
• Voltage Rating: 250 VAC, 65 VDC
• Current Rating: 3 Ampere
• Terminal Type: Box Lug
• Mounting: 35 MM DIN Rail
• Approval: UL 1077, CSA, CE
• UNSPSC Code: 39120000
• Series: Class 9080 Series
• Circuit Breaker Type: Circuit Protector
• Tripping Mechanism: Thermal-Magnetic
• Terminal Connection Type: Box Lugs
• Reset Actuator Type: Switch
• Amperage Rating: 3 A
• Connection Type: Box Lug
• Interrupt Rating: 1.5 kA
• Mounting Type: DIN Rail/Track
• Sub-Brand: Square D
• Temperature Rating: -22 to 140 deg F
• Trip Type: Thermal Magnetic
• Strip Length: 0.5 in
