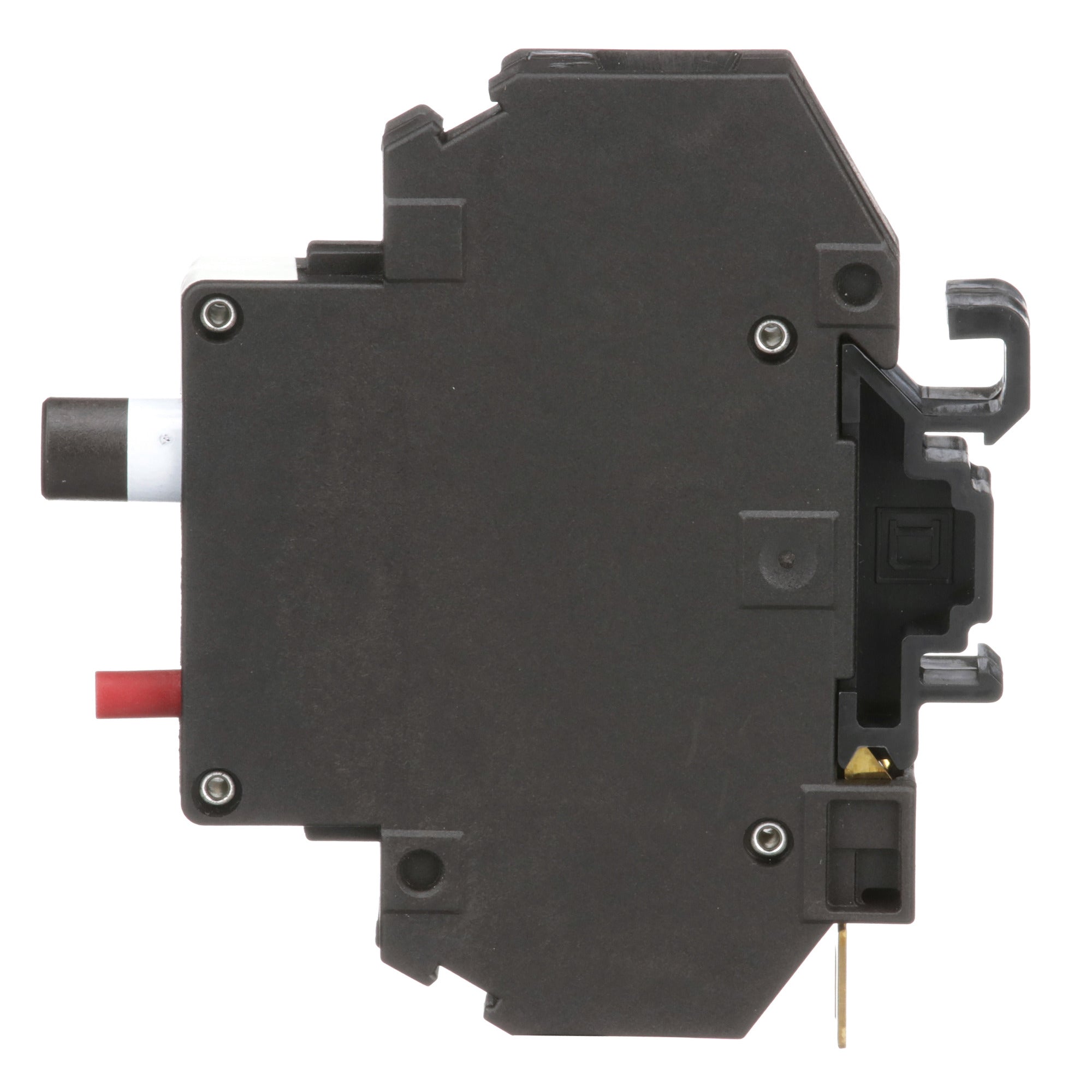

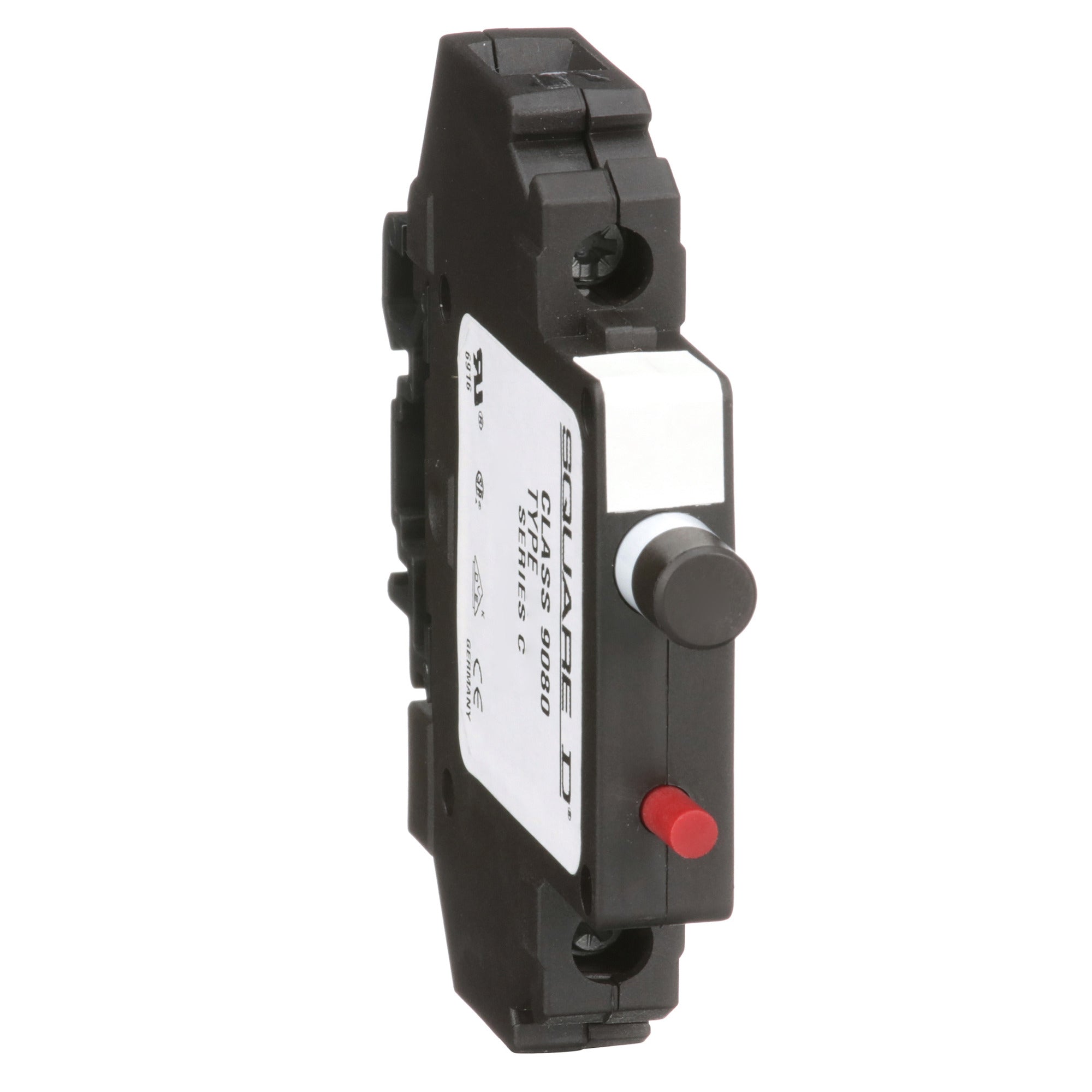

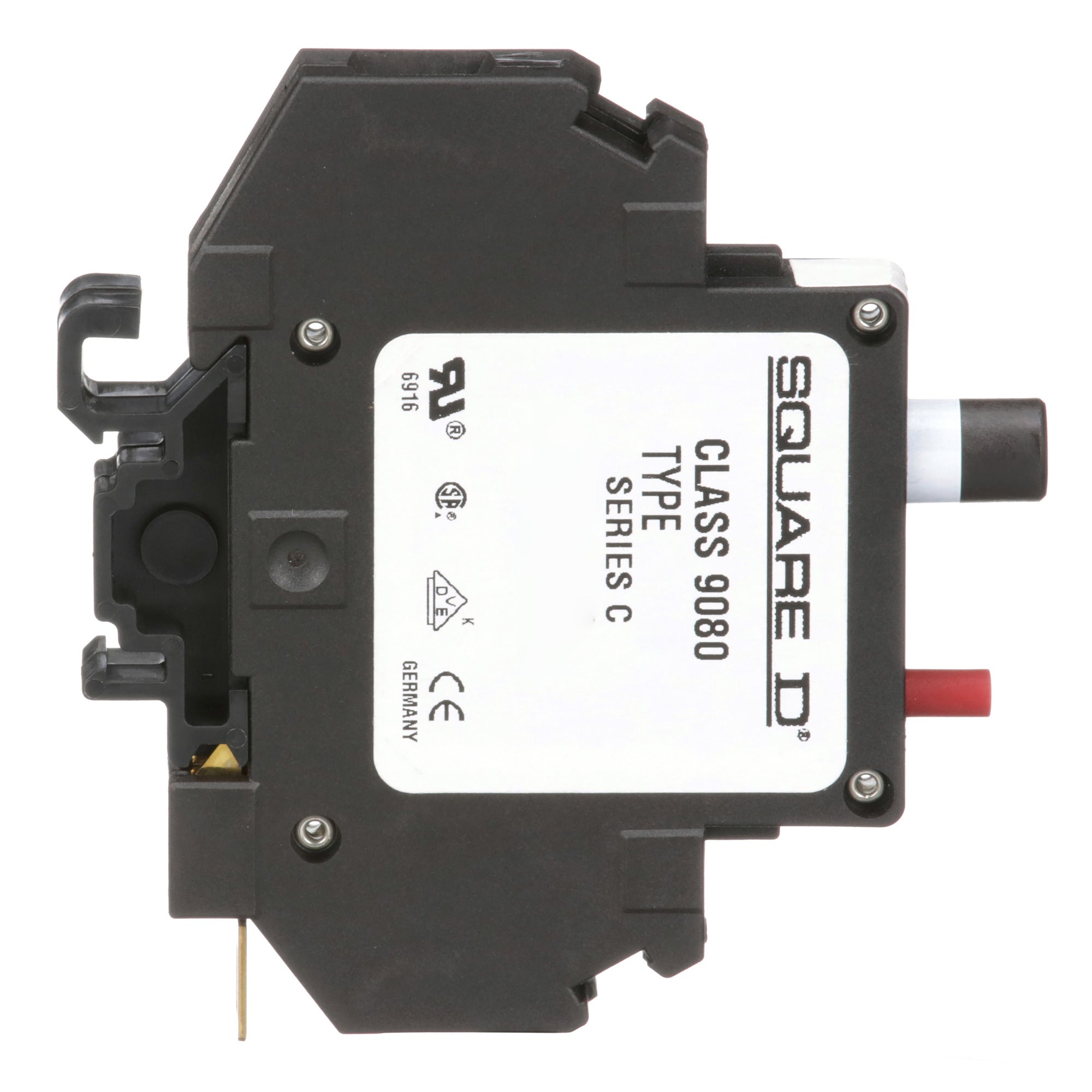

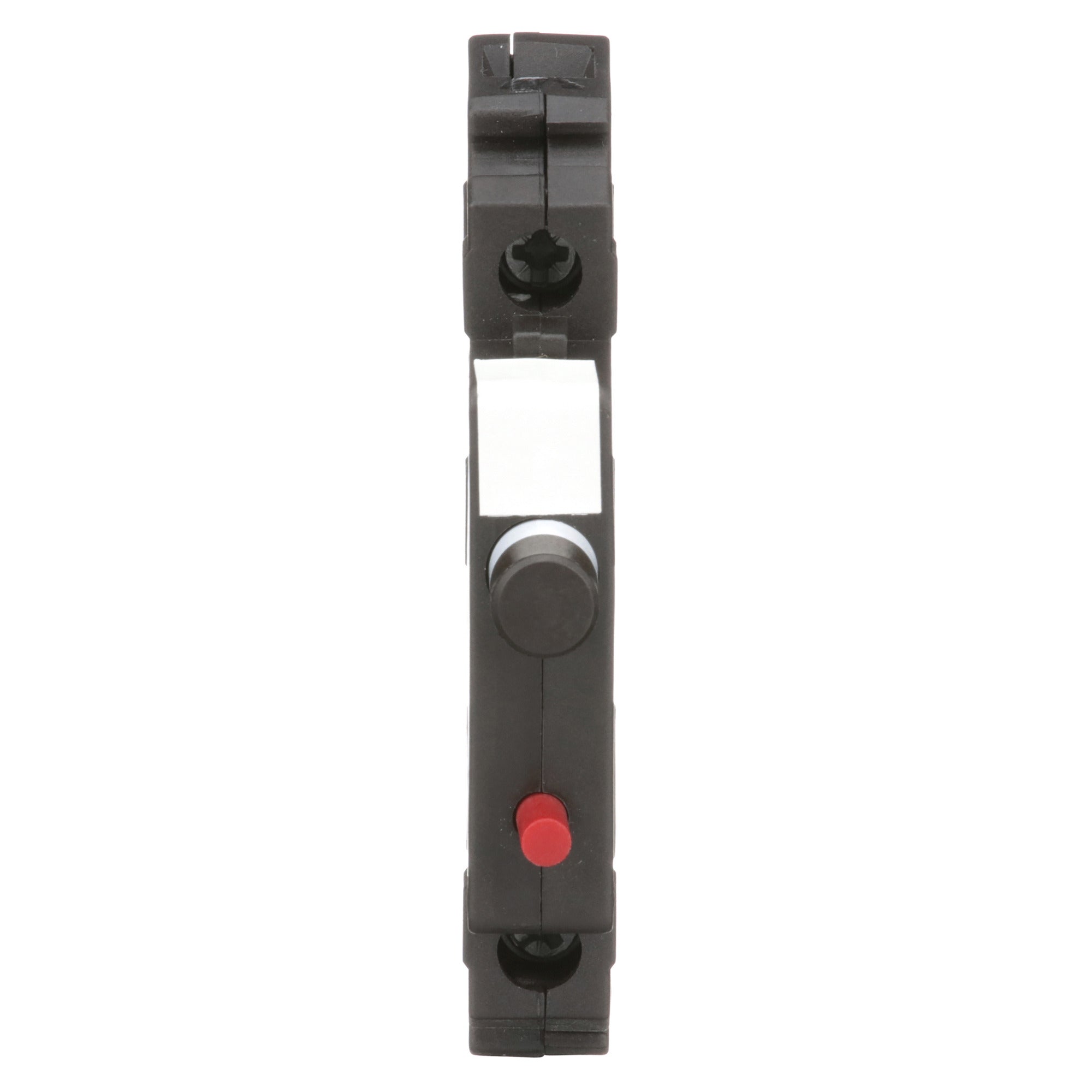

Square D 9080GCB100 Circuit Protector 250 Volt 10 Amp NEMA

Product Description

Square D 9080GCB100 is a thermal magnetic circuit protector. This device is designed to protect electrical circuits from overload and short-circuit conditions. It operates at a voltage of 250 volts and a current rating of 10 amperes. The circuit protector is suitable for mounting on a thirty-five millimeter DIN rail or Square D terminal block track.

• Rated for up to ten amperes with a thermal trip feature.
• Instantaneous magnetic trip mechanism activates during short circuits.
• Allows for a maximum current rating of two hundred amperes without exceeding one hundred times the rated current.

Product Highlights

This protector is ideal for industrial applications and ensures reliable circuit protection.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9080GCB100
• Voltage: 250 V
• Amperage: 10 A
• Dimensions: 0.5 in (Width) x 3.15 in (Height) x 1/2 in (Depth)
• Certifications: CE, CSA, UL
• Operating Temperature: -22 to 140 degrees Fahrenheit (-30 to 60 degrees Celsius)
• Country of Origin: Indonesia
• Warranty Length: 18 months
