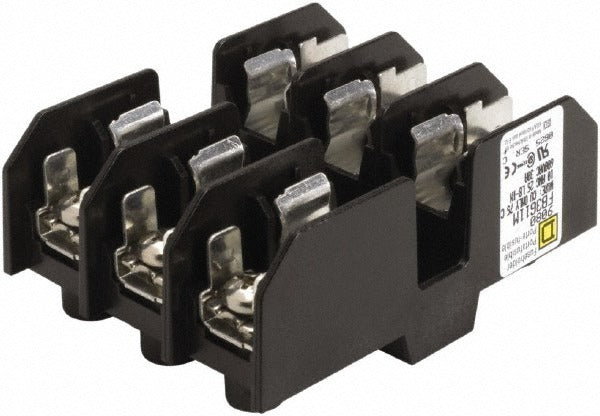

Square D 9080FB3611M 3 Pole Fuse Holder 600V 30A

Product Description

The SQUARE D 9080FB3611M is a 3-pole, surface mount fuse holder rated for 600 volts and 30 amps. It provides a secure, panel-mounted housing for blade or cartridge fuses in industrial and commercial electrical distribution systems. The three-pole configuration handles all phases of a three-phase circuit in a single, compact assembly. Licensed electricians and industrial maintenance technicians install this component when building or servicing control panels, disconnect assemblies, and branch circuit protection enclosures. At 0.23 pounds and a compact footprint, it fits in tight panel layouts without sacrificing circuit protection integrity.

This fuse holder is suited for surface mounting inside electrical enclosures, control cabinets, and junction boxes in both commercial and light industrial environments. It is a direct replacement or new-installation component used wherever three-phase fused disconnect protection is required. The 600-volt rating supports a wide range of motor control, distribution, and equipment-protection applications. Electricians working on panel builds, retrofits, or service replacements will find this holder a straightforward fit for standard 30-amp fuse configurations.

Key Features

• 3-pole design handles all phases of a three-phase circuit in one unit
• 600-volt rating supports a broad range of commercial and industrial applications
• 30-amp continuous current capacity
• Surface mount configuration for direct enclosure or panel installation
• Compact dimensions minimize space usage in crowded control panels

Compatibility

Designed as an OEM-style replacement or new-installation surface mount fuse holder for three-phase electrical control panels and enclosures rated up to 600 volts and 30 amps.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the panel or enclosure before beginning installation. Verify that the fuse ratings inserted into the holder do not exceed the 30-amp, 600-volt ratings of this holder. Secure the holder to the mounting surface with appropriate hardware before inserting fuses and restoring power.
