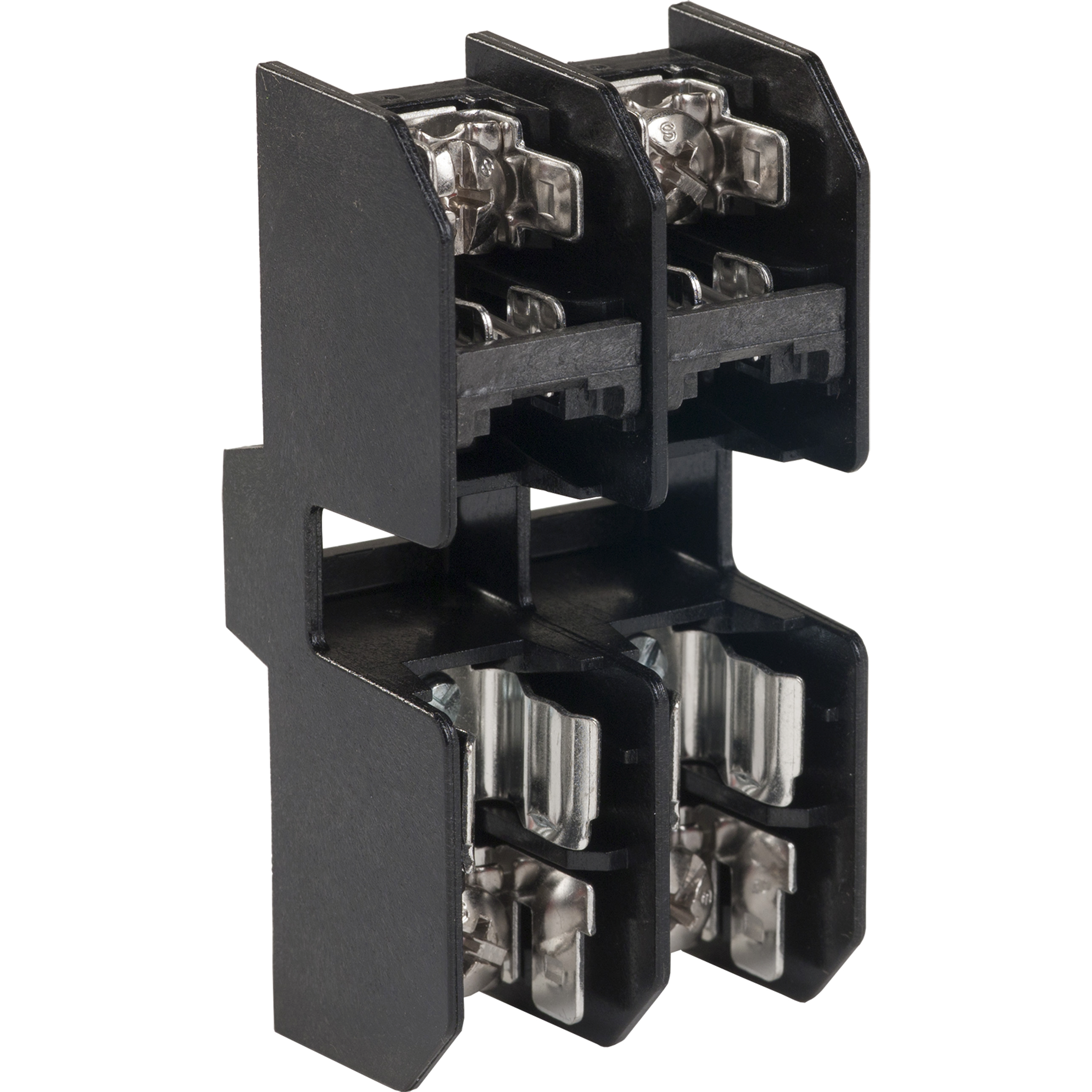

Square D 9080FB2611CC Terminal Block Fuse Holder 30 Amp 600 Volt 2-Pole Class CC

Product Description

The Square D 9080FB2611CC is a 30 Amp, 600 Volt, 2-pole thermoplastic Class CC standard terminal block fuse holder. This fuse holder accepts Class CC fuses and features pressure wire connectors that accommodate 14 to 10 AWG solid or stranded copper wire. It is suitable for surface mounting and has an operating temperature of -40 to 257 degrees F.

• Accepts Class CC fuses
• Pressure wire clamp connection for 14 to 10 AWG wire
• Surface mounting

Product Highlights

Terminal block fuse holder with a 30A, 600V rating, designed for Class CC fuses and surface mounting.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9080FB2611CC
• Country of Origin: United States

Technical Specifications

• Type: Fuse holder
• Brand: Square D
• Class: CC
• Depth: 1.29 Inch
• Width: 1.6 in
• Height: 3.13 Inch
• Length: 0.437 Inch
• Current: 30 Amp
• Voltage: 600 Volt
• Amperage: 30 Amp
• Material: Thermoplastic: Block
• Fuse Type: CC
• Product UPC: 78590109720
• 12-Digit UPC: 785901097204
• Strip Length: 0.437 in
• Mounting Type: Surface Mount
• TC Connection: Pressure wire clamp
• Certifications: CE,CSA File 70360 Class 6225 01,UL Recognized E40747 CCN IZLT2
• Number of Poles: 2 Pole
• Country of Origin: USA
• Line Rated Current: 30 A
• Operating Temperature: -40 degrees F (-40 degrees C)
• Catalog Number: 9080FB2611CC
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Connection: screw terminals 25 lbf.in AWG 14...AWG 10 copper;Pressure wire clamp;AWG 14...AWG 10 copper or aluminium
• Mounting: Surface
• Standard: CSA file 70360 class 6225 01;CE;UL recognized E40747 CCN IZLT2
• UPC: 785901097204
• GTIN: 00785901097204
• Item Type: Fuse holder
• Series: 9080FB
• Wire Gauge: 14 to 10 AWG Wire
• Fuse Length: 1-1/2 in
• Fuse Diameter: 13/32 in
• Temperature Rating (Degrees F): -40 to 257, -40 to 257 deg F
• UNSPSC: 39121624
• Alternate Catalog Number: 9080FB2611CC
• Model: 600V
• MPN: 9080FB2611CC
• Number Of Poles: 2
