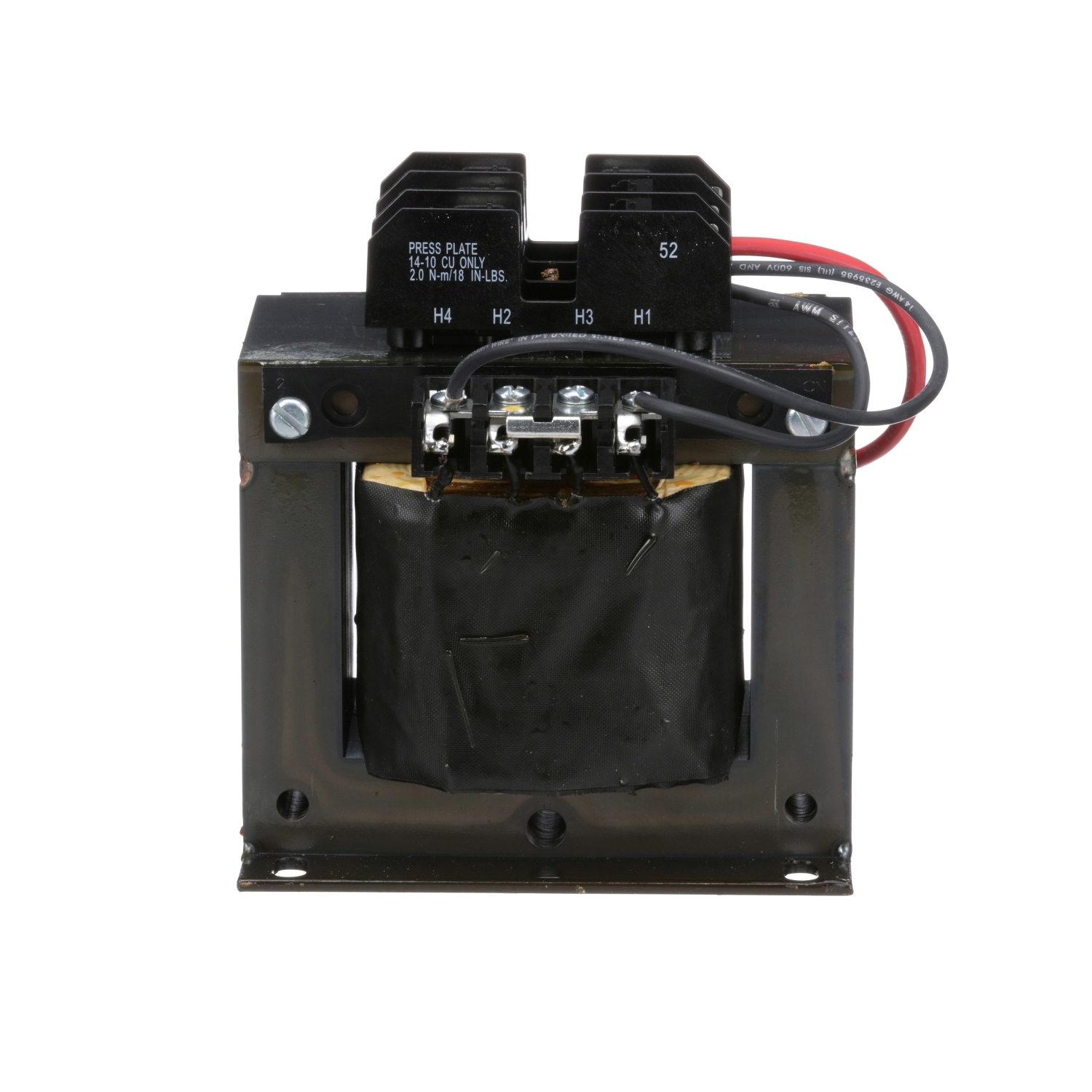

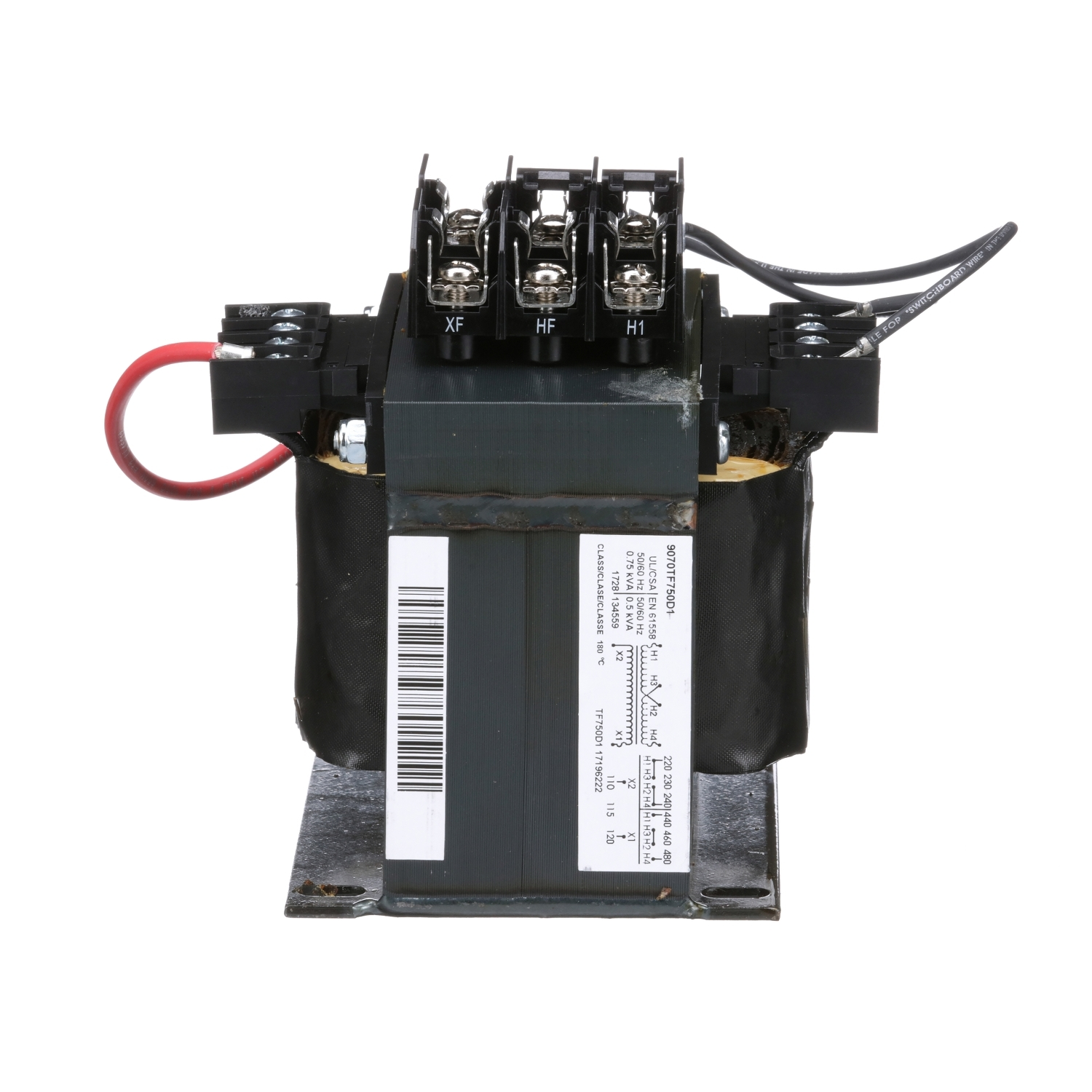

Square D 9070TF750D1 750 VA 240 x 480 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

Product Description

The Square D 9070TF750D1 is an industrial control transformer with a power rating of 750 VA. Designed with low impedance windings for voltage regulation, it accommodates high inrush current. This 1-phase transformer has a primary voltage of 240 x 480V and a secondary voltage of 120V. It complies with UL, CSA, and CE standards.

• Low impedance windings for excellent voltage regulation
• Accommodates high inrush current
• Pre-wired and mounted fuse blocks

Product Highlights

The Square D 9070TF750D1 ensures reliable power and meets diverse needs of panel builders and machinery OEMs with its versatile design and compliance with industry standards.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9070TF750D1
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 9070TF750D1
• Brand: Square D
• Manufacturer: SQUARE D
• Power Rating: 750 VA
• Primary Voltage: 240 x 480 V 120 V || 230 x 460 V 115 V || 220 x 440 V 110 V
• Secondary Voltage: 120 V
• Number of Phases: 1 Phase
• Temperature Rise: 115 °C
• Material: Copper: Winding
• Enclosure: NOT RATED (OPEN DEVICE)
• Applications: FSC2
• TC Connection: SCREW CLAMP
• Certifications: CSA File LR37055 Guide 184-N-90,UL Listed File E61239
• Type: Type TF Industrial Open Style
• Depth: 5.61 Inch
• Width: 5.25 in
• Height: 5.8 Inch
• Temperature Rating: 115 DEGREES C
• Country of Origin: Mexico
• Made in USA: No
• UPC: 785901904908
• GTIN: 00785901904908
• Phase: 1
• Standards: UL, CSA, CE
• Frequency Rating: 50/60 Hz
• Insulation Class: 180
• Terminal Type: Screw
• Mounting: 0.56 Inch L x 0.28 Inch W Slot
• Applicable Standard: EN 60742/01.89
• Approval: UL, CSA, CUL, CE, NOM
• Hz [Specifications]: 50/60
• Item [Specifications]: Control Transformer
• Fused [Specifications]: Yes
• Mounting [Specifications]: Panel
• VA Rating [Specifications]: 750VA
• Input Voltage [Specifications]: 240/480VAC
• Enclosure Type [Specifications]: Open Device (Not Rated)
• Output Voltage [Specifications]: 120V AC
• Hz - Electrical [Specifications]: 50 Hz, 60 Hz
• Enclosure Finish [Specifications]: Varnish Vacuum Impregnation
• Transformer Type [Specifications]: Wire-Wound
• Protective Device [Specifications]: Primary Fuse, Secondary Fuse
• Item - Transformer [Specifications]: Control Transformer
• Phase - Electrical [Specifications]: 1
• Primary Connection [Specifications]: Screw clamp terminals
• Secondary Connection [Specifications]: Screw clamp terminals
• Insulation Max. Temp. [Specifications]: 180°C
• Mounting - Transformer [Specifications]: Foot
• VA Rating - Transformer [Specifications]: 750 VA
• Input Voltage - Transformer [Specifications]: 240V AC, 480V AC
• Enclosure Style - Transformer [Specifications]: Open
• Winding Material - Transformer [Specifications]: Copper
• Range Of Product: TF
• Product Or Component Type: Industrial Control Transformer
• Rated Power In Va: 750 VA UL || 750 VA CSA || 750 VA NOM || 500 VA CE
• Electrical Connection: screw clamp terminals
• Product Compatibility: FSC2
• Nema Degree Of Protection: not rated (open device)
• Insulation Temperature: 180 °C
• Manufacturer Part Number: 9070TF750D1
• UNSPSC Code: 39120000
• Connection Type: Screw Clamp
• Enclosure Type: Open
• Mounting Type: Panel
• Series: 9070
• Sub-Brand: Square D
• Needed Voltage: 110 VAC, 115 VAC, 120 VAC
• Available Voltage: 220 VAC, 230 VAC, 240 VAC, 440 VAC, 460 VAC, 480 VAC
• Primary Type: Industrial Transformer
