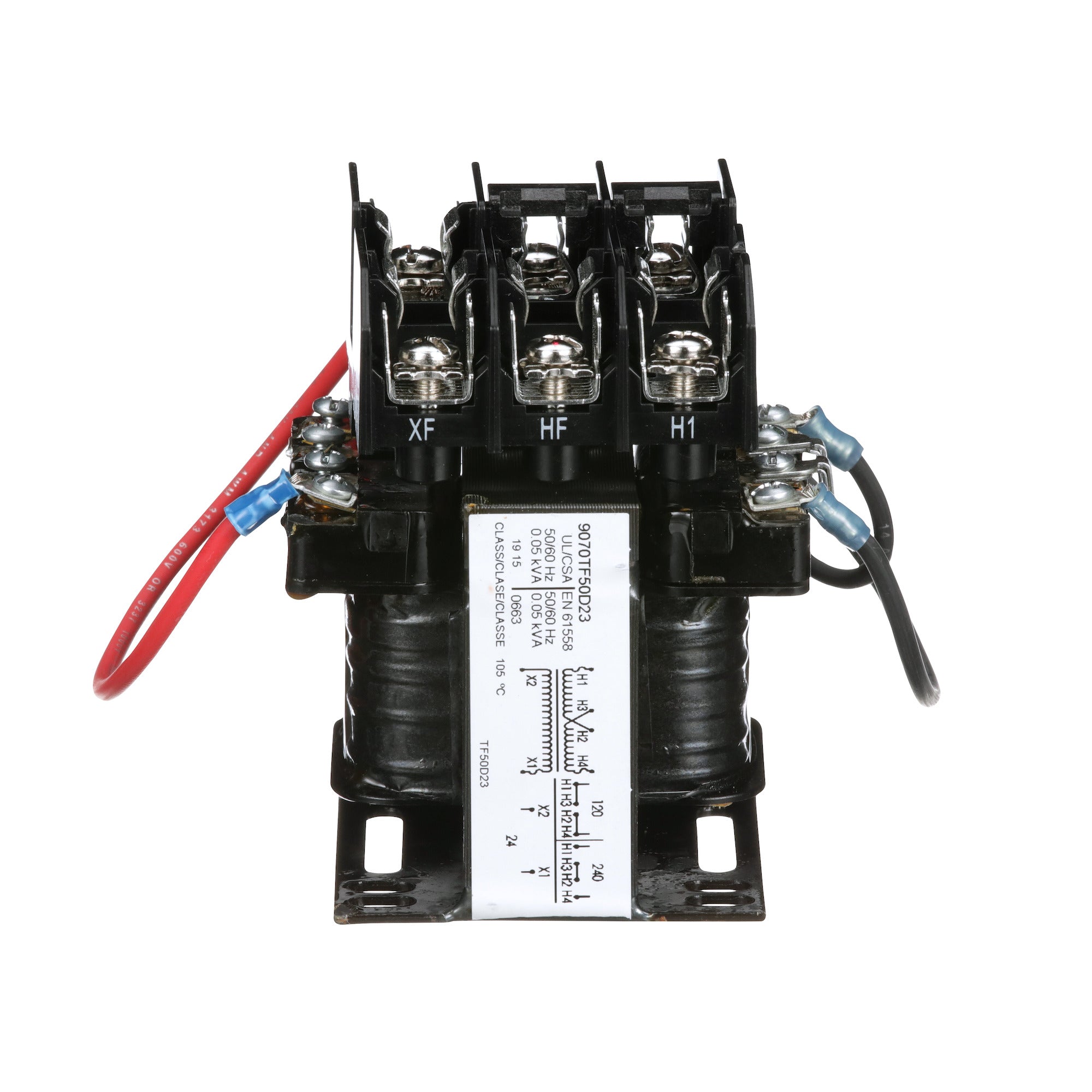

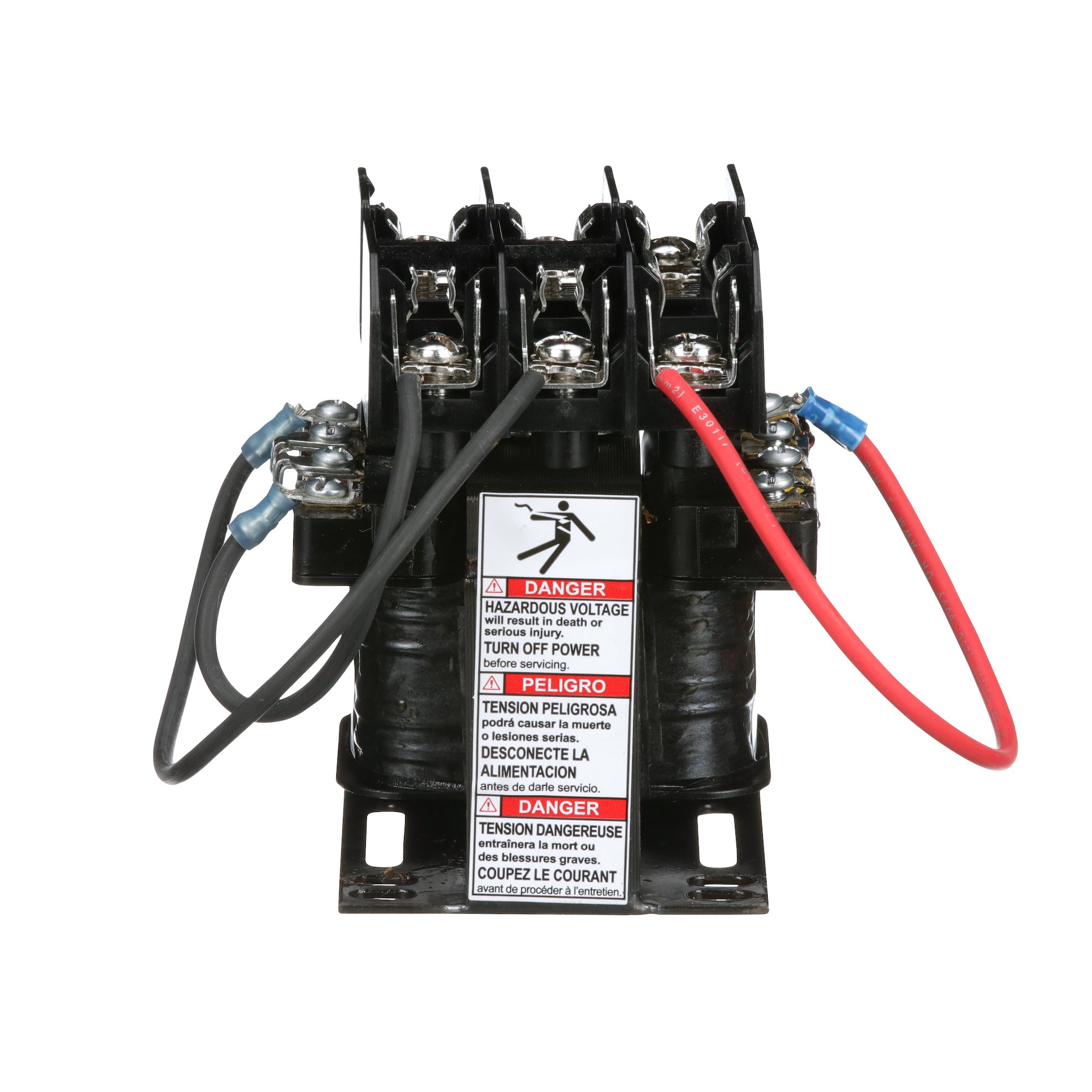

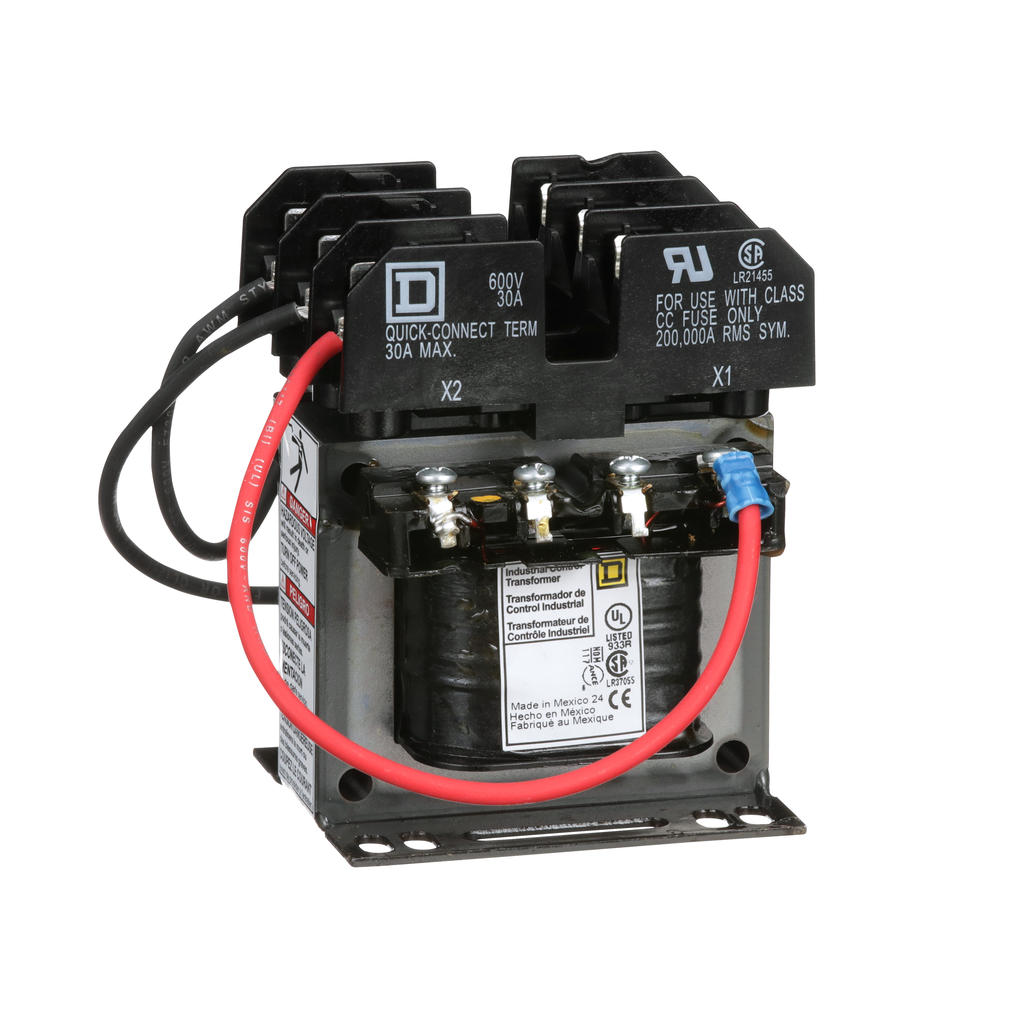

Square D 9070TF50D23 Square D 50 VA 120 x 240 VAC Primary 24 VAC Secondary 1-Phase Control Transformer

Product Description

Square D offers the 9070TF50D23 control transformer designed for industrial applications. This transformer supports a power rating of 50 VA and is suitable for one-phase operations. It features a primary voltage of 120 x 240 volts and a secondary voltage of twenty-four volts. The product includes factory-installed overcurrent protection fuse blocks to accommodate various overcurrent needs for panel builders and equipment manufacturers.

• Convenient pre-wired configuration saves installation space.
• Meets UL, CE & CSA standards for safety.
• Constructed with copper winding for efficient performance.

Product Highlights

The Square D 9070TF50D23 transformer is ideal for industrial control requirements, making it a reliable choice for trade professionals. Its compact design includes screw clamp terminal connections, facilitating straightforward connections and installations.

Product Information

Standard Information

• Catalog Number: 9070TF50D23
• Brand: Square D

Technical Specifications

• Manufacturer: Schneider Electric
• Primary Voltage: 120 V
• Secondary Voltage: 24 V
• Power Rating: 50 VA
• Number of Phases: 1 Phase
• Enclosure: Not Rated (Open Device)
• Fuse Type: 10.3 x 38 mm CC Top
• Country of Origin: Mexico
• Temperature Rating: 55 Degrees Celsius
