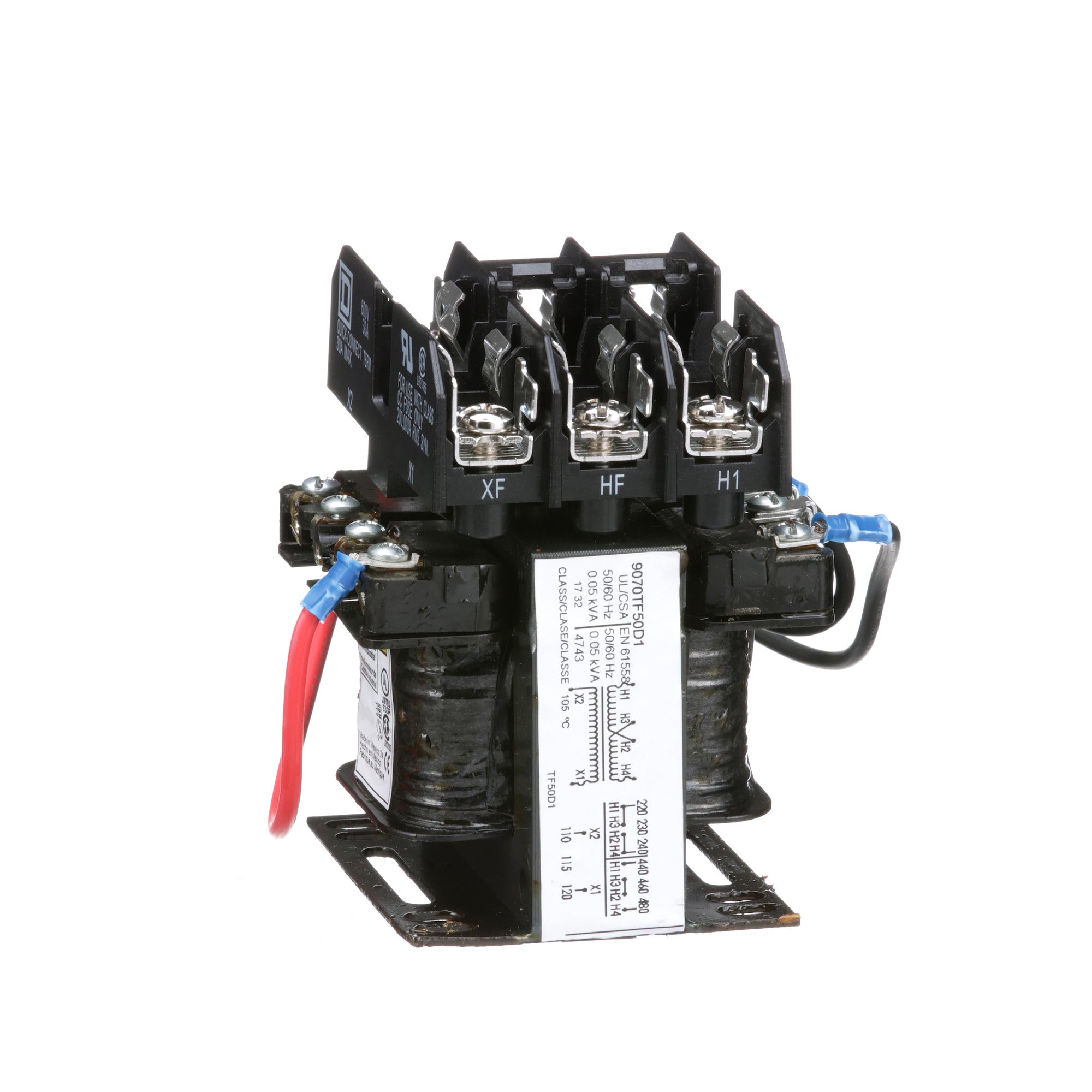

Square D 9070TF50D1 Control Transformer 50 VA Primary 240 x 480 VAC Secondary 120 VAC 1-Phase

Product Description

The Square D 9070TF50D1 control transformer is crafted to ensure optimum performance in industrial settings. Engineered by Schneider Electric, this transformer comes with a primary voltage of 240 x 480 VAC and transforms it down to 120 VAC secondary voltage, making it suitable for a wide range of industrial applications.

• Equipped with copper winding for durability.
• Includes top mounted fuse blocks for enhanced safety.
• Complies with UL, CSA, and CE standards ensuring reliability and safety.

Product Highlights

This transformer features a compact design and low impedance windings, providing exceptional voltage regulation and capability to handle high inrush currents from contactors and relays. It is also notable for its straightforward mounting process due to the pre-wired and mounted fuse blocks.

Product Information

Standard Information

• Brand: Square D by Schneider Electric
• MPN: 9070TF50D1
• Type: Industrial Control Transformer
• Phase: 1-Phase

Technical Specifications

• Primary Voltage: 240 x 480 VAC
• Secondary Voltage: 120 VAC
• Power Rating: 50 VA
• Temperature Rise: 55°C
• Dimensions: Height: 4 inches, Width: 3 inches, Depth: 3.09 inches
• Weight: Approximately 3.13 lbs
• Material: Copper Winding
