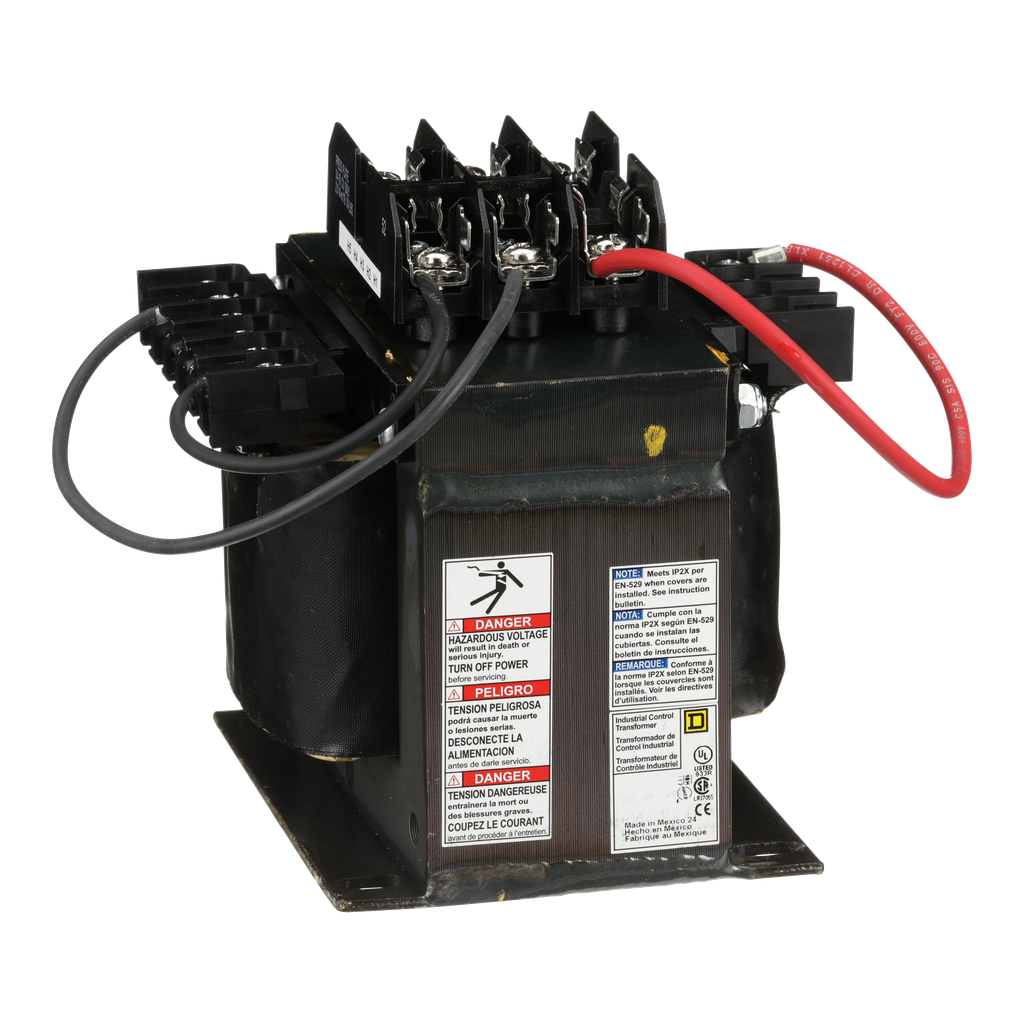

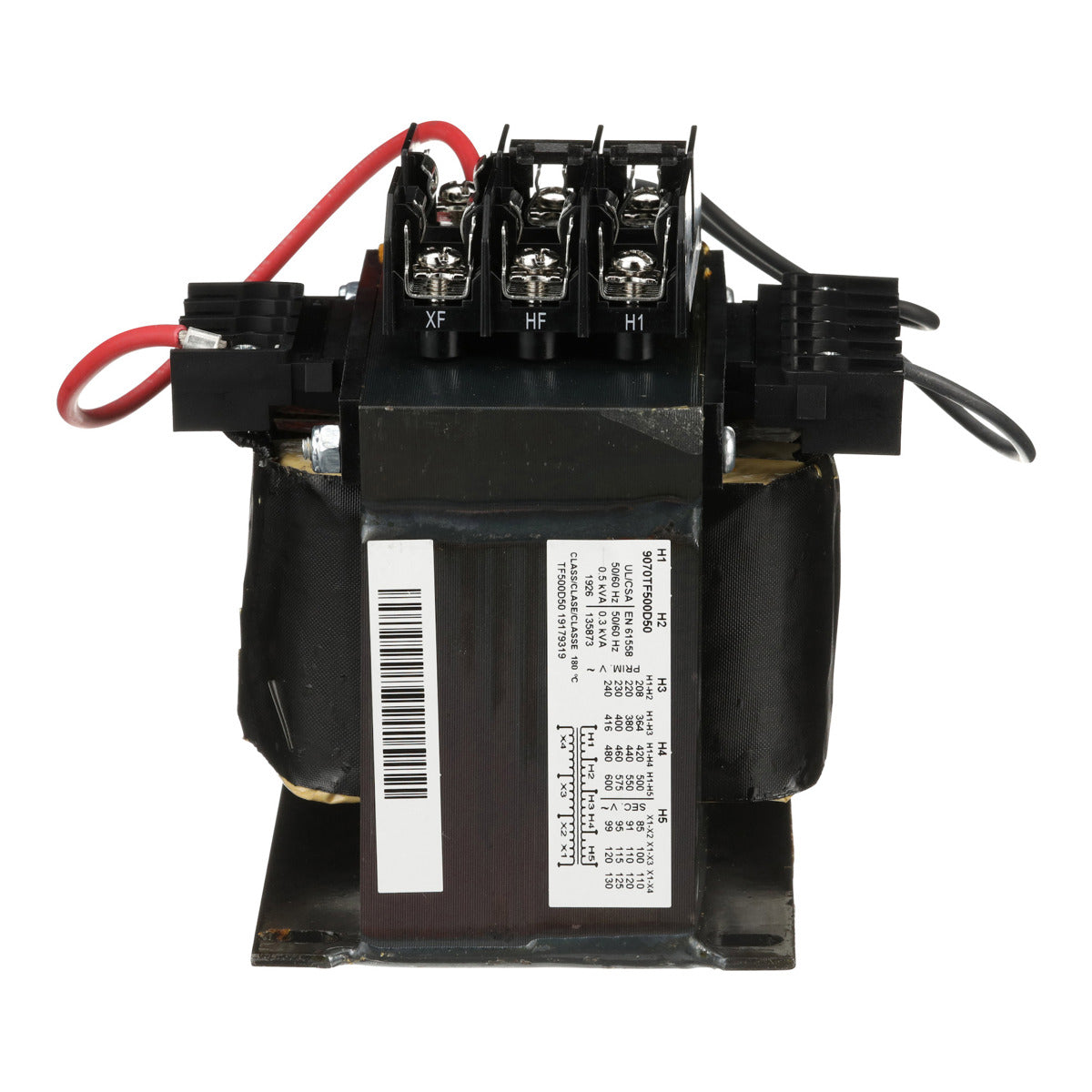

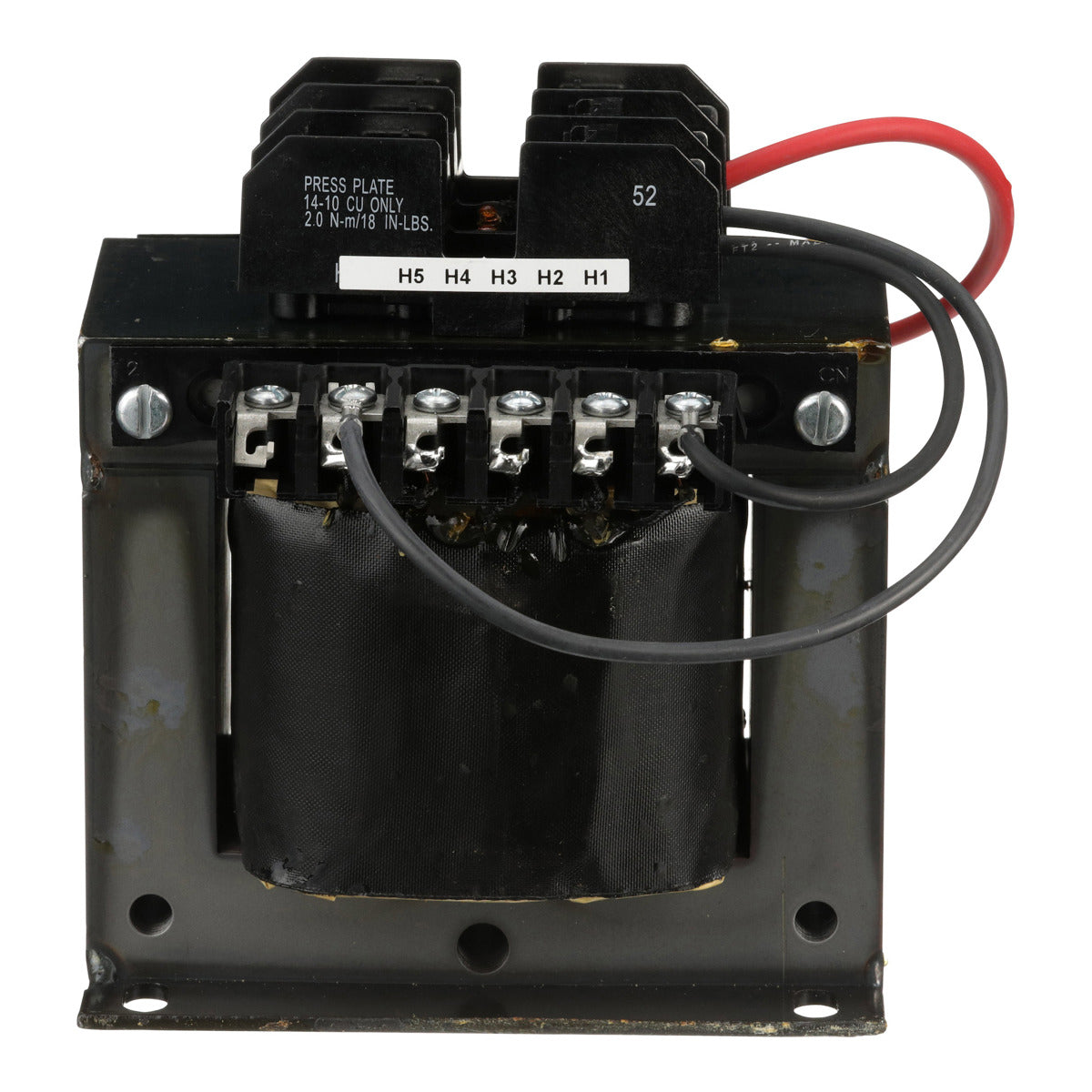

Square D 9070TF500D50 Control Transformer 500 VA 240/416/480/600 VAC

Product Description

The Square D 9070TF500D50 is a control transformer with a power rating of 500 VA. It is suitable for various industrial applications. This transformer features factory-installed fuse blocks, including two primary and one secondary fuse block. It is designed for use with rejection-type class CC fuses on the primary side, while the secondary side accepts non-rejection-type midget fuses. The primary voltage ranges from 240 to 600 VAC, while the secondary voltage operates at 85/104/115 VAC. With a temperature rise of 115 degrees Celsius, this transformer maintains safety standards and optimal performance.

• Power rating: 500 VA
• Dimensions: 3.2 inches high, 3.75 inches wide, and 3.59 inches deep
• Certifications: Complies with UL, CE, and CSA standards

Product Highlights

This control transformer supports easy installation and maintenance, making it an ideal choice for HVAC and electrical professionals.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9070TF500D50
• Voltage: 240/416/480/600 VAC (Primary), 85/104/115 VAC (Secondary)
• Temperature Rise: 115 degrees C
• Number of Phases: 1 Phase
• Winding Material: Copper
• Connection Type: Screw clamp terminals
• Country of Origin: Mexico
• Warranty: 18 months
