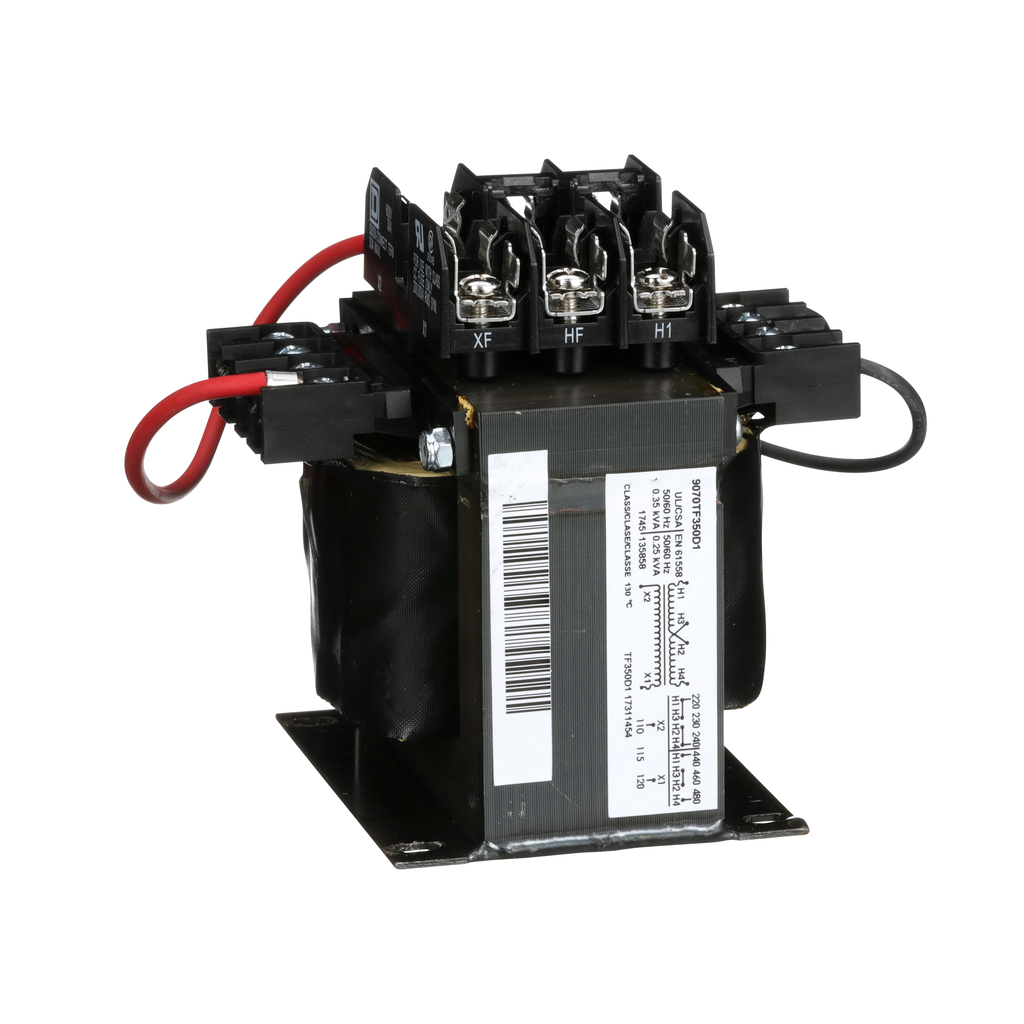

Square D 9070TF350D1 350 VA 240 x 480 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

Product Description

The Square D 9070TF350D1 is a 350 VA control transformer designed for industrial applications. It converts 240 to 480 volts down to 120 volts, making it suitable for various electrical systems. This transformer features a single-phase design with a compact footprint, ensuring ease of installation in tight spaces.

• Power Rating: 350 VA
• Primary Voltage: 240 x 480 VAC
• Secondary Voltage: 120 VAC

Product Highlights

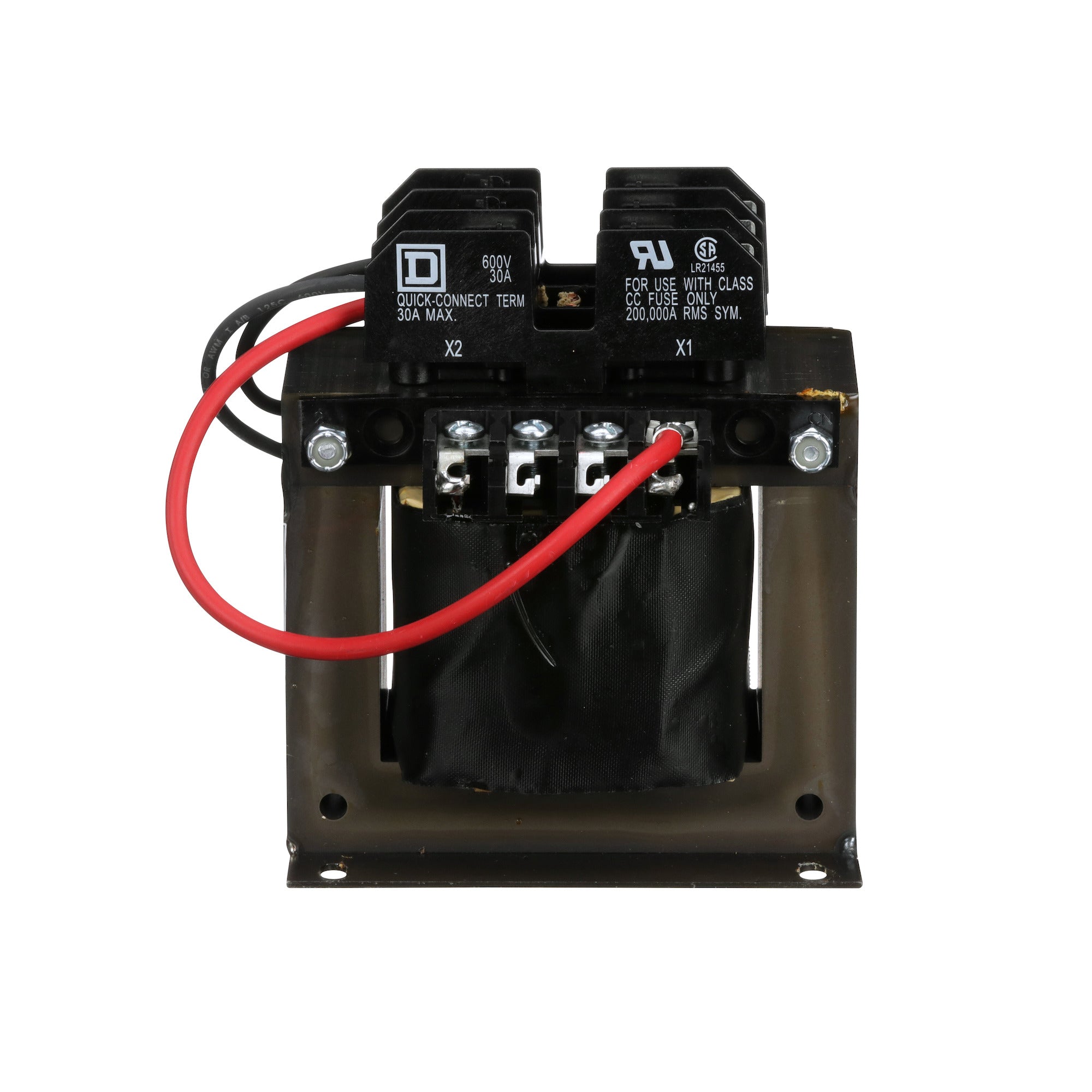

This transformer is equipped with factory-installed overcurrent protection fuse blocks, consisting of two primary and one secondary fuse block. The design maximizes available space by integrating the fuse blocks onto the transformer itself.

Product Information

Standard Information

• Brand: Square D
• MPN: 9070TF350D1

Technical Specifications

• Dimensions: 5.13 inches (H) x 4.5 inches (W) x 5.11 inches (D)
• Material: Copper winding
• Number of Phases: 1 Phase
• Temperature Rating: 80 degrees C
• Country of Origin: Mexico
• Warranty: 18 months
