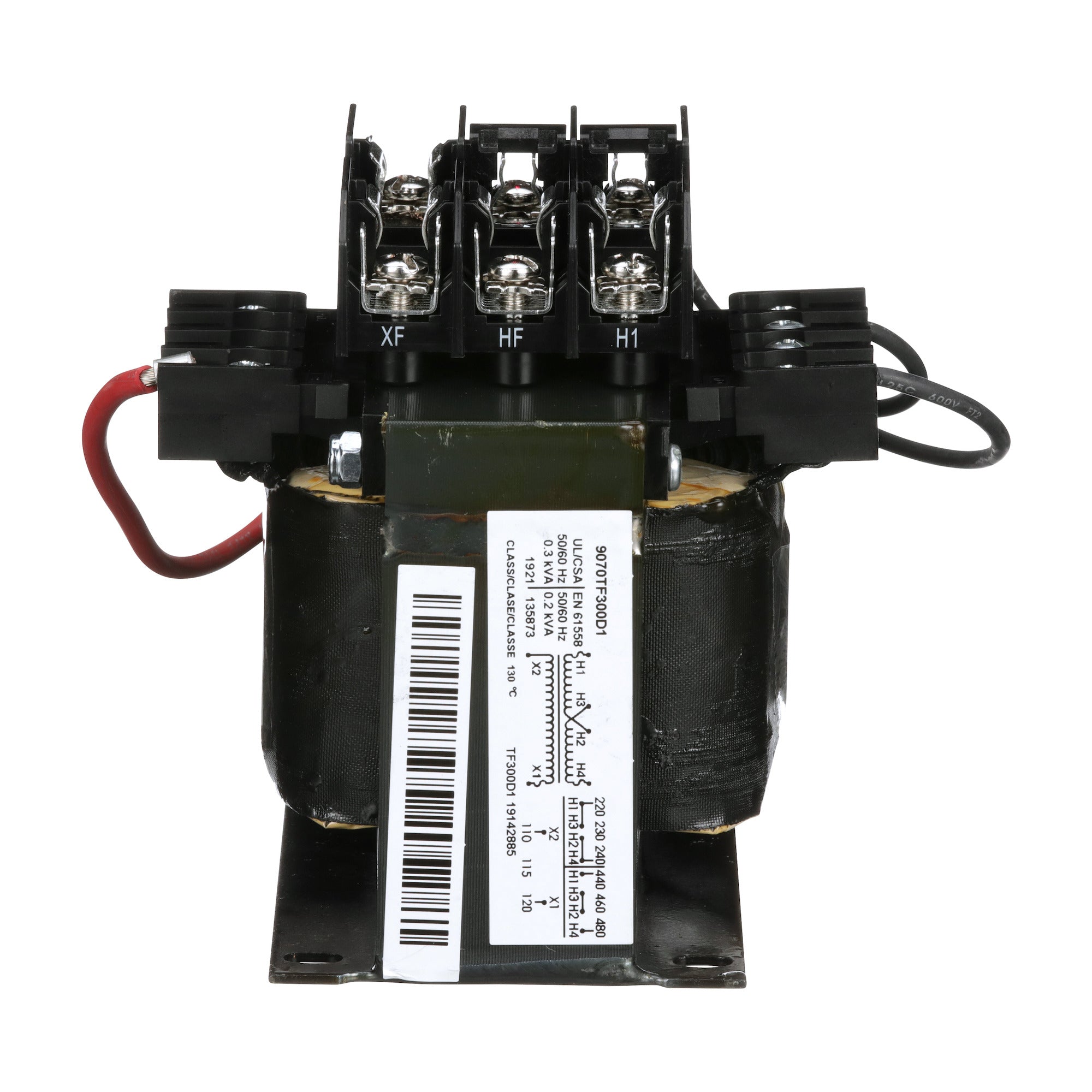

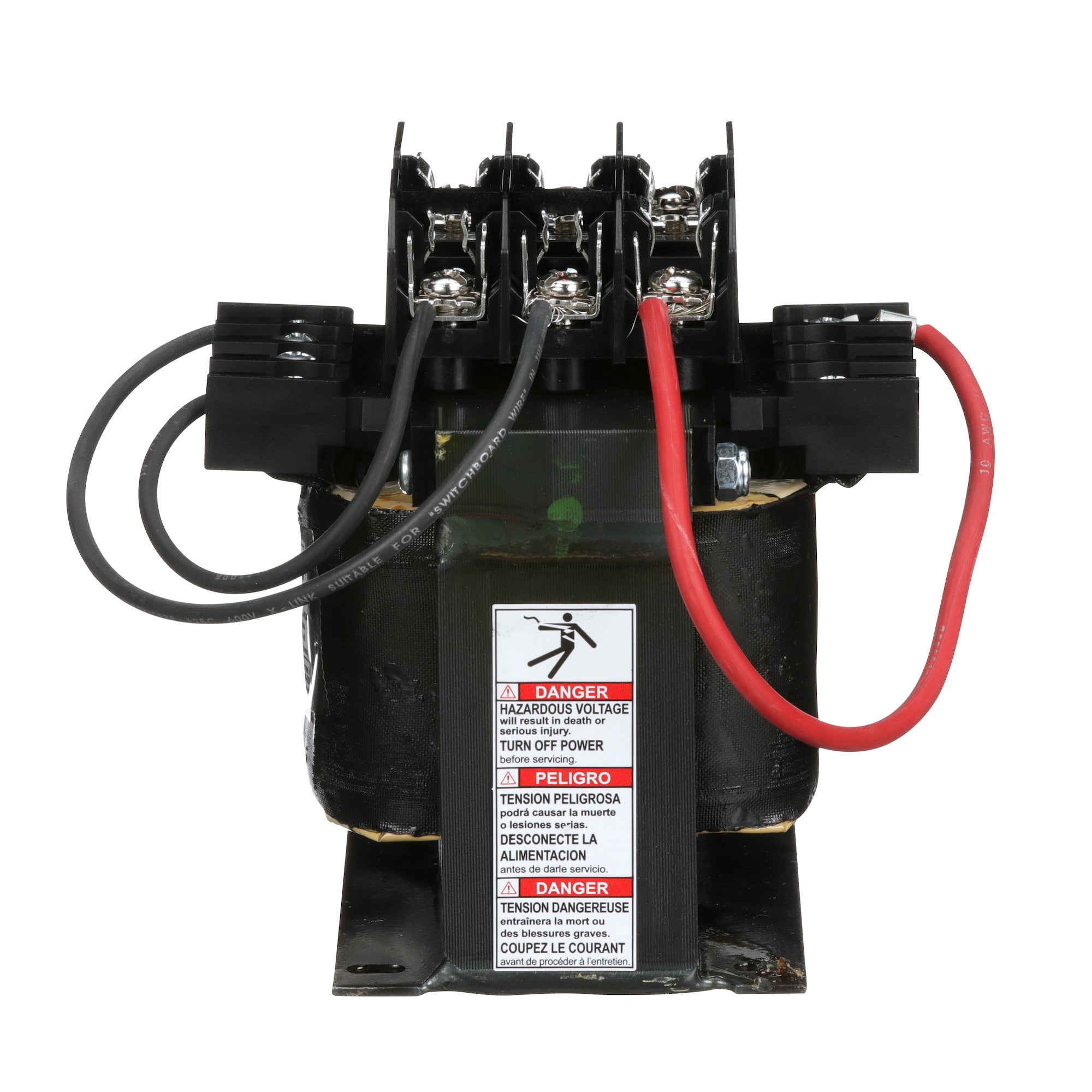

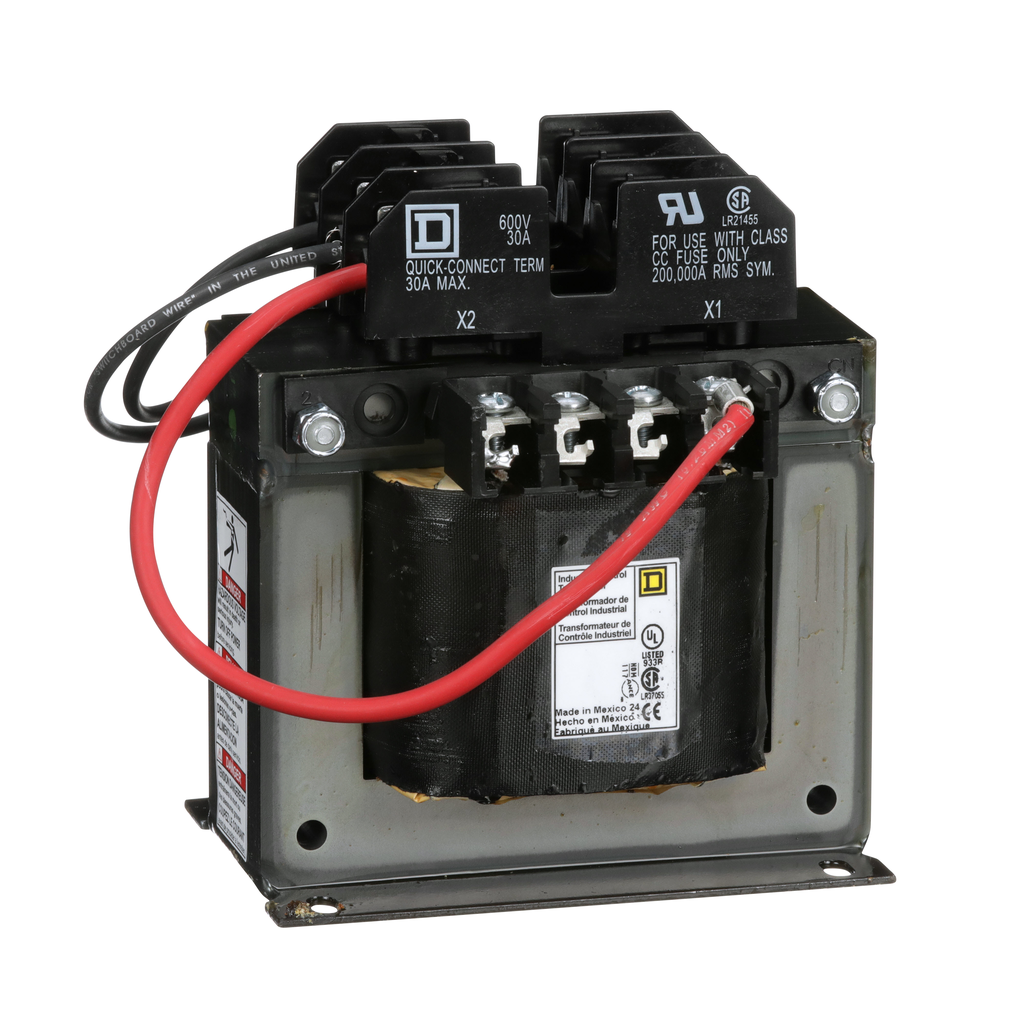

Square D 9070TF300D1 300 VA 240 x 480 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

Product Description

The Square D 9070TF300D1 is a control transformer with a power rating of 300 VA. It features a primary voltage of two hundred forty to four hundred eighty VAC and a secondary voltage of one hundred ten VAC. This one-phase industrial control transformer is designed to meet the standards of UL, CE, and CSA.

• Includes factory installed overcurrent protection with fuse blocks.
• Compact design allows for efficient use of space.
• Made with copper windings for reliability.

Product Highlights

This transformer is suitable for various applications, including panel builders and machinery OEMs. It has a footprint similar to the Type T and Type EO transformers, making it easier to integrate into existing setups.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Power Rating: 300 VA
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 110 V
• Number of Phases: 1 Phase
• Dimensions: 5.13 inches (H) x 4.5 inches (W) x 4.74 inches (D)
• Material: Copper winding
• Connection Type: Screw clamp terminals
• Country of Origin: Mexico
• Warranty Length: 18 months
