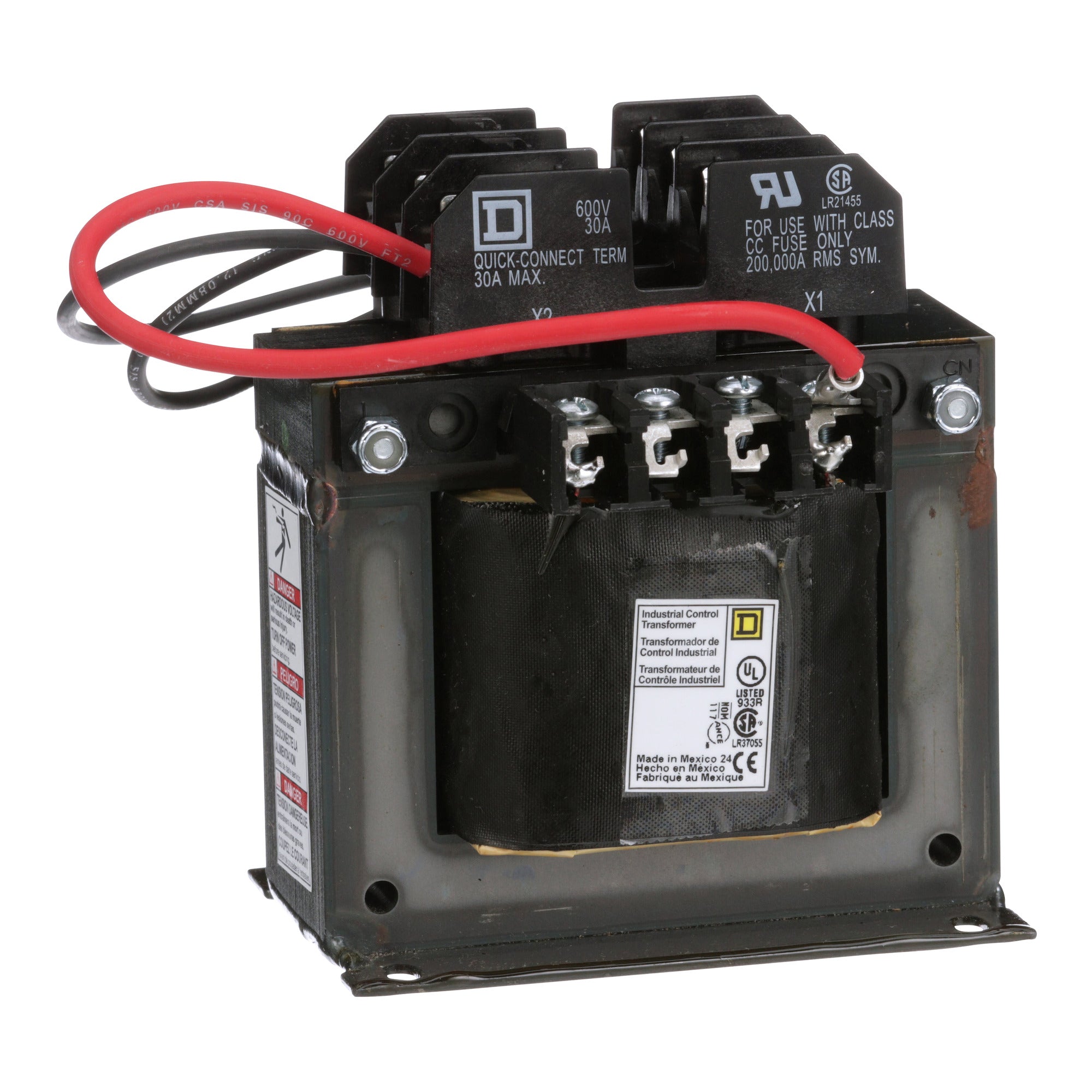

Square D 9070TF250D20 Industrial Control Transformer, Type TF, 1 Phase, 250VA, 208/230/460V Primary, 115V Secondary

Product Description

Square D 9070TF250D20 is an industrial control transformer designed for various applications. This transformer has a power rating of two hundred fifty volt-amperes (VA) and operates with a primary voltage of two hundred eight, two hundred thirty, or four hundred sixty volts and a secondary voltage of one hundred fifteen volts. The transformer is compliant with UL, CE, and CSA standards ensuring safety and reliability.

• Type TF design with factory-installed overcurrent protection fuse blocks
• Dimensions: five point thirteen inches high, four point five inches wide, four point seventy-four inches deep
• Constructed with copper windings

Product Highlights

This transformer is ideal for panel builders and machinery OEMs. Its compact design helps save space by integrating fuse blocks directly into the unit, making installation and maintenance simpler.

Product Information

Standard Information

• Catalog Number: 9070TF250D20
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Square D
• Phase: 1
• VA Rating: 250
• Primary Voltage: 208/230/460V
• Secondary Voltage: 115V
• Compliance: UL, CE, CSA
• Warranty Description: Contractual Warranty: 18 months
• Country of Origin: Mexico
