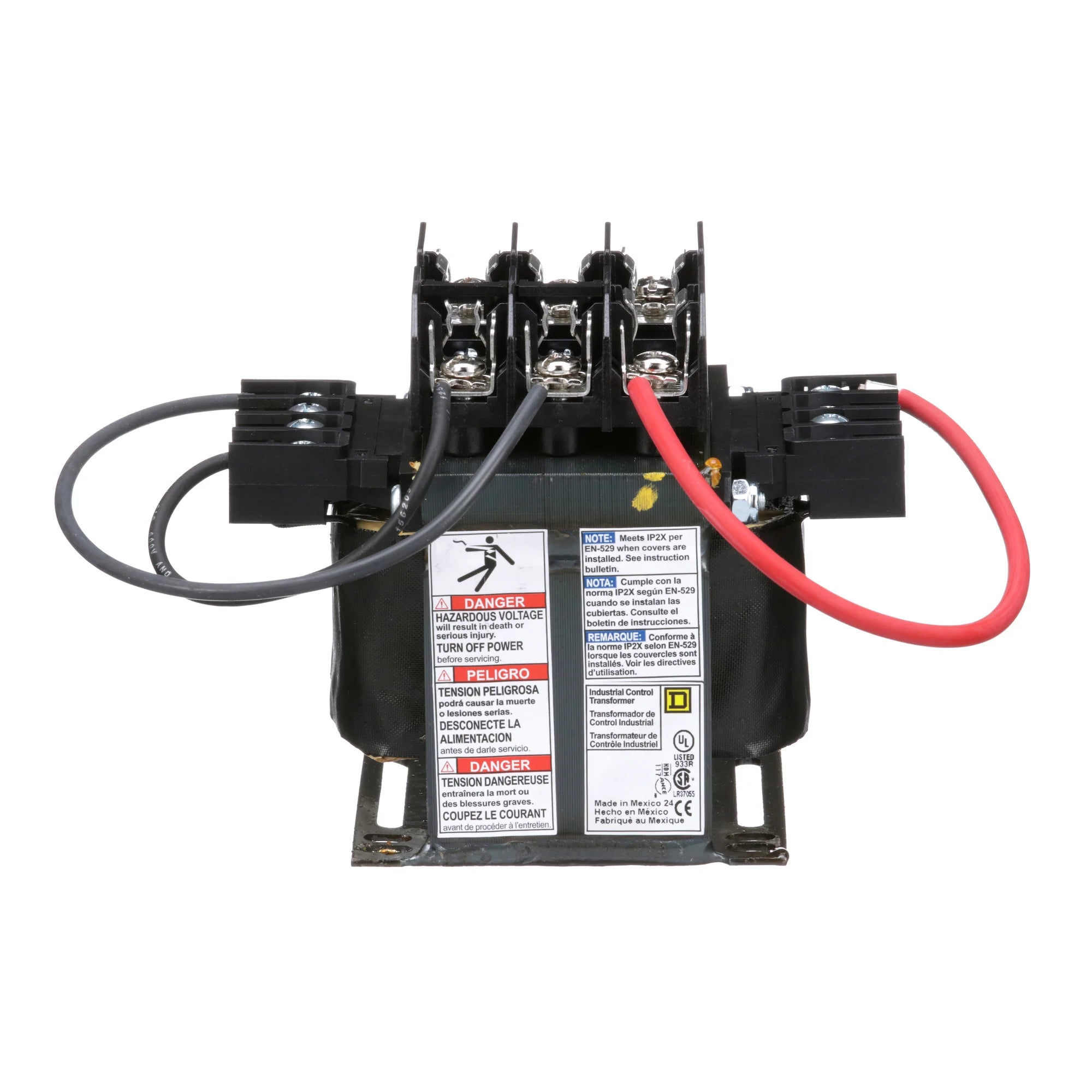

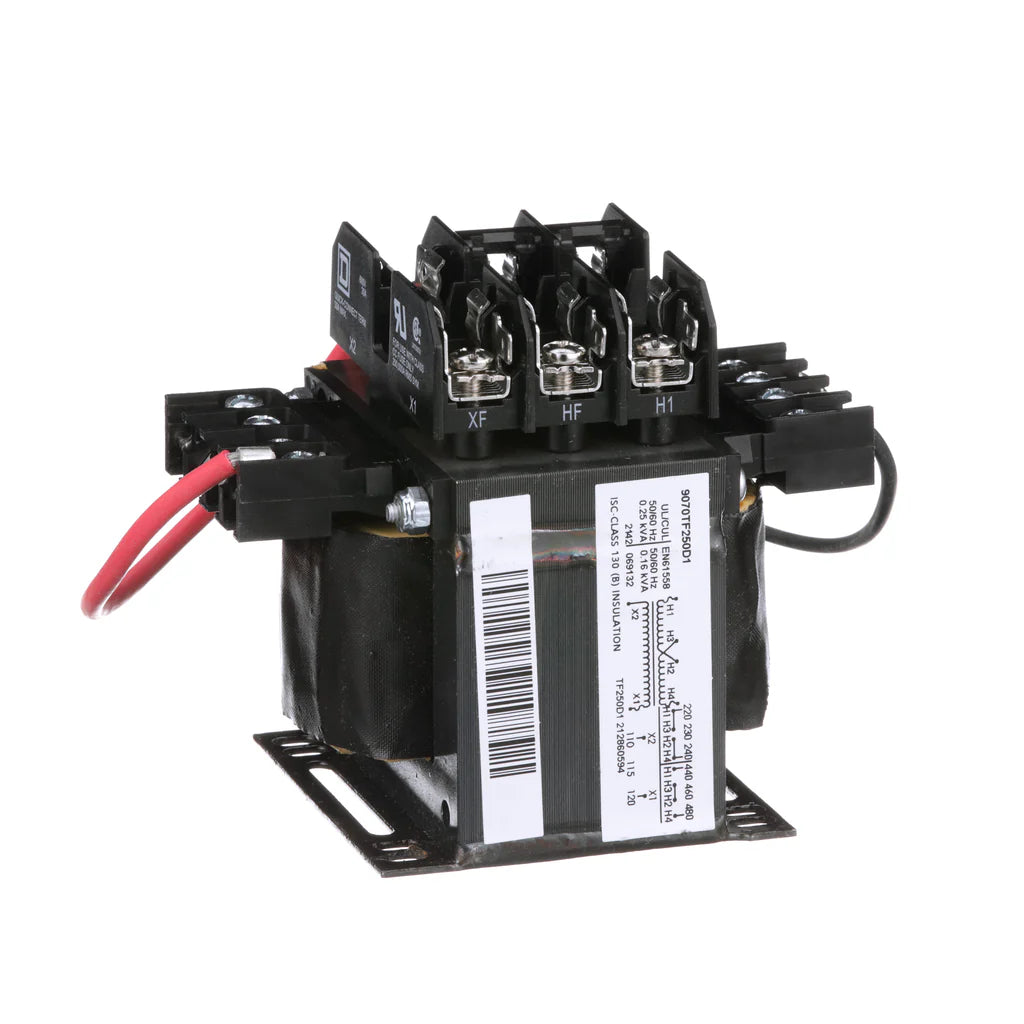

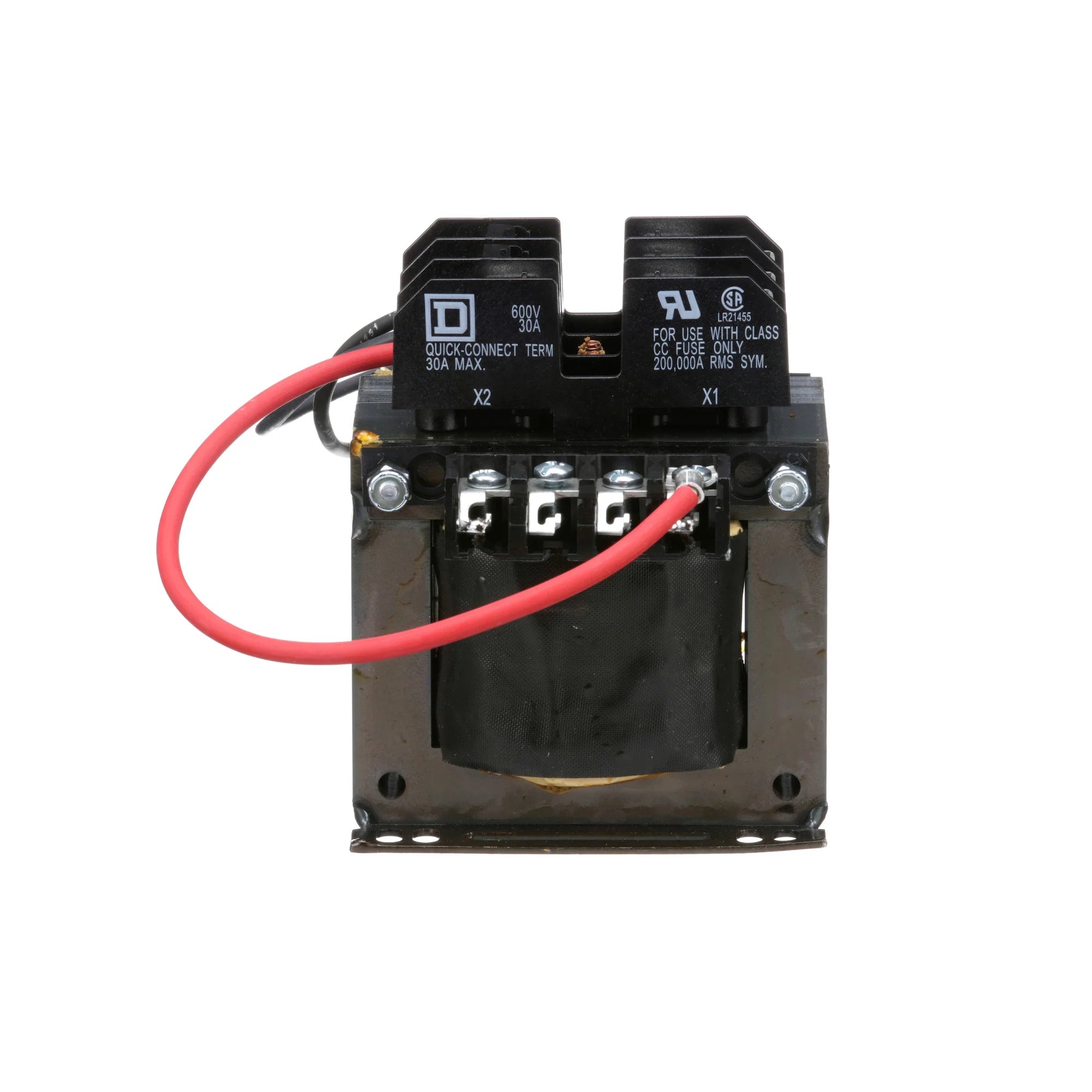

Square D 9070TF250D1 250 VA 240 x 480 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

Product Description

Square D 9070TF250D1 is a control transformer that meets industry standards for design and performance. It features low impedance windings for effective voltage regulation. This transformer is suited for controlling contactors, starters, solenoids, and relays. This transformer is also ideal for panel builders and machinery OEMs with its versatile design options.

• Power rating of 250 VA
• Primary voltage of 240 x 480 VAC
• Secondary voltage of 120 VAC, single-phase

Product Highlights

This control transformer integrates two primary fuse blocks and one secondary fuse block, addressing overcurrent needs efficiently. The wiring is managed with pre-mounted fuse blocks that save space. It adheres to UL, CSA, and CE standards, ensuring safety and reliability.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9070TF250D1
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120 V
• Power Rating: 250 VA
• Phases: 1 Phase
• Temperature Rating: 80 Degrees C
• Fuse Type: CC, 0.41 x 1.50 in
• Dimensions: 4.5 in (H) x 3.75 in (W) x 5.3 in (D)
• Winding Material: Copper
• Country of Origin: Mexico
• Warranty: 18 months
