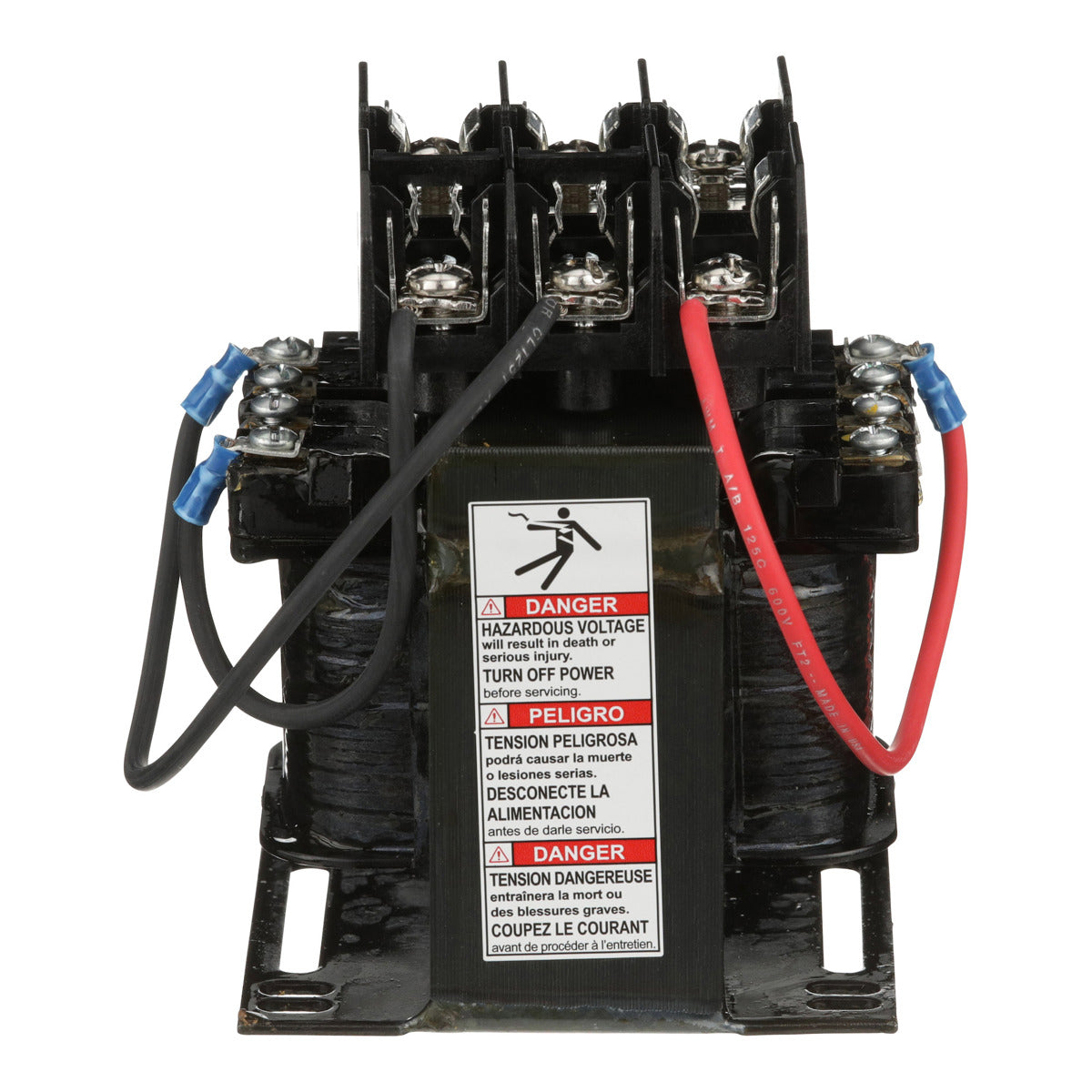

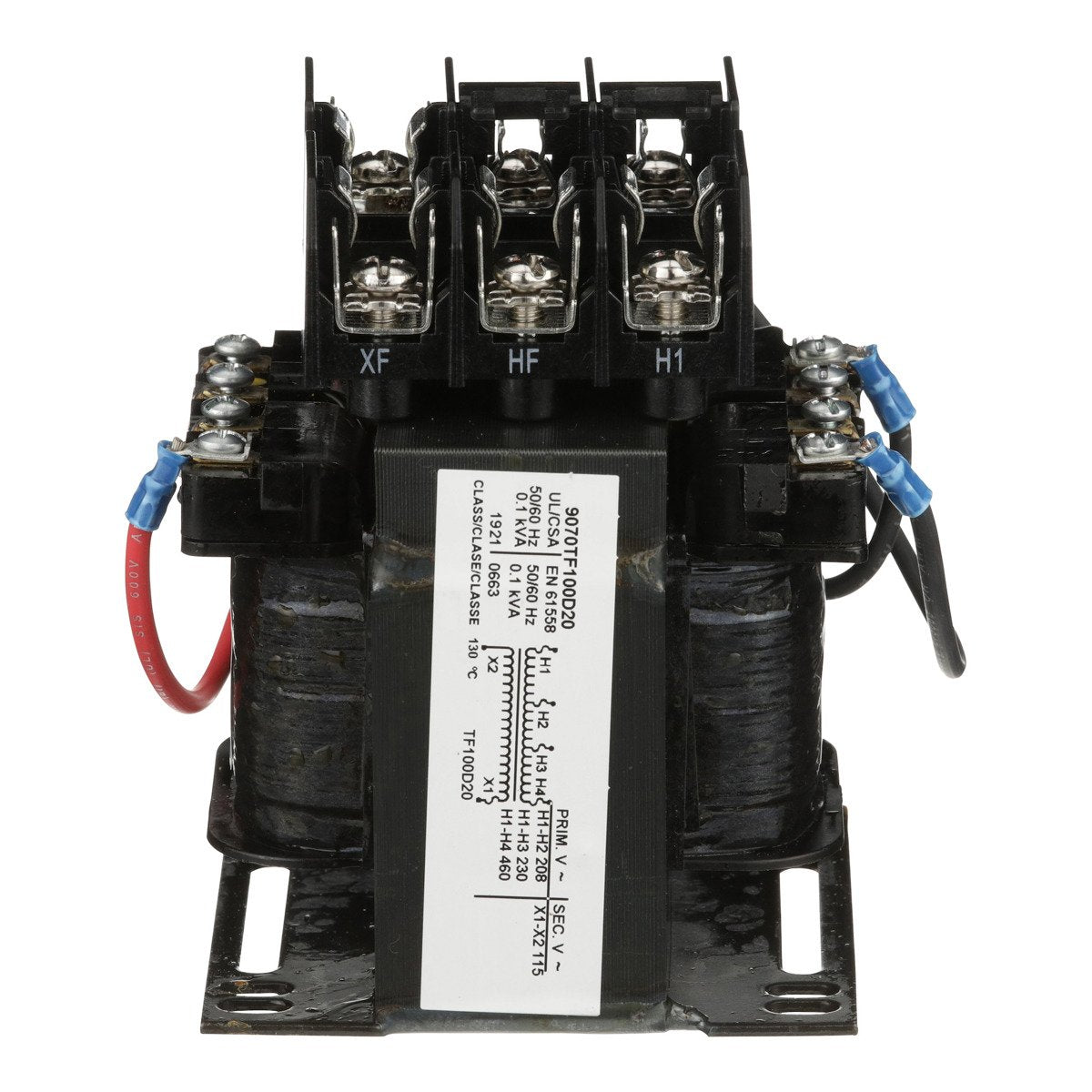

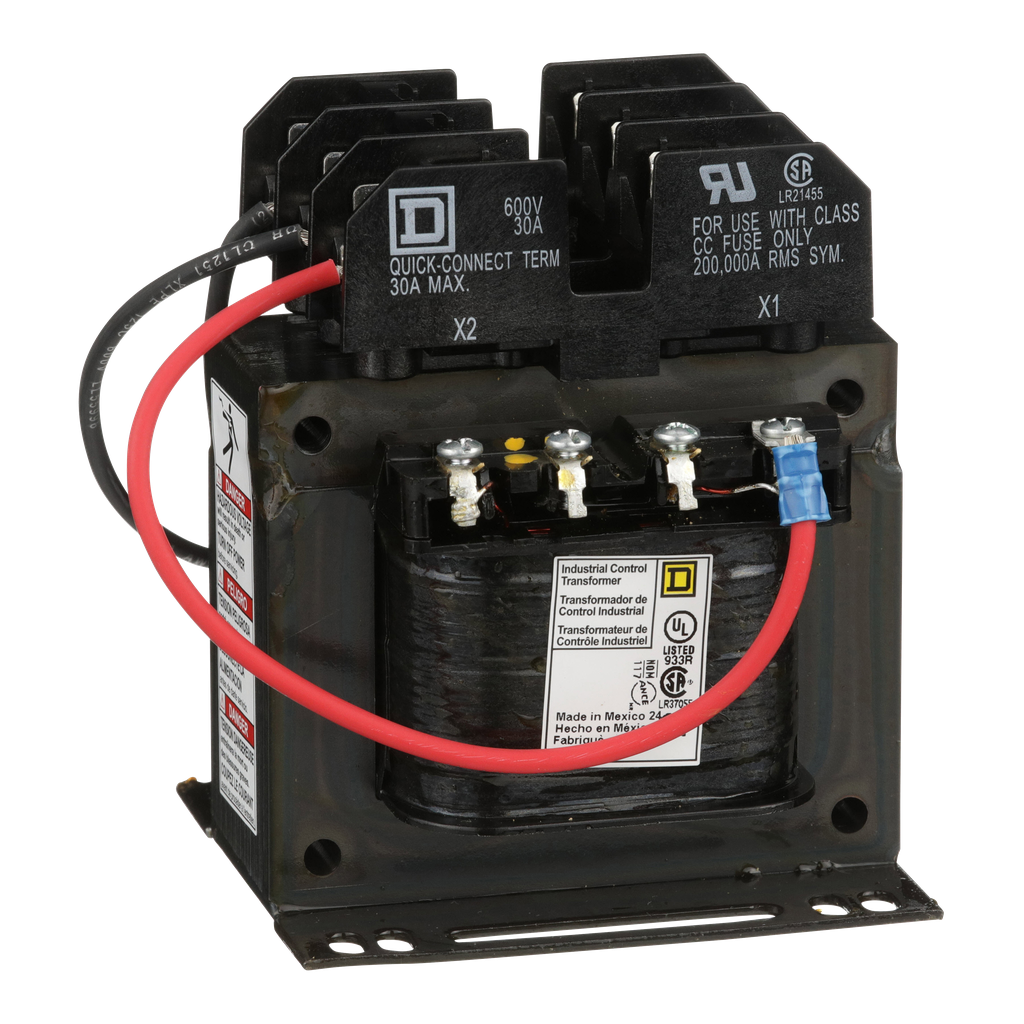

Square D 9070TF100D20 Control Transformer 100 VA 208/230/460 V Primary 115 V Secondary

Product Description

The Square D 9070TF100D20 is a control transformer designed for industrial applications. This unit has a power rating of one hundred volt-amperes. It operates on a primary voltage of two hundred eight, two hundred thirty, or four hundred sixty volts, and provides a secondary voltage of one hundred fifteen volts.

• Single-phase transformer with a power rating of 100 VA
• Includes factory-installed fuse blocks for improved safety
• Compatible with fingersafe cover FSC2

Product Highlights

This transformer features screw clamp terminals and copper windings for reliable performance. It meets UL, CE, and CSA standards for safety.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9070TF100D20
• Power Rating: 100 VA
• Primary Voltage: 208/230/460 V
• Secondary Voltage: 115 V
• Number of Phases: 1 Phase
• Temperature Rise: 55 Degrees C
• Dimensions: 4.5 inches (H) x 3.75 inches (W) x 3.59 inches (D)
• Material: Copper windings
• Warranty Length: 18 months
• Country of Origin: Mexico
• Certifications: UL Listed, CSA File LR37055
