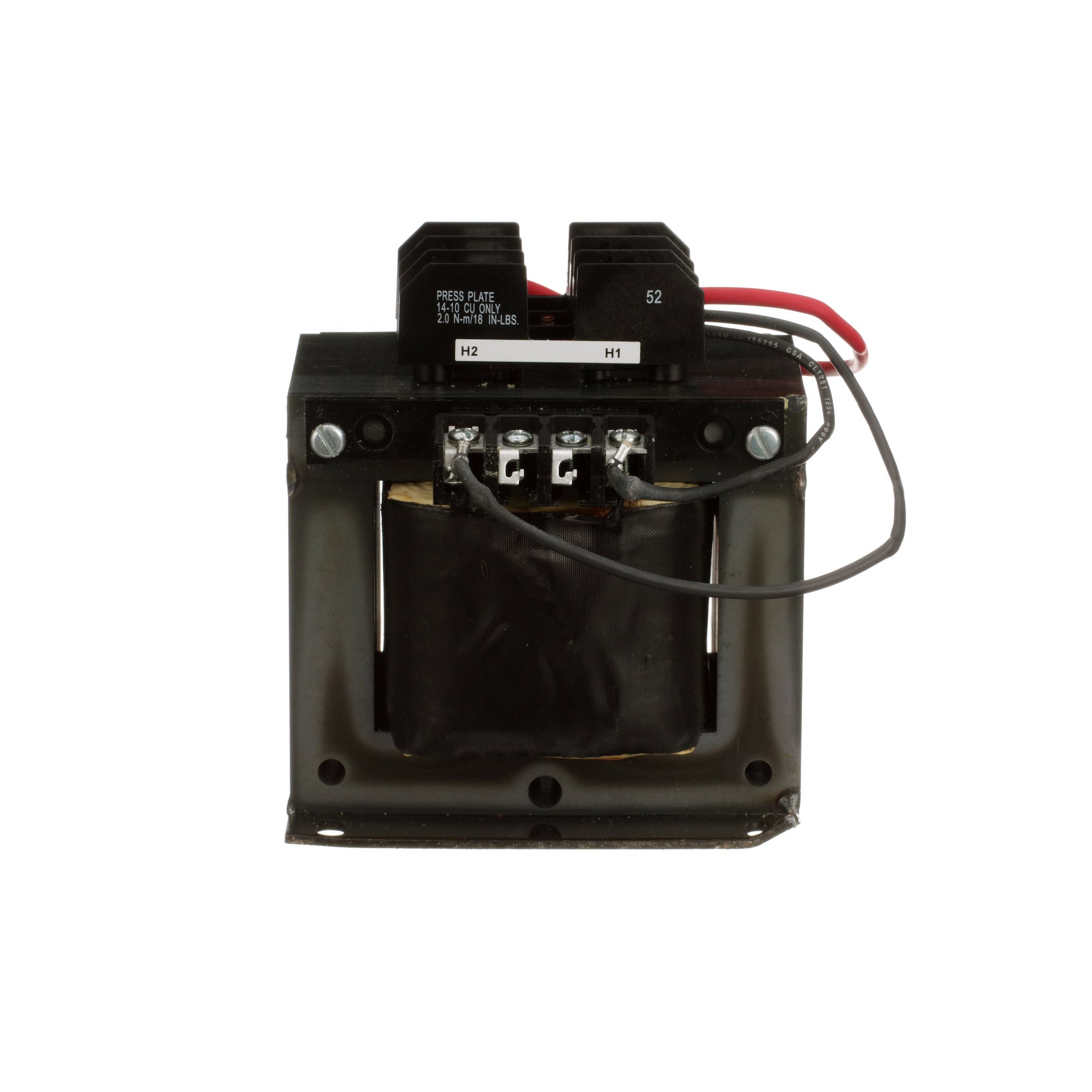

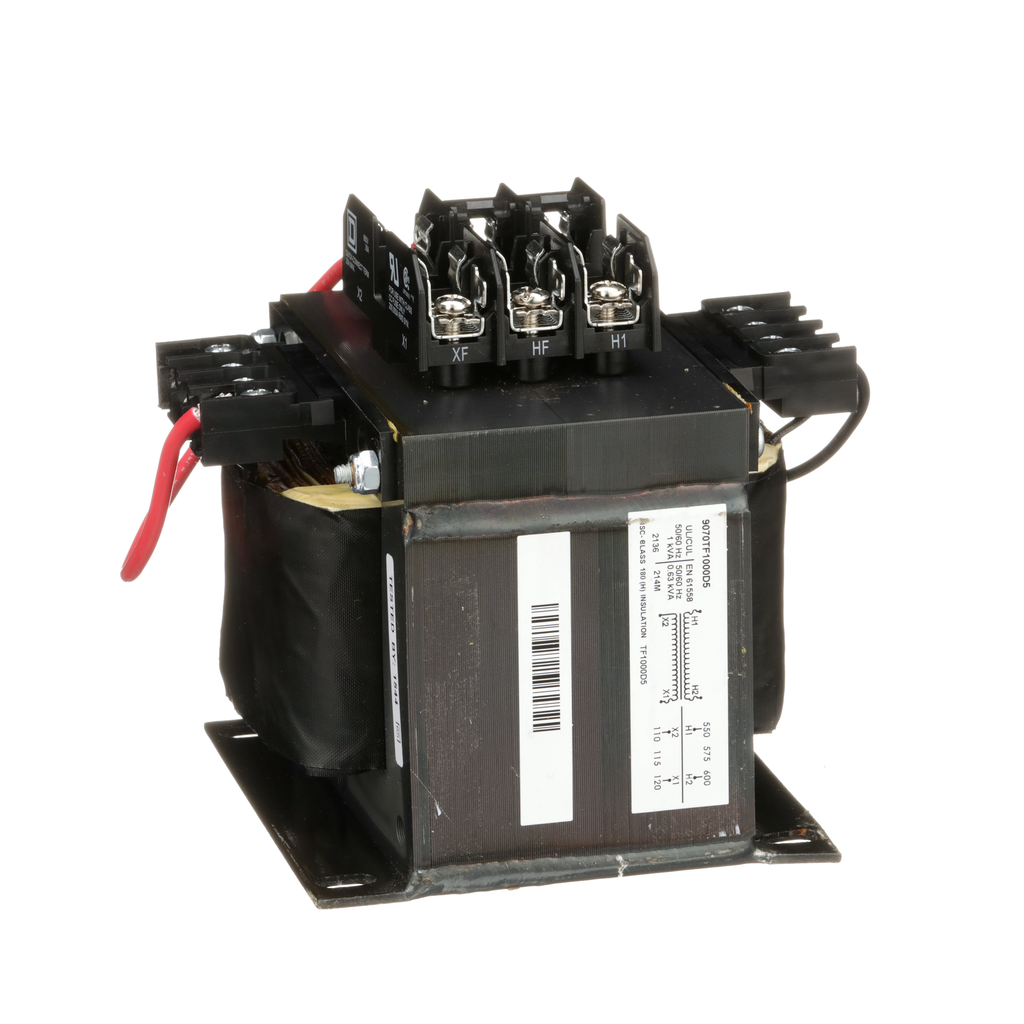

Square D 9070TF1000D5 1000 VA 600 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

Product Description

Square D 9070TF1000D5 is a control power transformer with a power rating of 1000 VA. It features a primary voltage range of six hundred to six hundred volts and a secondary voltage of one hundred and twenty volts. This model is designed with factory-installed fuse blocks, including two for the primary connections and one for the secondary. It accepts non-rejection-type midget fuses and is also available in a MultiTap version.

• Single-phase operation
• Compatible with fingersafe cover FSC2
• Compliant with UL, CE, and CSA standards

Product Highlights

This transformer is ideal for applications where compliance with UL Standard 508 and NEC 450 is required. With dimensions of five point seventy-three in height, five point twenty-five in width, and six point zero four in depth, it includes screw clamp terminal connections made of copper.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9070TF1000D5
• Voltage: 600 V; 575 V; 550 V
• Secondary Voltage: 115 V; 110 V; 120 V
• Primary Power Rating: 1000 VA
• Temperature Rating: 115 degrees C
• Dimensions: 5.73 in H x 5.25 in W x 6.04 in D
• Winding Material: Copper
• Connection Type: Screw clamp
• Warranty Length: 18 months
• Country of Origin: USA
• Certifications: UL, CE, CSA
