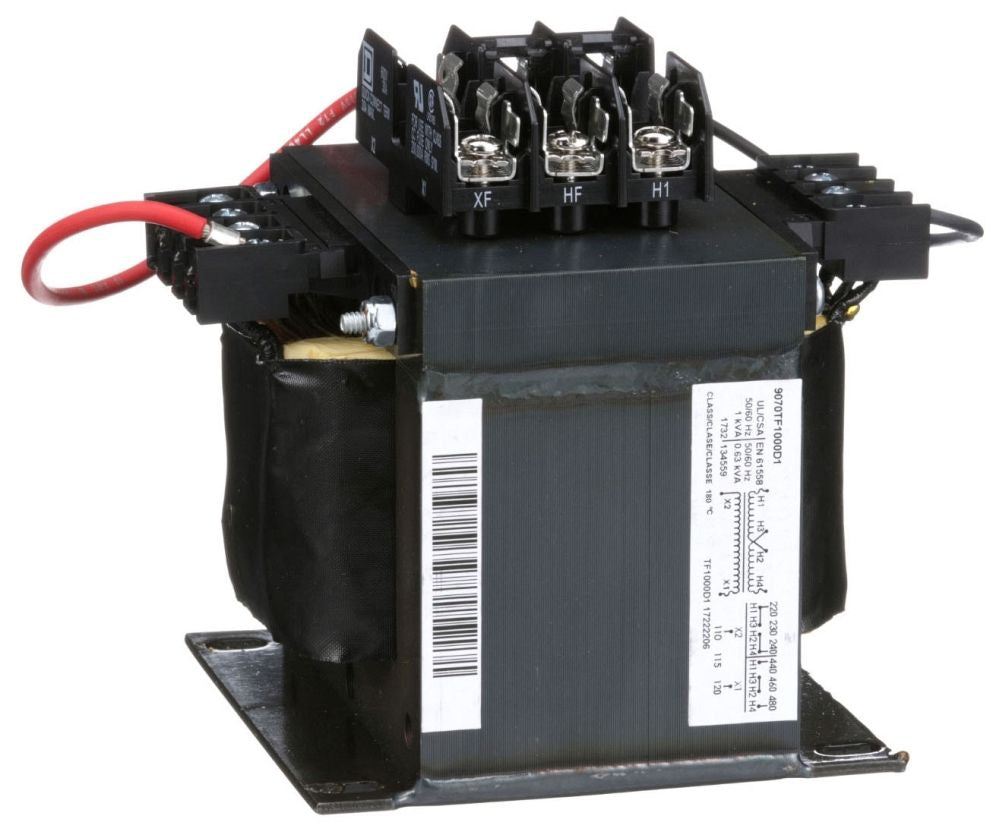

Square D 9070TF1000D1 Transformer Control 1000Va 240/480V-120V

Product Description

The Square D 9070TF1000D1 is a transformer control unit that operates at a power rating of 1000 VA. It is designed for use with primary voltages of 240 or 480 volts AC and provides secondary voltages of 120 volts. This control transformer meets the requirements of 50/60 Hertz frequency ratings.

• Size: 5.25 inches width x 6.3 inches depth x 5.8 inches height
• Approvals: UL, CSA, CE, NOM
• Terminal Type: Screw clamp

Product Highlights

This product is suitable for use in various industrial applications where voltage transformation is necessary. The unit is compliant with applicable standards such as EN 61558, ensuring safety and reliability in operation.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Model: 9070TF

Technical Specifications

• Power Rating: 1000 Volt Amp
• Primary Voltage: 240/480 Volt AC
• Secondary Voltage: 120 Volt, 115 Volt, 110 Volt
• Frequency Rating: 50/60 Hertz
• Temperature Rise: 115 Deg C
• Insulation Class: F
• Number of Phases: 1
• Winding Material: Copper
