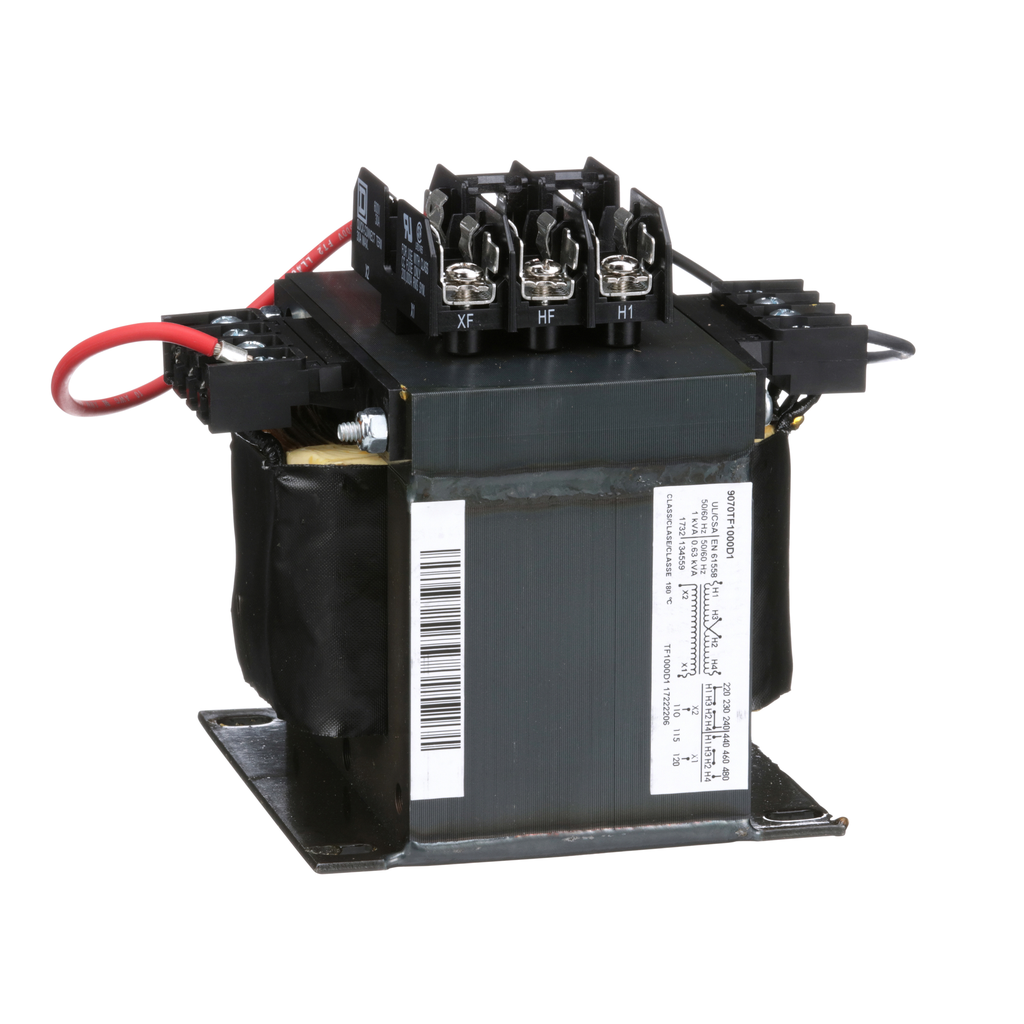

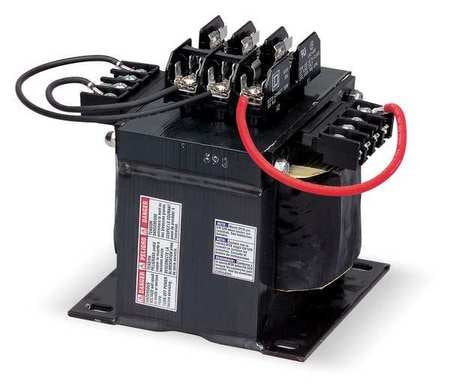

Square D 9070TF1000D1 Control Transformer 240/480V to 120V 1kVA

Product Description

The Square D 9070TF1000D1 Control Transformer by Schneider Electric is designed to deliver reliable performance in industrial and commercial settings. This industrial control transformer boasts a power rating of 1000 VA and operates with a primary voltage of 240V or 480V and a secondary voltage of 120V. Constructed with low impedance windings, it offers excellent voltage regulation, even under the high inrush currents typical of contactors, starters, solenoids, and relays.

• Reliable industrial control transformer.
• Handles primary voltages of 240V and 480V.
• Delivers a secondary voltage of 120V with a power rating of 1000 VA.

Product Highlights

This transformer features a rugged construction designed to endure the rigors of heavy machinery operation. It includes primary and secondary fuse blocks mounted on top of the unit, facilitating easy installation and maintenance. The copper windings ensure high efficiency and a long service life.

Product Information

Standard Information

• Brand: Square D
• MPN: 9070TF1000D1
• Category: Control Transformers
• Manufacturer: Schneider Electric

Technical Specifications

• Power Rating: 1000 VA
• Primary Voltage: 240V / 480V
• Secondary Voltage: 120V
• Frequency: 50 Hz / 60 Hz
• Phase: 1
• Winding Material: Copper
• Fuse Type: CC
• Dimensions: 5.8 in (H) x 5.25 in (W) x 6.3 in (D)
• Compliance: UL, CSA, CE
• Temperature Rise: 115 degrees C
• Enclosure: Open Device (Not Rated)
• Mounting Type: Foot
• Country of Origin: Mexico
• Warranty: 1 year
