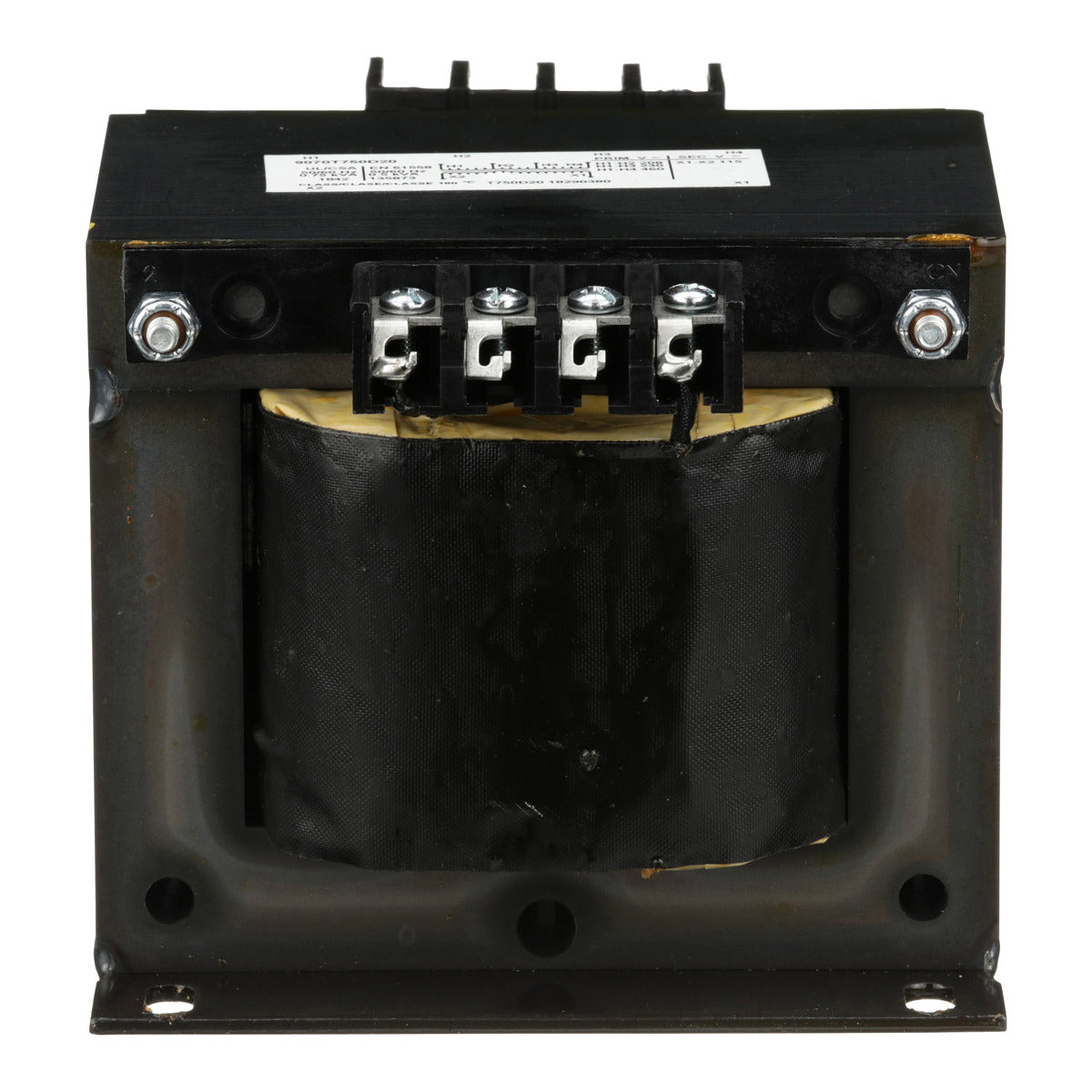

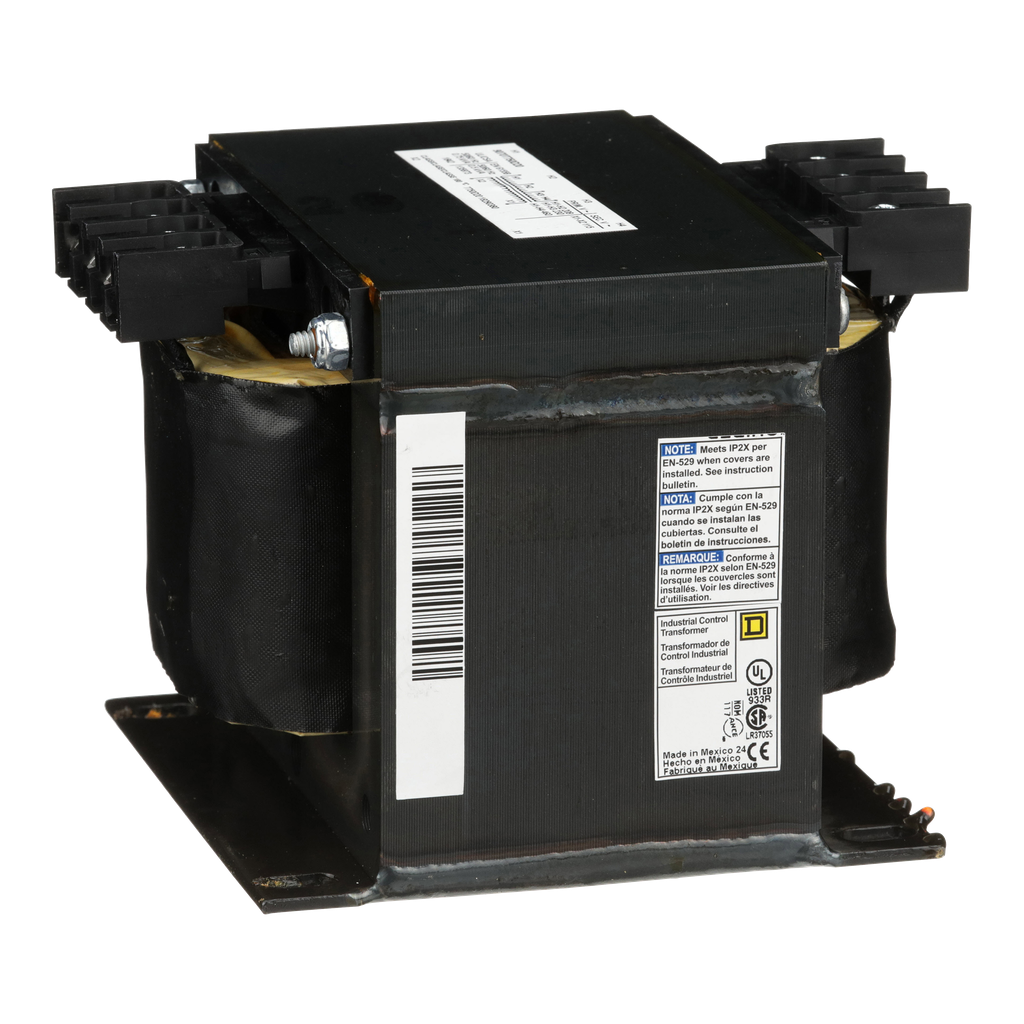

Square D 9070T750D20 Control Transformer 750 VA 1-Phase 208/230/460V to 115V

Product Description

The Square D 9070T750D20 Control Transformer is engineered for high performance in industrial settings. This single-phase transformer efficiently converts 208/230/460 VAC primary voltage to 115 VAC secondary voltage, suitable for various control applications.

• Power rating of 750 VA for robust operation.
• Leverages copper winding to enhance electrical conductivity and durability.
• Complies with UL, CE, and CSA standards, ensuring top safety and quality.

Product Highlights

Designed for industrial environments, it features low impedance windings to manage higher inrush currents effectively while maintaining stable voltage. This model also supports multiple customer installable accessories, improving adaptability and ease of use.

Product Information

Standard Information

• Brand: Square D
• Type: Industrial Control Transformer
• MPN: 9070T750D20

Technical Specifications

• Primary Voltage: 208/230/460 V
• Secondary Voltage: 115 V
• Temperature Rating: 115°C
• Phase: 1
• Material: Copper windings
• Enclosure: Open
• Dimensions: 4.51 in (H) x 5.25 in (W) x 6.3 in (D)
• Standards: UL, CE, CSA
