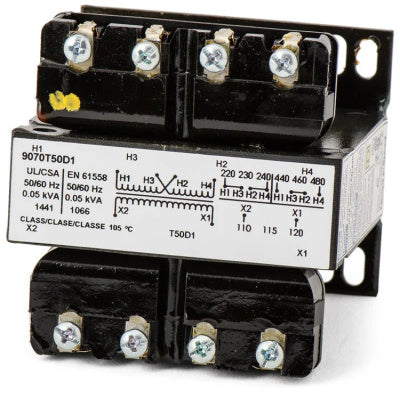

SQUARE D 9070T50D1 Industrial Control Transformer 50 VA

Product Description

The SQUARE D 9070T50D1 is an industrial control transformer designed for efficient operation at 240 or 480 Volts AC on the primary side and outputs 120 Volts AC on the secondary side. This transformer is suitable for fixed installation in cabinets, switchboards, and machine tool control circuits. It is important to note that open core transformers offer less protection compared to encapsulated options.

• Primary Voltage: 240 V-AC, 480 V-AC
• Secondary Voltage: 120 V-AC
• Mounting Type: Rack Mount

Product Highlights

This transformer supports a variety of applications in industrial settings, providing reliable voltage transformation for control systems.

Product Information

Standard Information

• Brand: Square D
• Mounting Type: Rack Mount

Technical Specifications

• Specification Met: ANSI, CSA, UL
• Input Voltage: 240 V-AC; 480 V-AC
• Output Voltage: 120 V-AC
• Phase: Single
• Power Rating: 50 VA
• Frequency: 50/60 Hz
• Enclosure Finish: Epoxy Resin Varnish
• Temperature Rise: 55 °C
• Overall Depth: 3.09 inches
• Overall Height: 2.58 inches
• Overall Width: 3 inches
