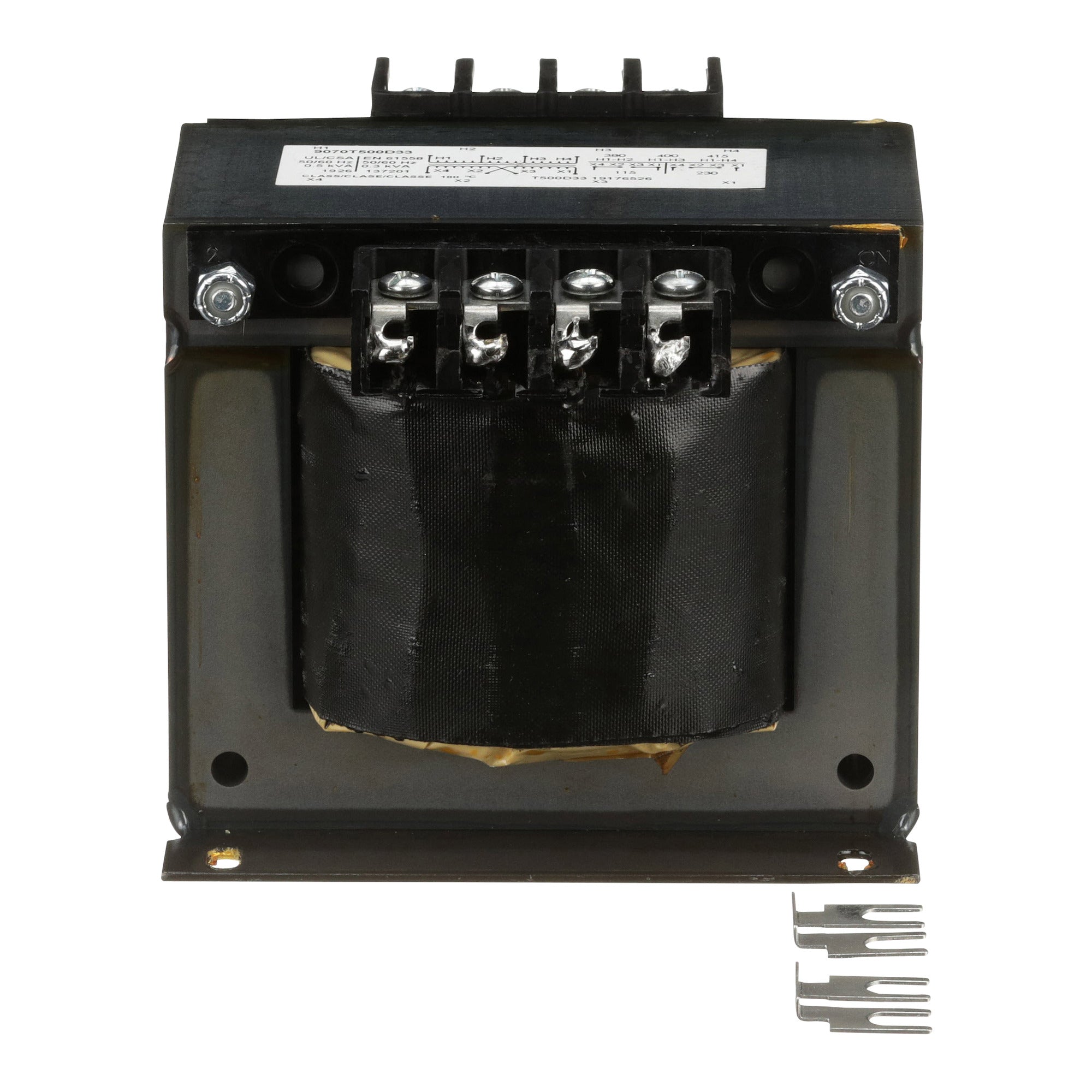

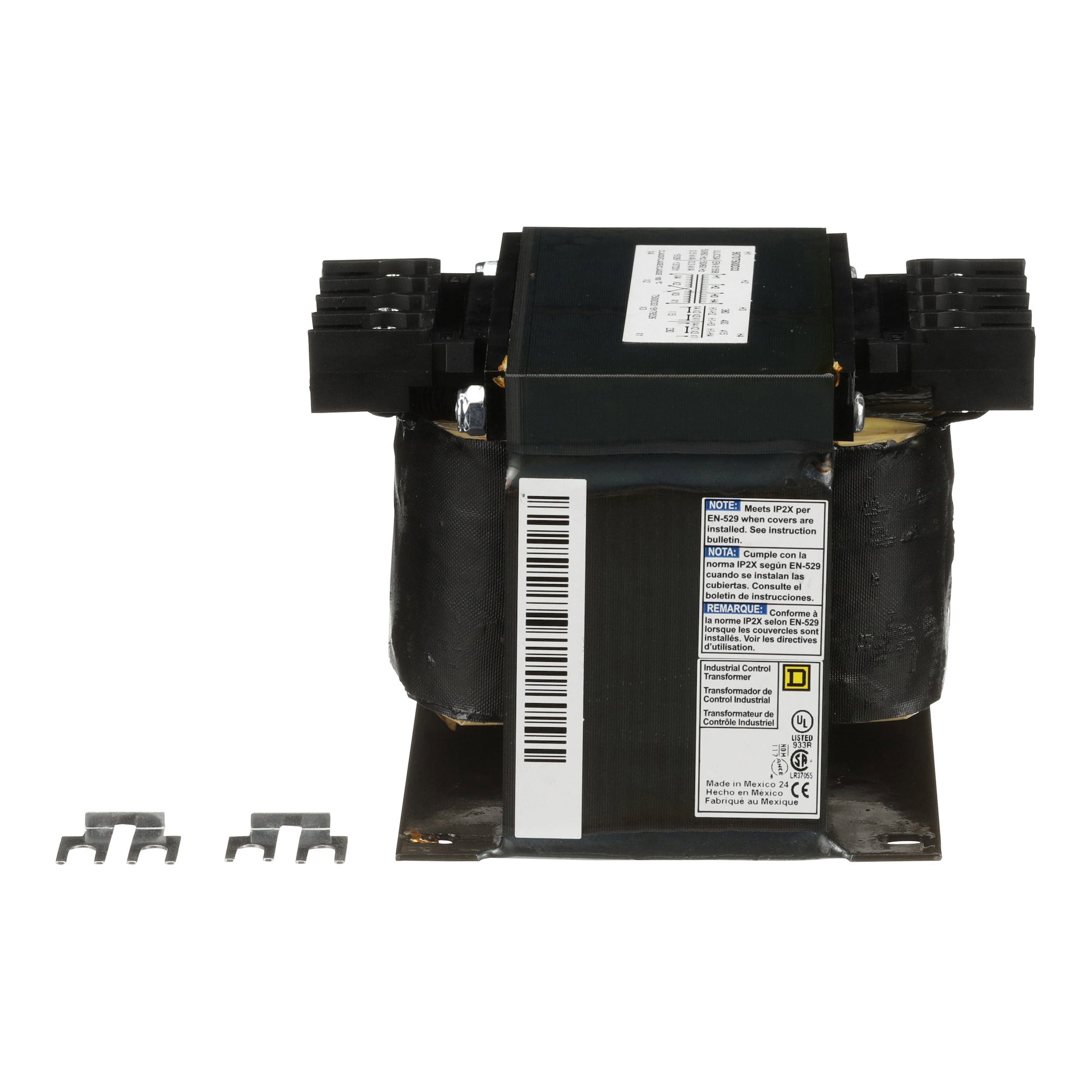

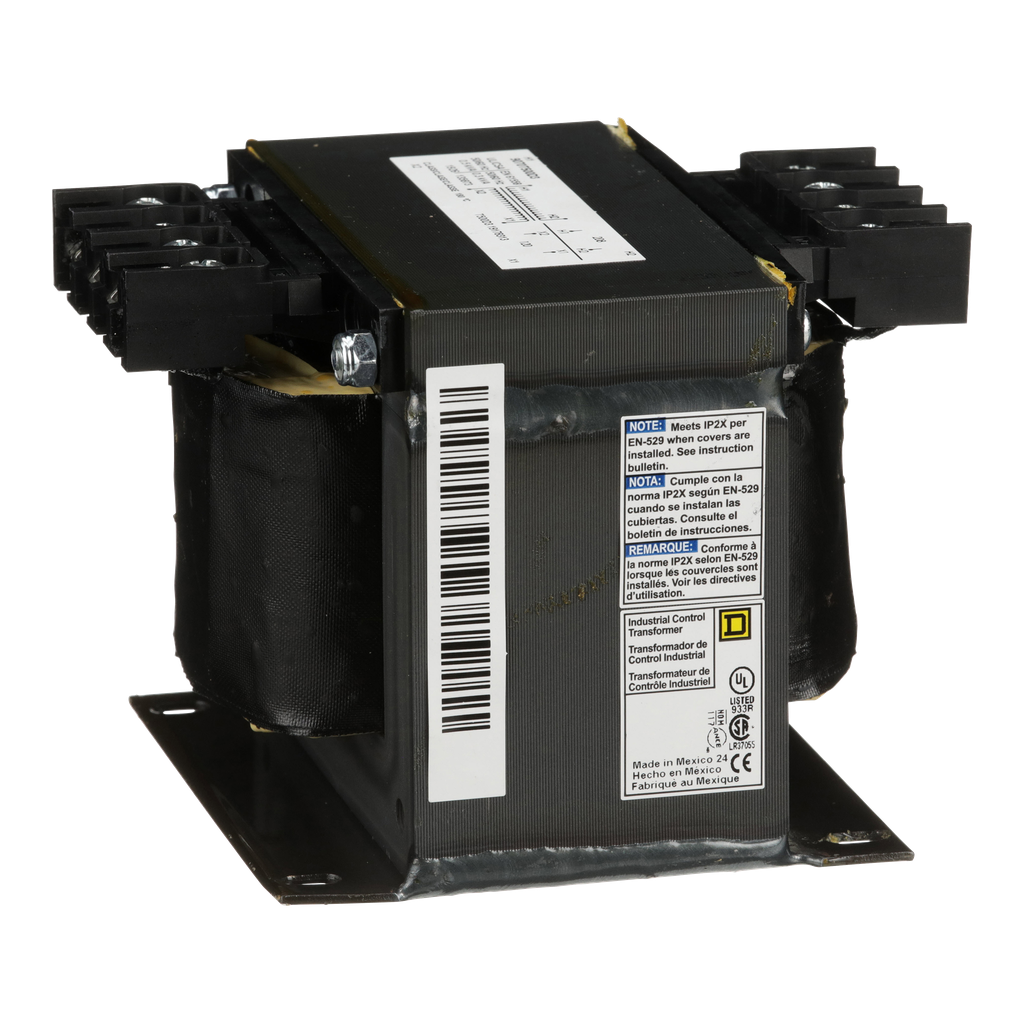

Square D 9070T500D3 500 VA 208 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

Product Description

The Square D 9070T500D3 is a control transformer with a power rating of five hundred VA. It operates at a primary voltage of two hundred eight volts and a secondary voltage of one hundred twenty volts. This industrial control transformer is single-phase and features a temperature rise of one hundred fifteen degrees Celsius. The low impedance windings allow it to manage higher inrush currents while maintaining voltage regulation. This transformer is equipped with screw clamp terminal connections and is made of copper windings.

• 500 VA power rating
• 208 VAC primary and 120 VAC secondary voltages
• Suitable for various applications with optional accessories

Product Highlights

The 9070T500D3 transformer includes customer-installable accessories, such as covers and fuse blocks, making it adaptable to specific needs. It complies with UL, CE, and CSA standards for safety and reliability.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 9070T500D3
• Power Rating: 500 VA
• Voltage: 208 V primary, 120 V secondary
• Temperature Rating: 115 degrees C
• Depth: 5.49 inches
• Width: 4.5 inches
• Height: 3.84 inches
• Warranty Length: 10 years
• Country of Origin: Mexico
• UPC: 785901905677
