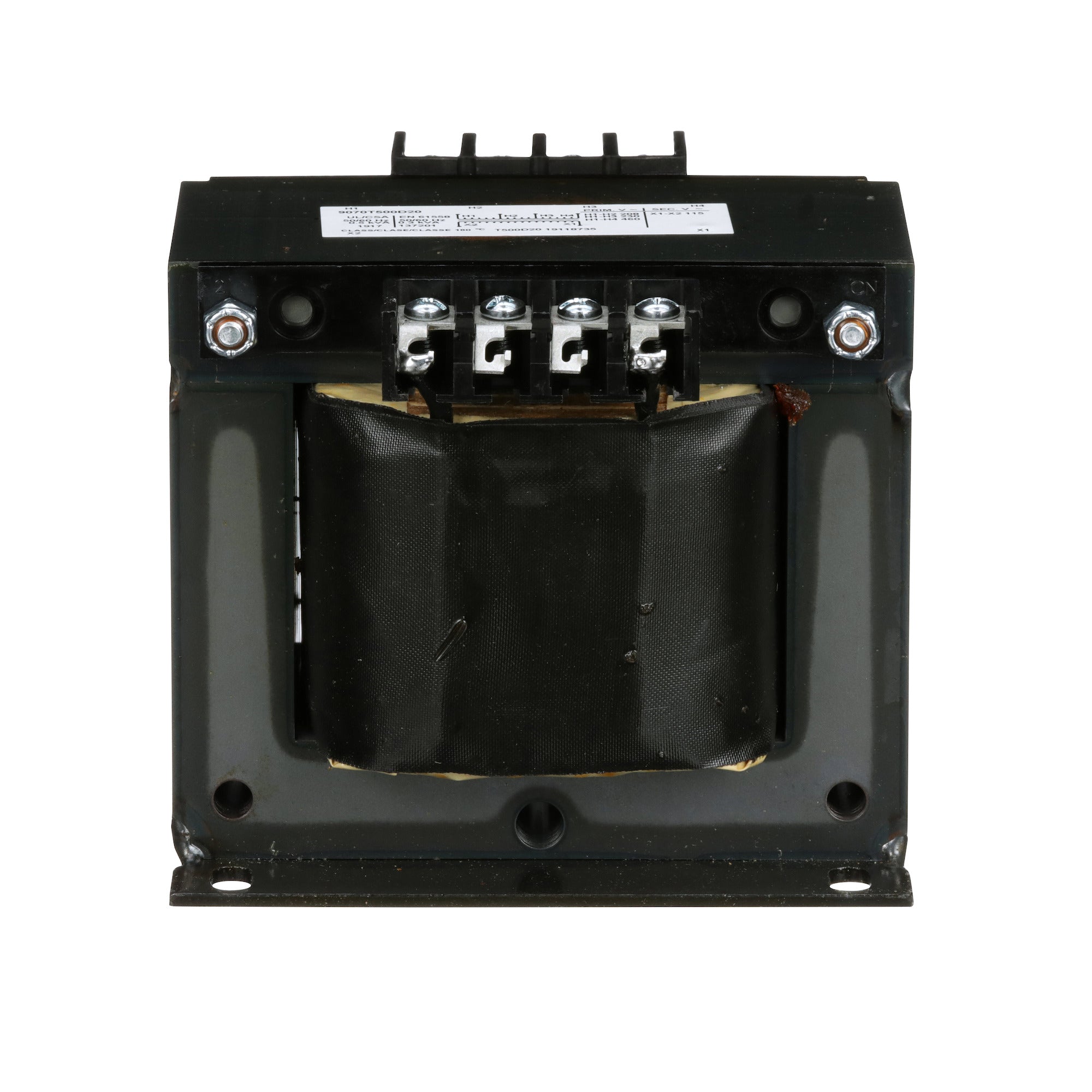

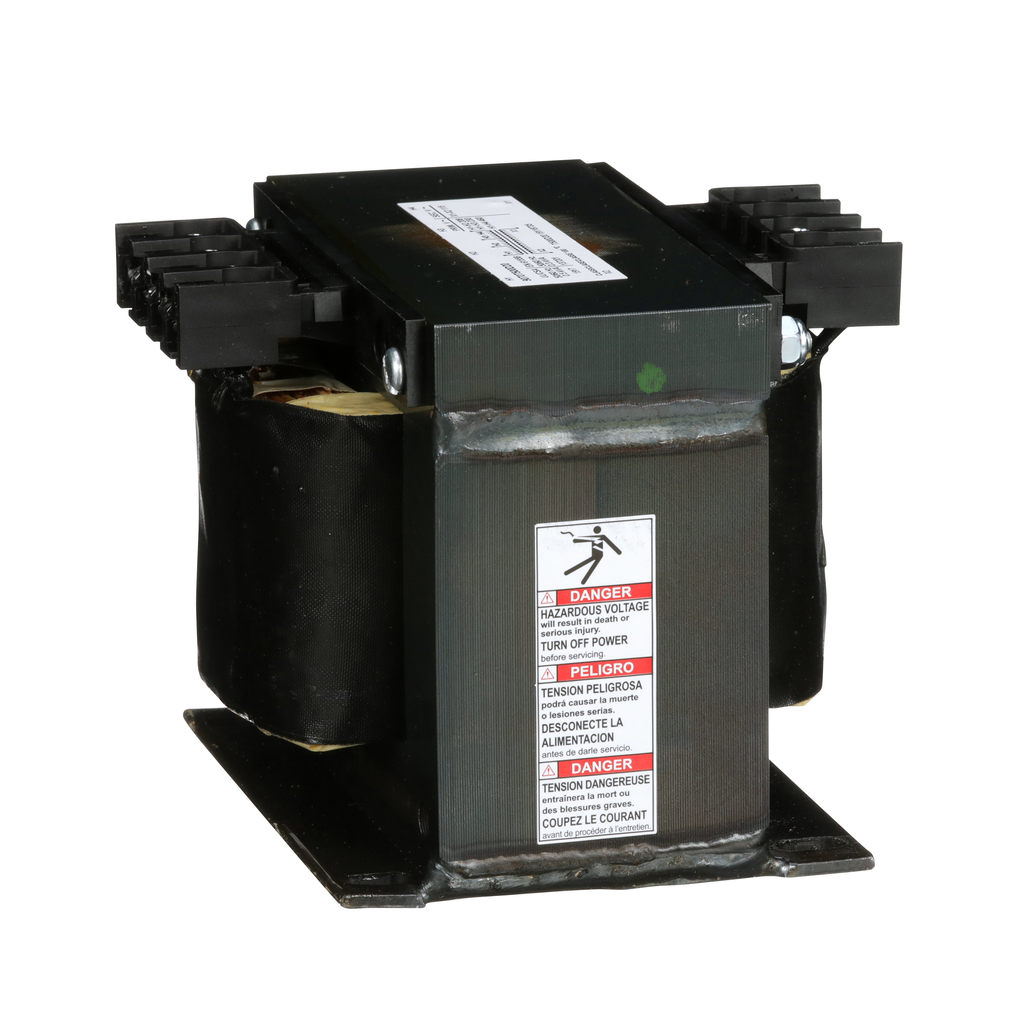

Square D 9070T500D20 500 VA 208/230/460 VAC Primary 115 VAC Secondary 1-Phase Control Transformer

Product Description

Square D 9070T500D20 is a 500 VA control transformer designed for 208/230/460 VAC primary and 115 VAC secondary applications. This transformer features a single-phase operation and is suitable for multiple industrial applications. With pre-wired leads, installation becomes efficient and easy for technicians.

• Power rating of 500 VA
• Primary voltage options of 208/230/460 V
• Complies with UL, CE, and CSA standards

Product Highlights

The Square D control transformer ensures reliable performance and durability in demanding conditions. It is ideal for control circuits where a reduced voltage is needed.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9070T500D20
• Power Rating: 500 VA
• Number of Phases: 1 Phase
• Primary Voltage: 208/230/460 V
• Secondary Voltage: 115 V
• Height: 4.51 inches
• Width: 5.25 inches
• Depth: 5.61 inches
• Material: Copper Winding
• Warranty: 10 Years
• Country of Origin: Mexico
