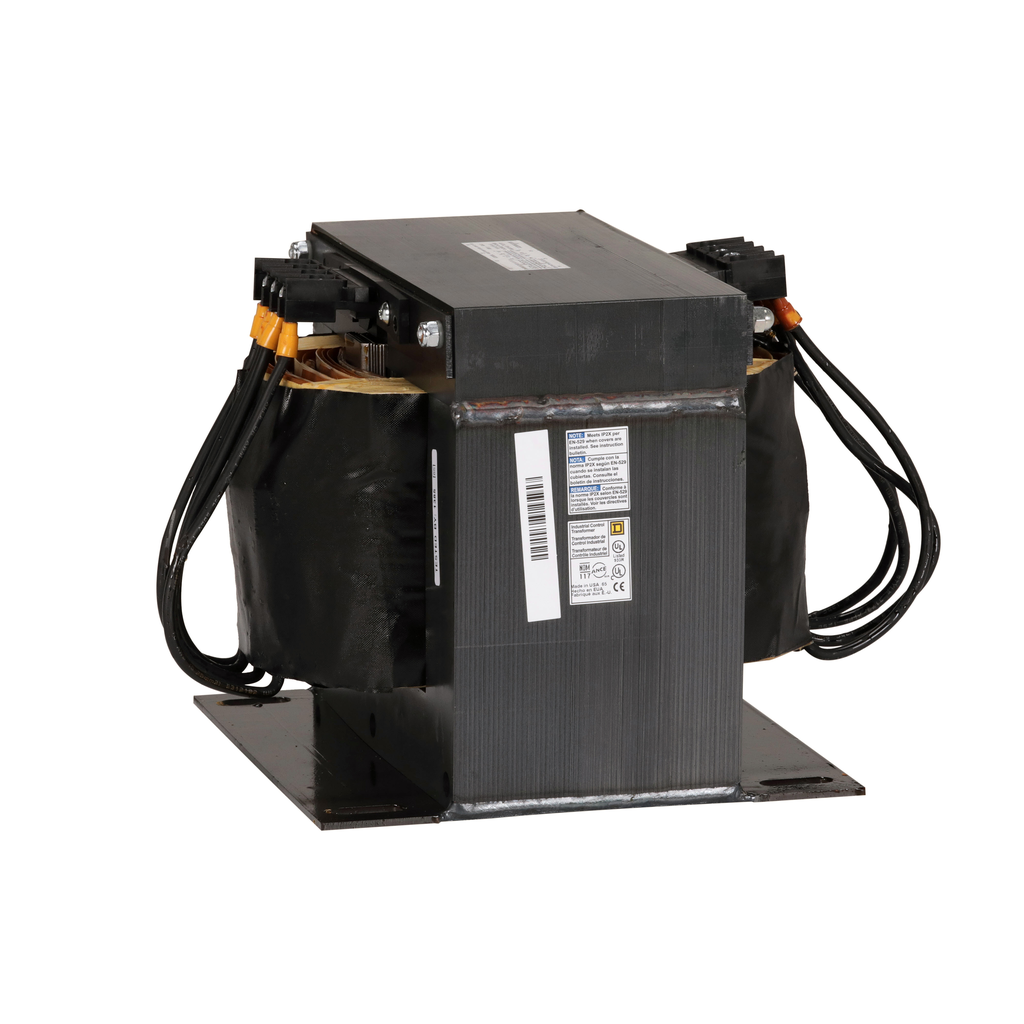

Square D 9070T5000D31 Industrial Control Transformer 5000 VA 240 x 480 VAC Primary 120/240 VAC Secondary

Product Description

The Square D by Schneider Electric Type T Industrial Control Transformer 9070T5000D31 is built for various application needs. It is a robust solution designed for use in global markets. This transformer operates with a primary voltage of two hundred forty by four hundred eighty VAC and a secondary voltage of one hundred twenty/ two hundred forty VAC. It also accommodates voltages of two hundred thirty by four hundred sixty VAC to one hundred fifteen/ two hundred thirty VAC and two hundred twenty by four hundred forty VAC to one hundred ten/ two hundred twenty VAC.

• Single phase design for versatile application
• Low impedance windings to manage higher inrush current
• Meets UL and CSA standards for reliability

Product Highlights

This transformer provides consistent voltage regulation, ensuring stable performance under varying loads. It includes accessories for field installation that enhance operational capabilities. It is suitable for extensive use in industrial control applications.

Product Information

Standard Information

• Catalog Number: 9070T5000D31
• Brand: Square D

Technical Specifications

• Power Rating: 5000 VA
• Primary Voltage: 240 x 480 V or 230 x 460 V or 220 x 440 V
• Secondary Voltage: 110/220 V
• Number of Phases: 1 Phase
• Temperature Rating: 115 degrees C
• Height: 8.75 inches
• Width: 9 inches
• Depth: 9.15 inches
• Enclosure: Open
• Material: Copper
• Country of Origin: USA
• Warranty Length: 10 years
• Certifications: CSA File LR37055 Guide 184-N-90, UL Listed File E61239
