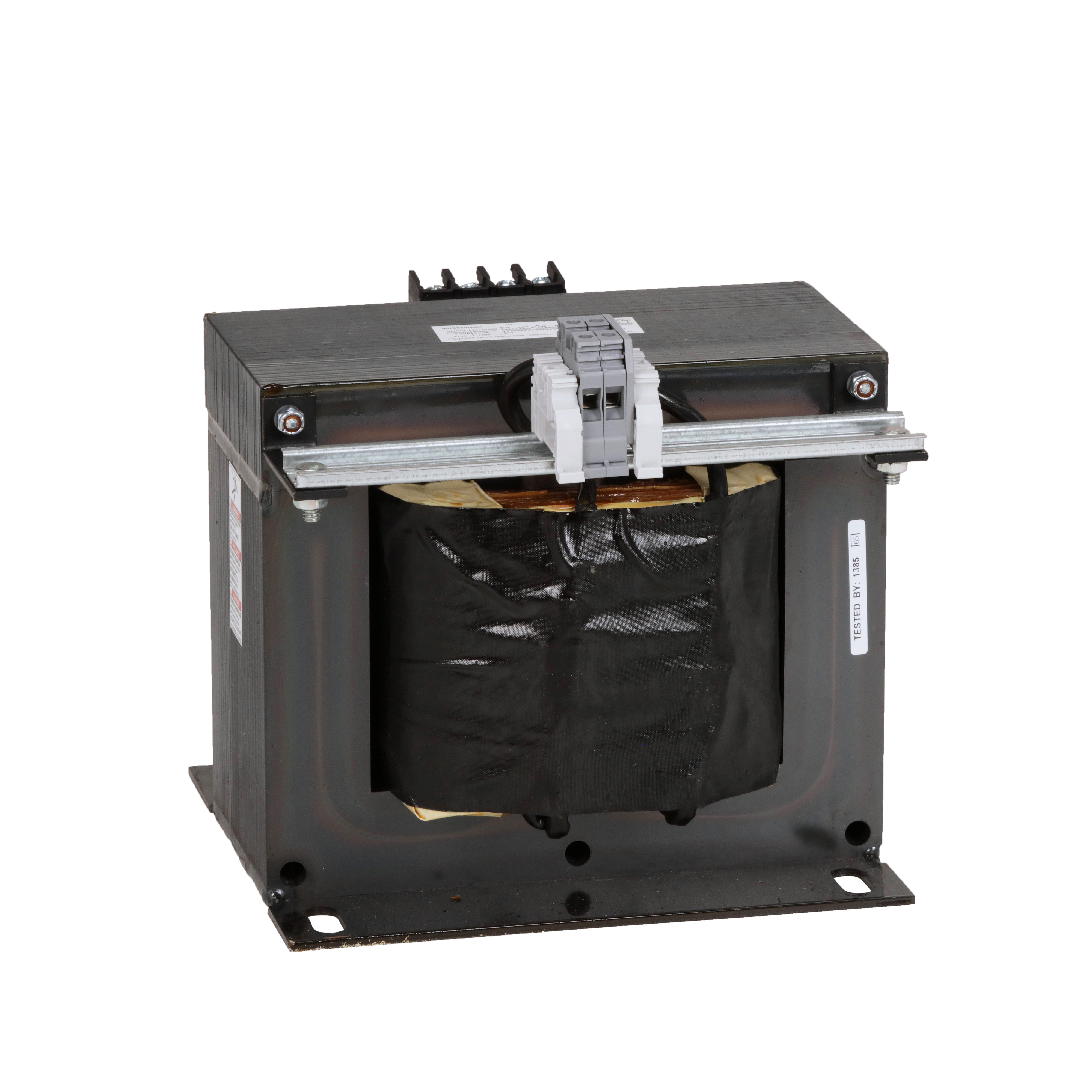

Square D 9070T5000D1 Industrial Control Transformer 5000 VA

Product Description

The Square D 9070T5000D1 by Schneider Electric is a Type T industrial control transformer designed for the global market. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. It has a 240 x 480 VAC primary and 120 VAC secondary voltage, with a power rating of 5000VA.

• Designed for the global market
• Low impedance windings to handle higher inrush current
• Compliant with UL, CSA, and CE standards

Product Highlights

This Square D industrial control transformer is ideal for applications with high inrush current.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9070T5000D1
• Country of Origin: United States

Technical Specifications

• Type: Type T Industrial Open Style
• Brand: Square D
• Depth: 9.15 Inch
• Width: 9 in
• Height: 8-3/4 Inch
• Material: Copper: Winding
• Enclosure: NOT RATED (OPEN DEVICE)
• Power Rating: 5000 VA
• TC Connection: SCREW CLAMP
• Certifications: CSA File LR37055 Guide 184-N-90,UL Listed File E61239
• Primary Voltage: 220 x 440 V, 230 x 460 V, 240 x 480 V
• Number of Phases: 1 Phase
• Country of Origin: USA
• Secondary Voltage: 110 V
• Temperature Rating: 115 DEGREES C
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Frequency Rating: 50/60 Hz
• Insulation Class: 180
• Temperature Rise: 115 °C
• Mounting: Panel
• Applicable Standard: EN 61558/01.89
• Approval: UL, CSA, CUL, CE, NOM
• Terminal Type: Screw
• Item [Specifications]: Control Transformer
• Phase [Specifications]: 1
• Standards [Specifications]: CE Compliant, CSA Certified, UL Listed
• Temp. Rise [Specifications]: 115 Degrees C
• Input Voltage [Specifications]: 240/480VAC
• Enclosure Type [Specifications]: Open Device (Not Rated)
• Output Voltage [Specifications]: 120VAC
• Hz - Electrical [Specifications]: 50 Hz, 60 Hz
• Enclosure Finish [Specifications]: Epoxy Resin Varnish
• Transformer Type [Specifications]: Wire-Wound
• Protective Device [Specifications]: None
• Item - Transformer [Specifications]: Control Transformer
• Phase - Electrical [Specifications]: 1
• Primary Connection [Specifications]: Screw clamp terminals
• Secondary Connection [Specifications]: Screw clamp terminals
• Insulation Max. Temp. [Specifications]: 180°C
• Mounting - Transformer [Specifications]: Foot
• VA Rating - Transformer [Specifications]: 5 kVA
• Input Voltage - Transformer [Specifications]: 240V AC, 480V AC
• Output Voltage - Transformer [Specifications]: 120V AC
• Enclosure Style - Transformer [Specifications]: Open
• Winding Material - Transformer [Specifications]: Copper
• Range Of Product: T
• Product Or Component Type: Industrial Control Transformer
• Rated Power In Va: 5000 VA UL || 5000 VA CSA || 5000 VA NOM || 3000 VA CE
• Electrical Connection: screw clamp terminals
• Product Compatibility: FSC2
• Insulation Temperature: 180 °C
• Nema Degree Of Protection: not rated (open device)
• Alternate Catalog Number: 9070T5000D1
• Application: FSC2
• Enclosure Type: Open
• KVA Rating: 5000 VA
• Mounting Type: Panel
• Standard: CSA FILE LR37055 GUIDE 184-N-90-CE-UL LISTED FILE E61239
• Phase: 1 ph
• Voltage: 110 Volt
