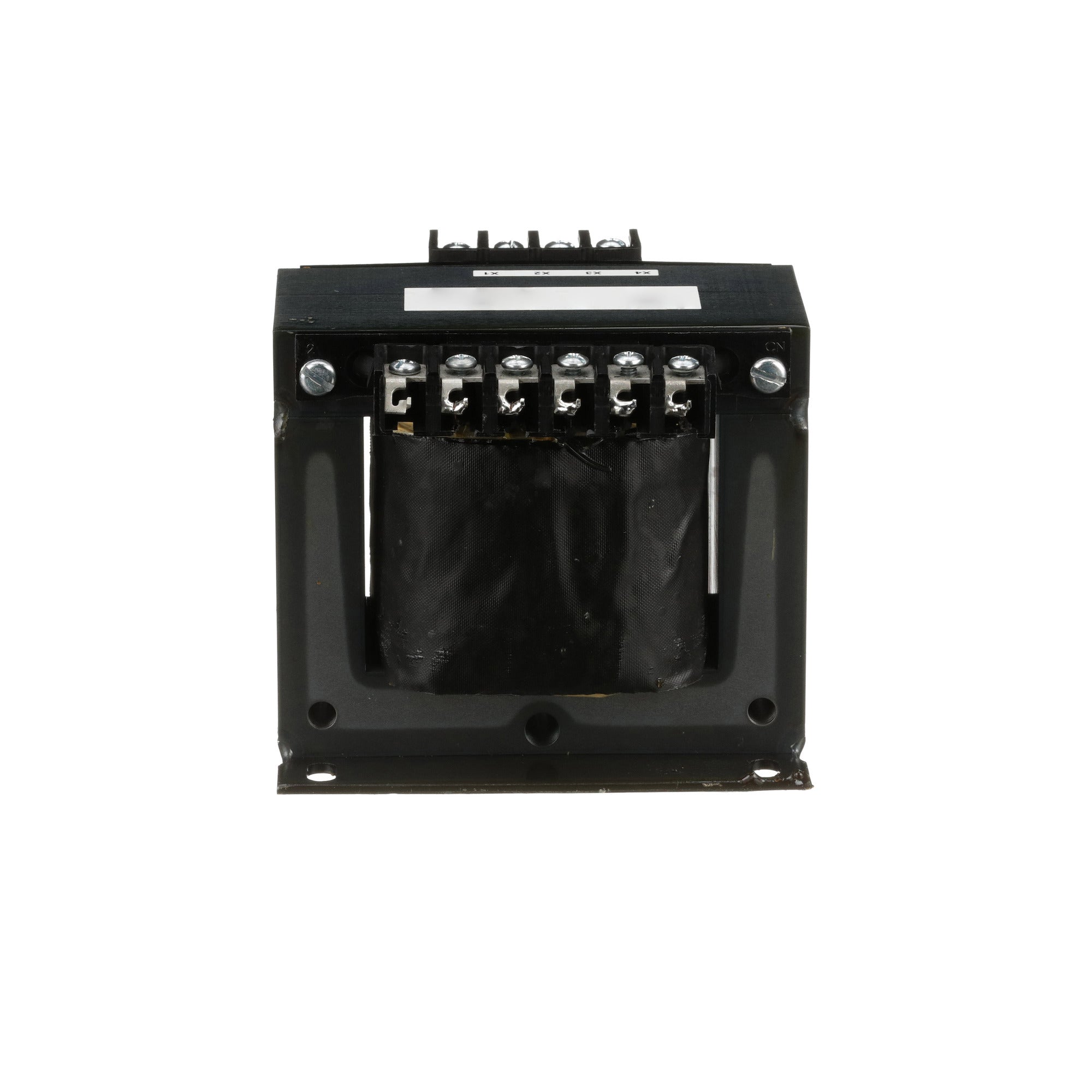

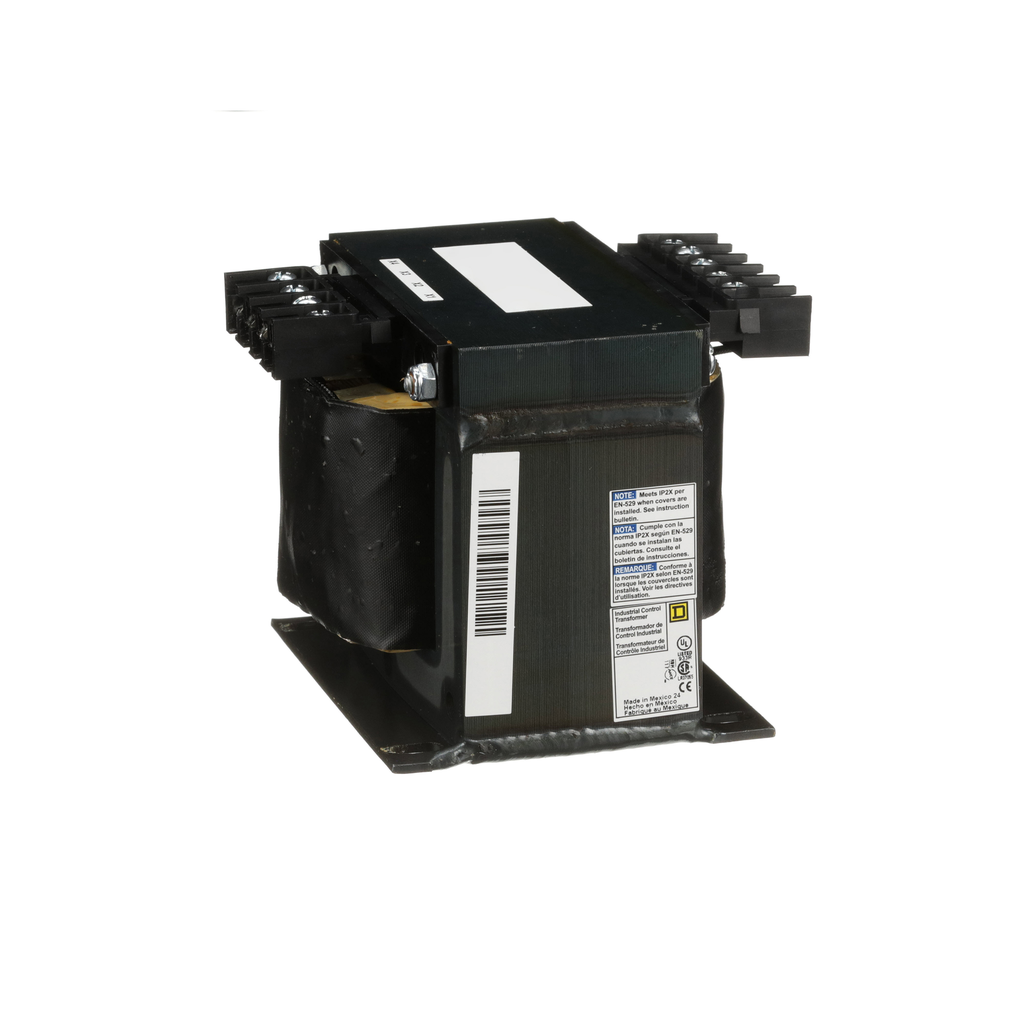

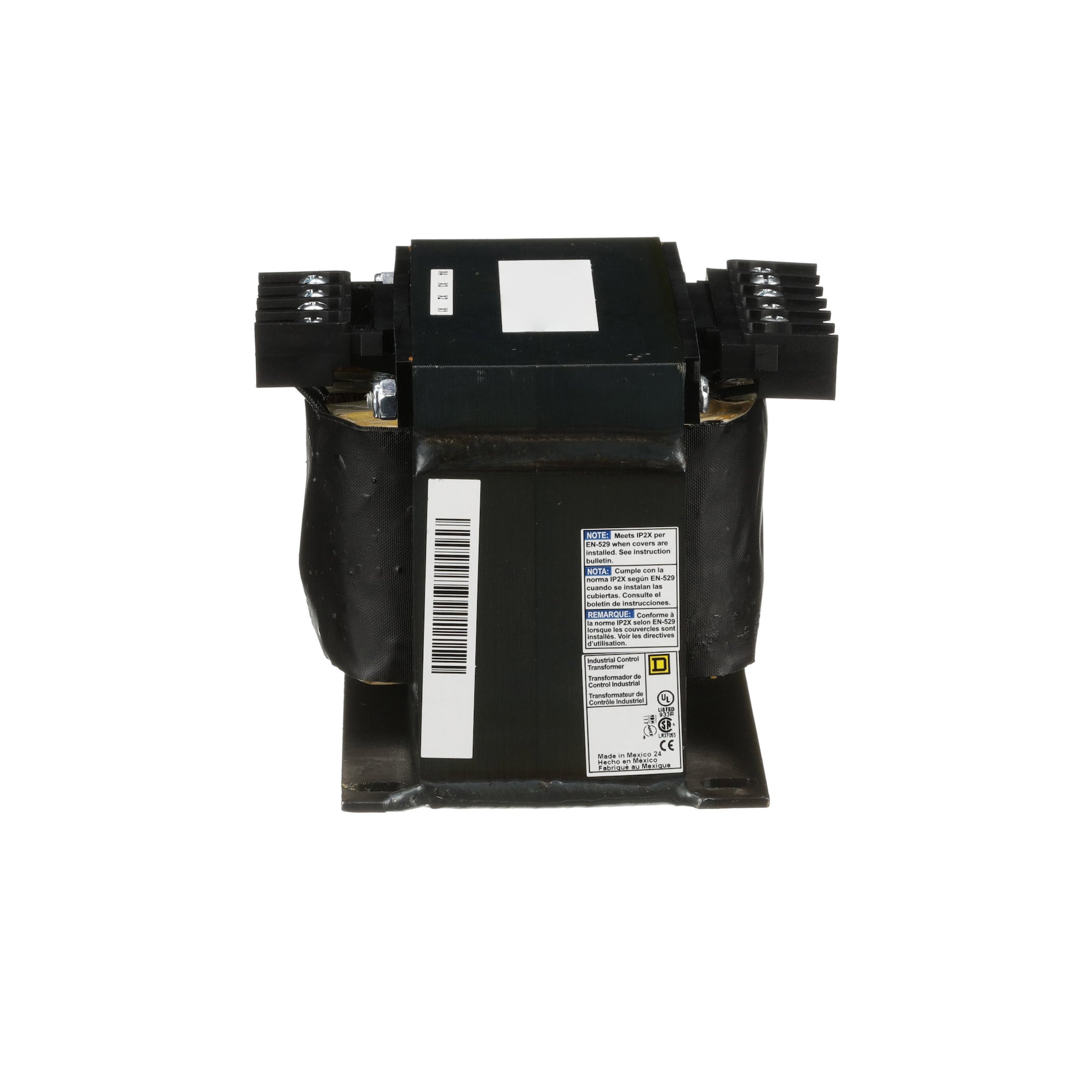

Square D 9070T350D50 350 VA 240/416/480/600 VAC Primary 99/120/130 VAC Secondary 1-Phase Control Transformer

Product Description

The Square D 9070T350D50 is a one-phase control transformer designed for industrial use with a power rating of three hundred and fifty volt-amperes. This transformer operates at multiple primary voltages including two hundred forty, four hundred sixteen, four hundred eighty, and six hundred volts, with secondary voltages of eighty-five, one hundred four, and one hundred fifteen volts. It's suitable for various applications where control over high inrush currents associated with contactors and relays is necessary, such as conveyor systems and punch presses.

• Meets UL and CSA standards for safety and reliability
• Temperature rise of eighty degrees Celsius
• Constructed with copper windings and an open enclosure type

Product Highlights

The Type T transformers are a popular choice for industrial applications, allowing for customer-installable accessories, enhancing versatility in installation. The compact design contributes to ease of installation in various configurations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9070T350D50
• Voltage: 240/416/480/600V
• Power Rating: 350 VA
• Number of Phases: 1 Phase
• Temperature Rating: 80 degrees Celsius
• Country of Origin: United States
• Warranty Length: 10 years
• Dimensions: 4.51 inches (H) x 5.25 inches (W) x 5.61 inches (D)
