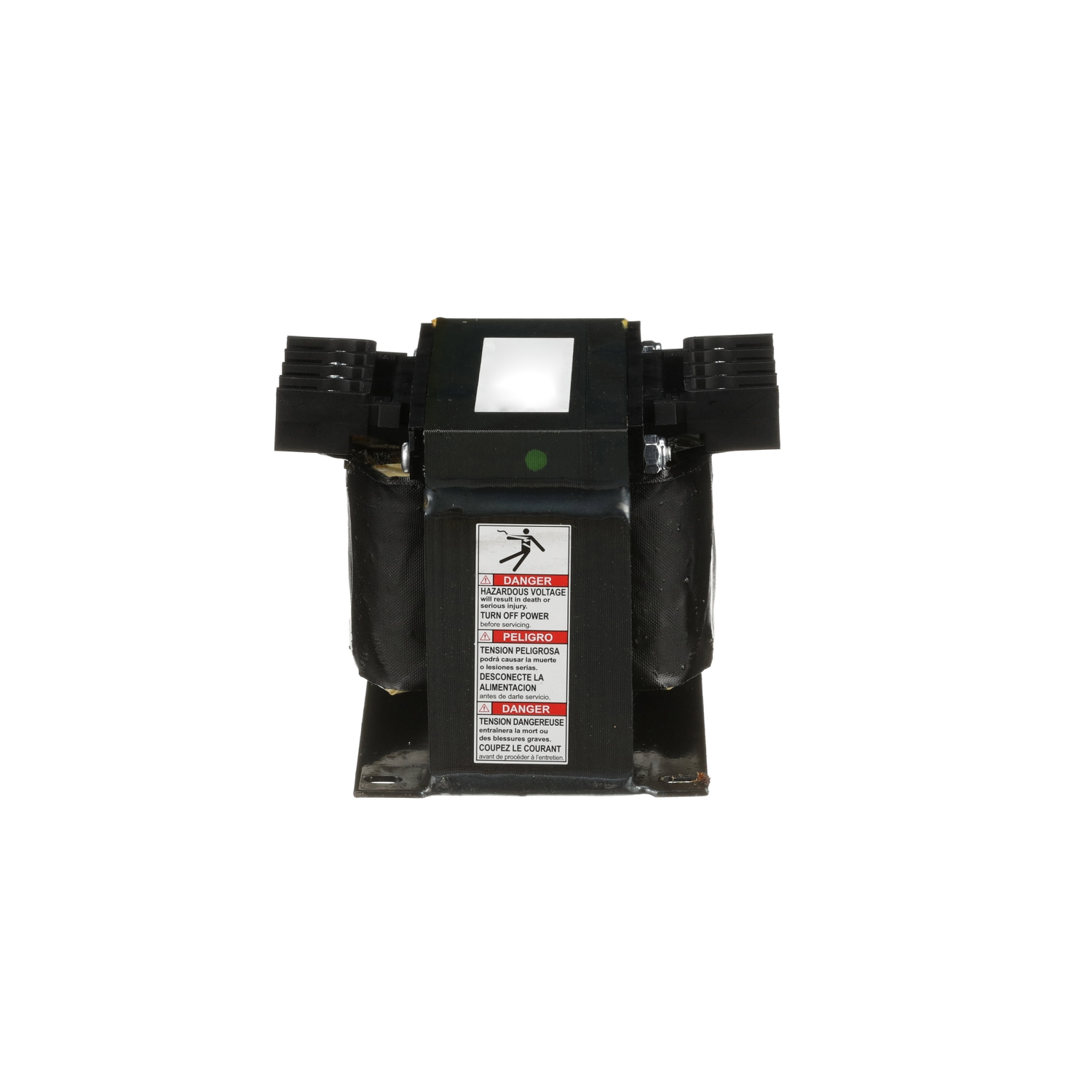

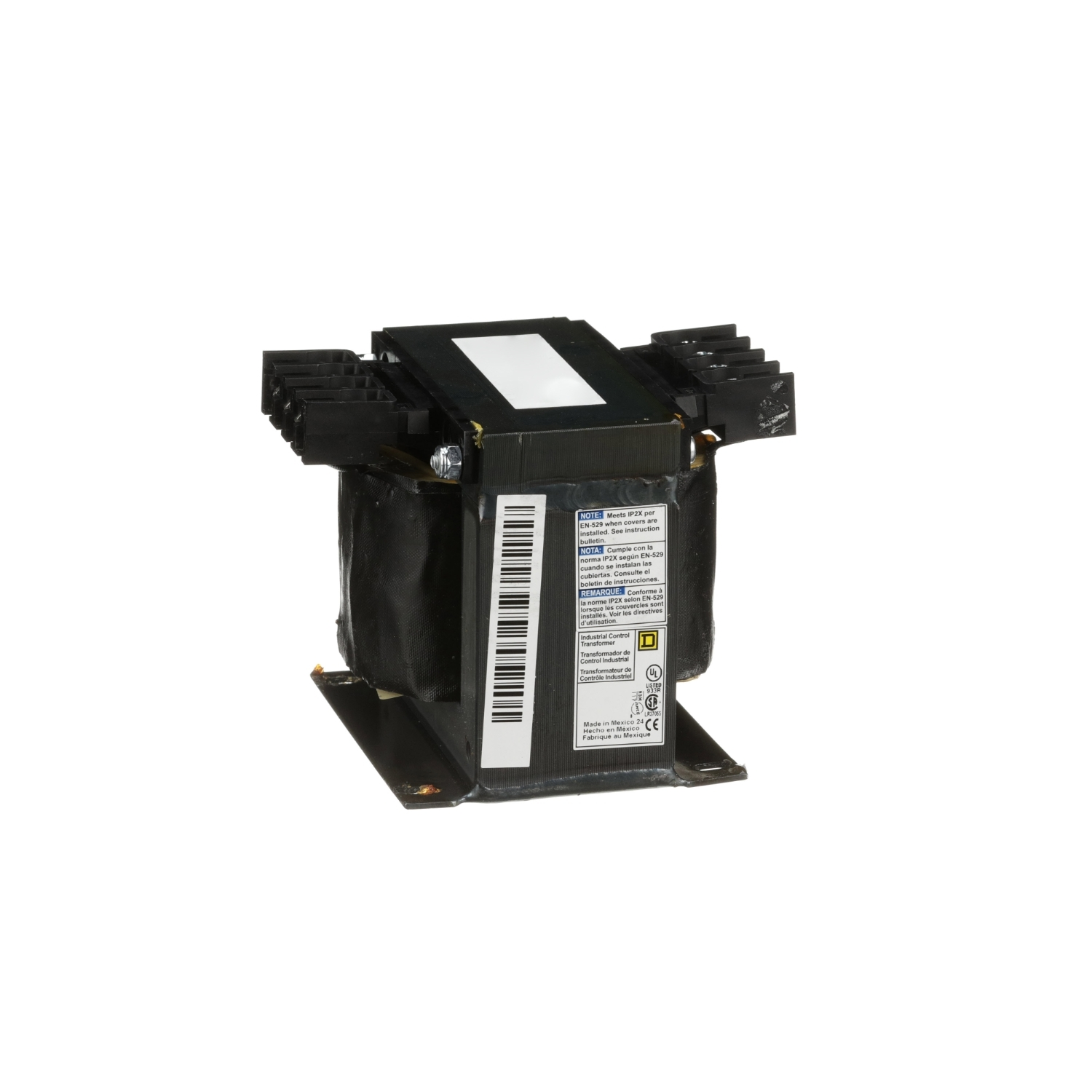

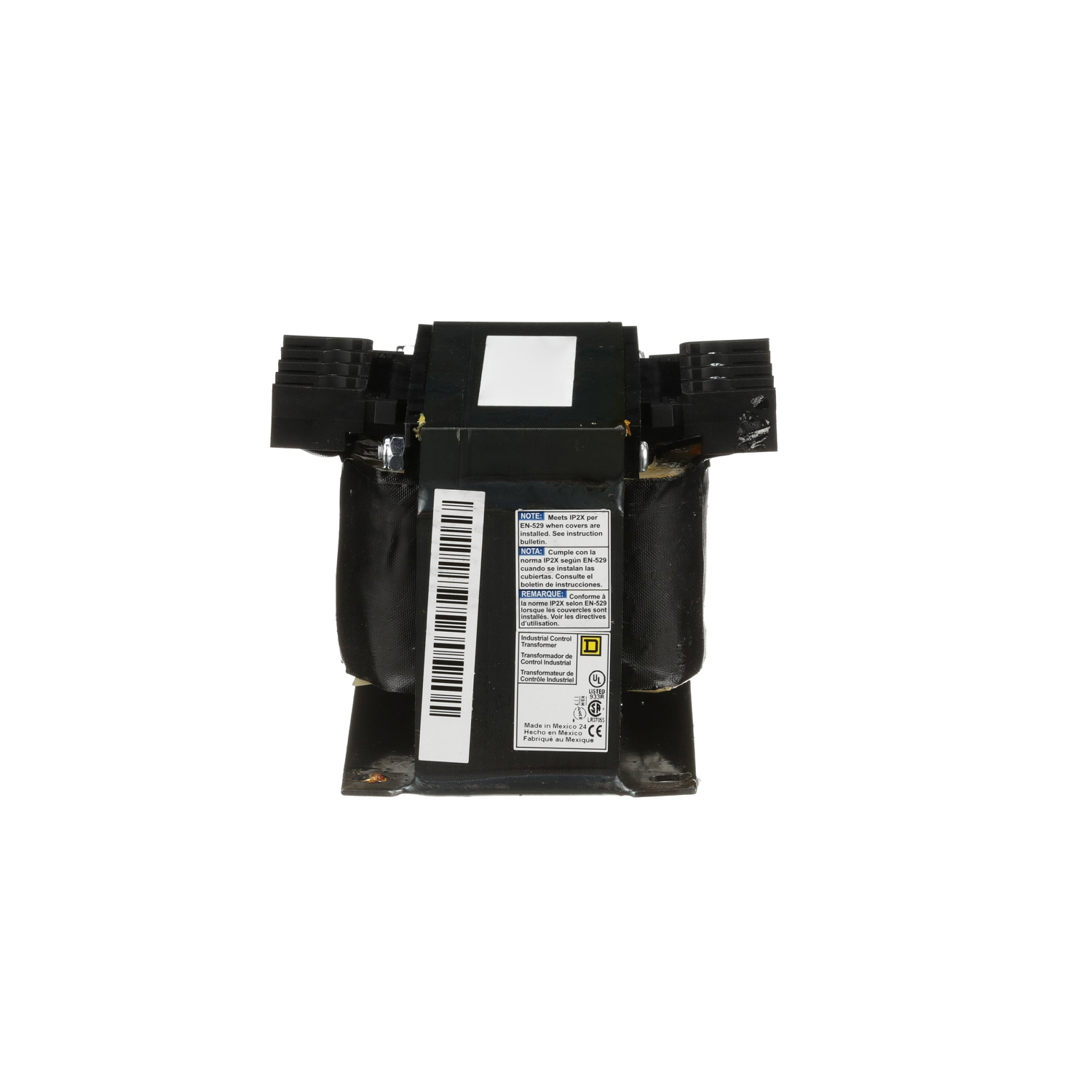

Square D 9070T300D20 Control Transformer 300 VA 208/230/460 VAC Primary 115 VAC Secondary

Product Description

The Square D 9070T300D20 is an industrial control transformer designed for various applications. This transformer features a power rating of three hundred volt-amperes, with a primary voltage of two hundred eight, two hundred thirty, or four hundred sixty volts and a secondary voltage of one hundred fifteen volts. It operates as a single-phase device and is suitable for HVAC, electrical, and industrial control circuits.

• Power Rating: 300 VA
• Primary Voltage: 208/230/460 VAC
• Temperature Rise: 80 degrees Celsius

Product Highlights

This control transformer is suitable for residential and commercial use. It meets UL and CSA safety standards and is manufactured in the United States. The open enclosure design allows for easy installation in various environments.

Product Information

Standard Information

• Brand: Square D
• Type: Industrial Control Transformer

Technical Specifications

• Catalog Number: 9070T300D20
• Phase: 1
• Material: Copper winding
• Connection Type: Screw clamp terminals
• Country of Origin: United States
• Warranty: 10 years
• Enclosure Type: Open
• Insulation Temperature Rating: 130 degrees Celsius
