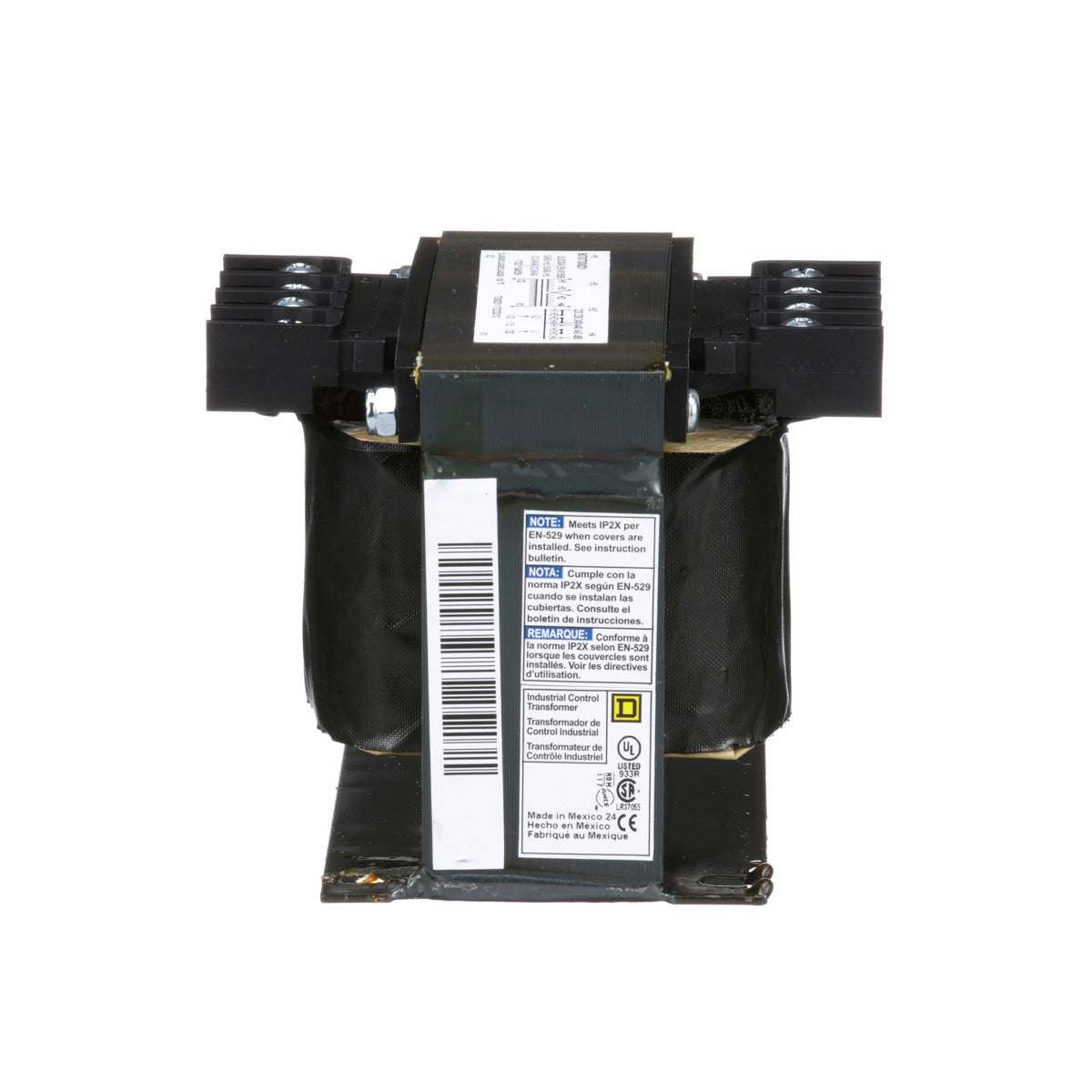

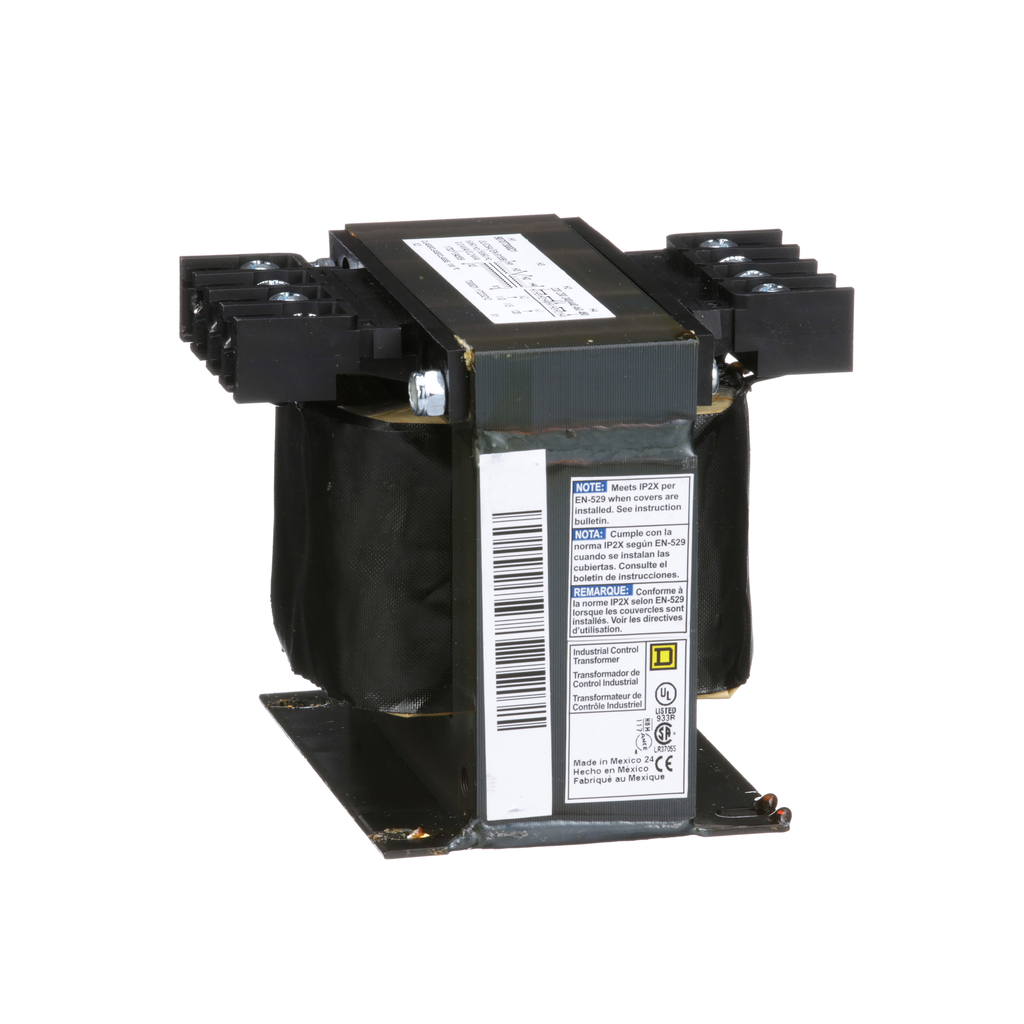

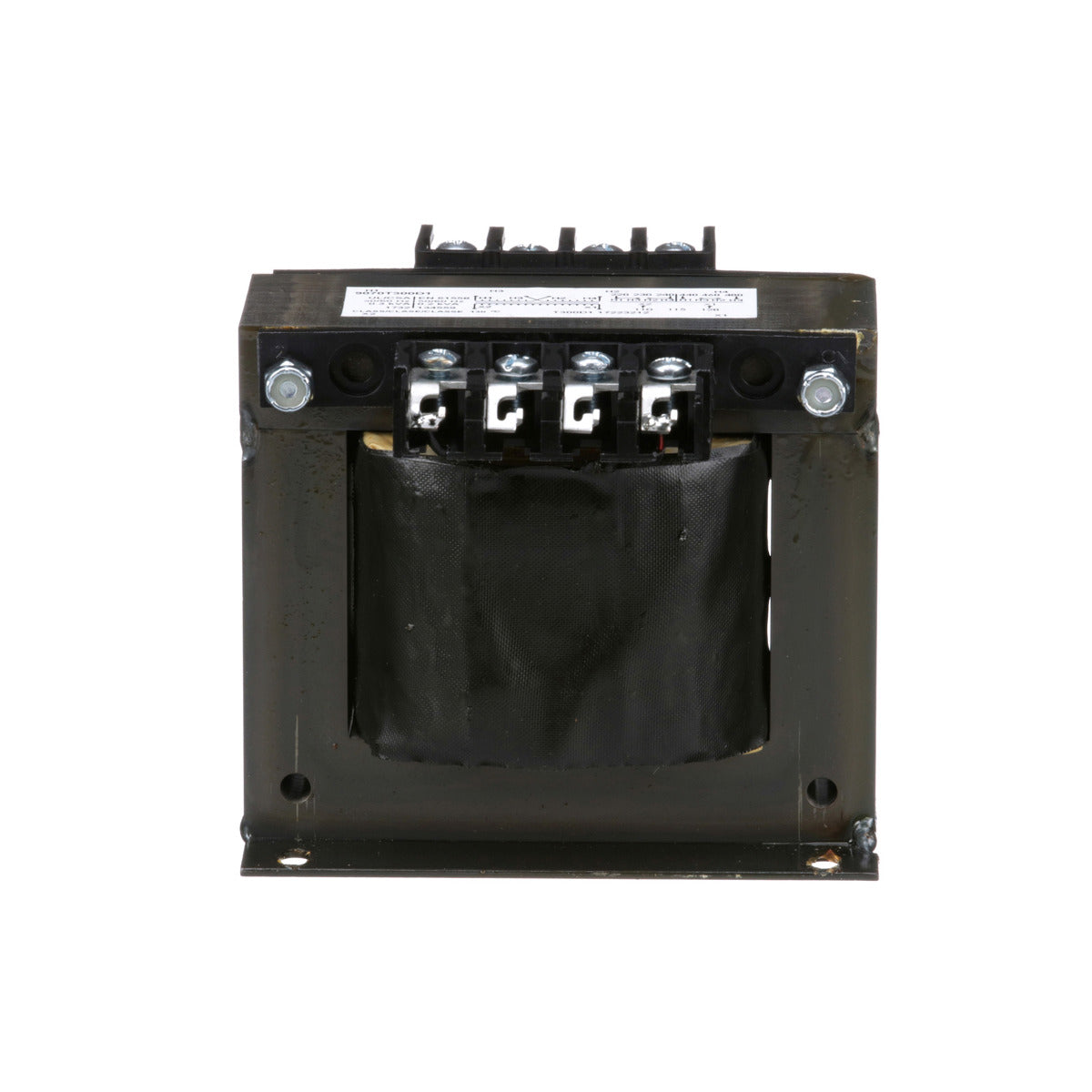

Square D 9070T300D1 300 VA Transformer

Product Description

The Square D 9070T300D1 control transformer is engineered for high performance in industrial environments. Manufactured by Schneider Electric, it features a primary voltage of 240 x 480 VAC and a secondary voltage of 120 VAC over a single phase. This transformer is designed to support the start-up of electromechanical components such as contactors, starters, solenoids, and relays.

• Low impedance windings ensure excellent voltage regulation.
• Copper wound for improved performance and durability.
• Compliant with UL, CSA, and CE standards for safety and reliability.

Product Highlights

With a power rating of 300VA, this transformer is suitable for a wide range of industrial applications. It is crafted to handle the high inrush currents typical in industrial settings while maintaining stability and efficiency. The open-frame design allows for easier installation and maintenance.

Product Information

Standard Information

• Brand: Square D
• MPN: 9070T300D1

Technical Specifications

• Primary Voltage: 240/480VAC
• Secondary Voltage: 120VAC
• Power Rating: 300 VA
• Phase: 1
• Temperature Rise: 80 Degrees C
• Enclosure: Open device
• Warranty: 10 years
• Country of Origin: Mexico
