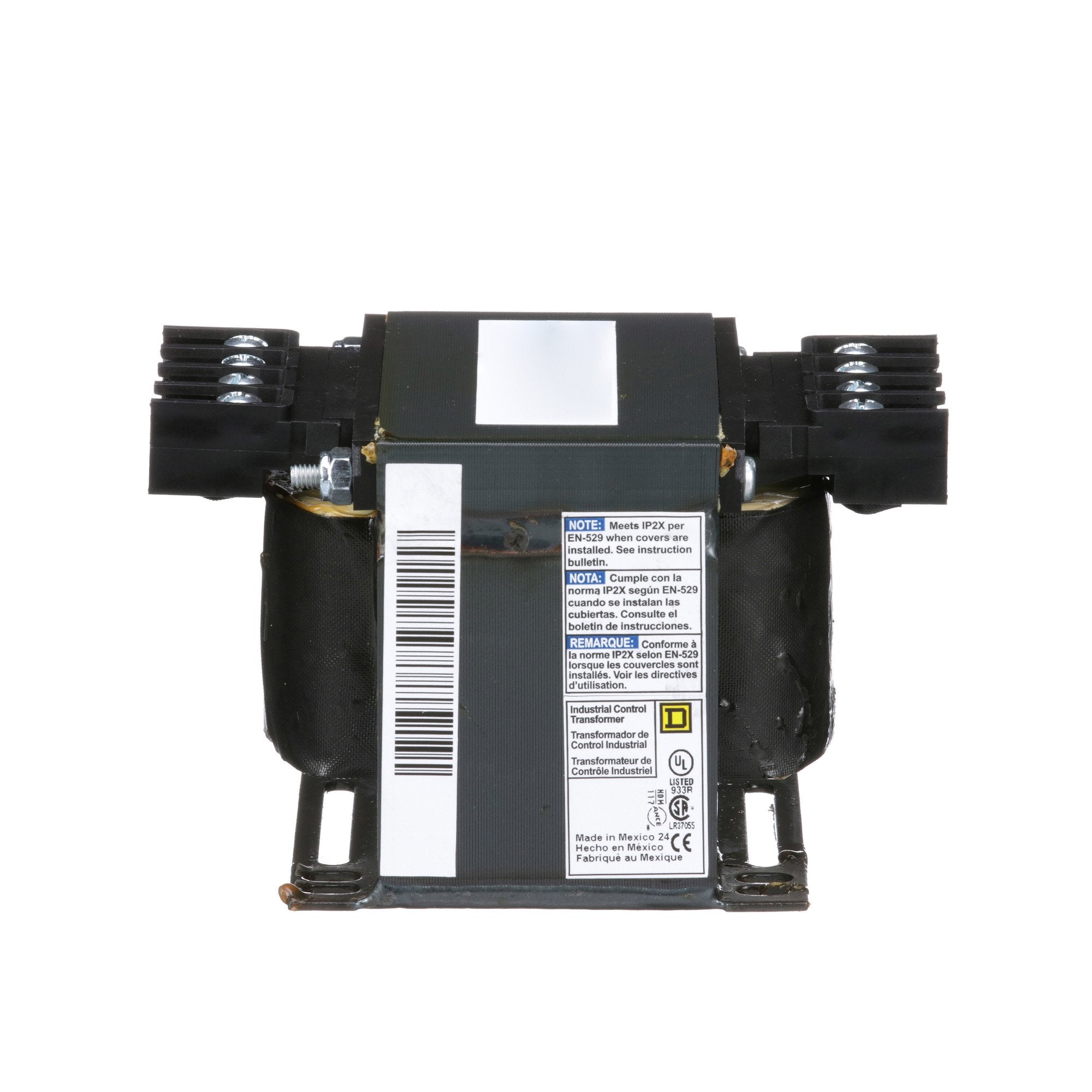

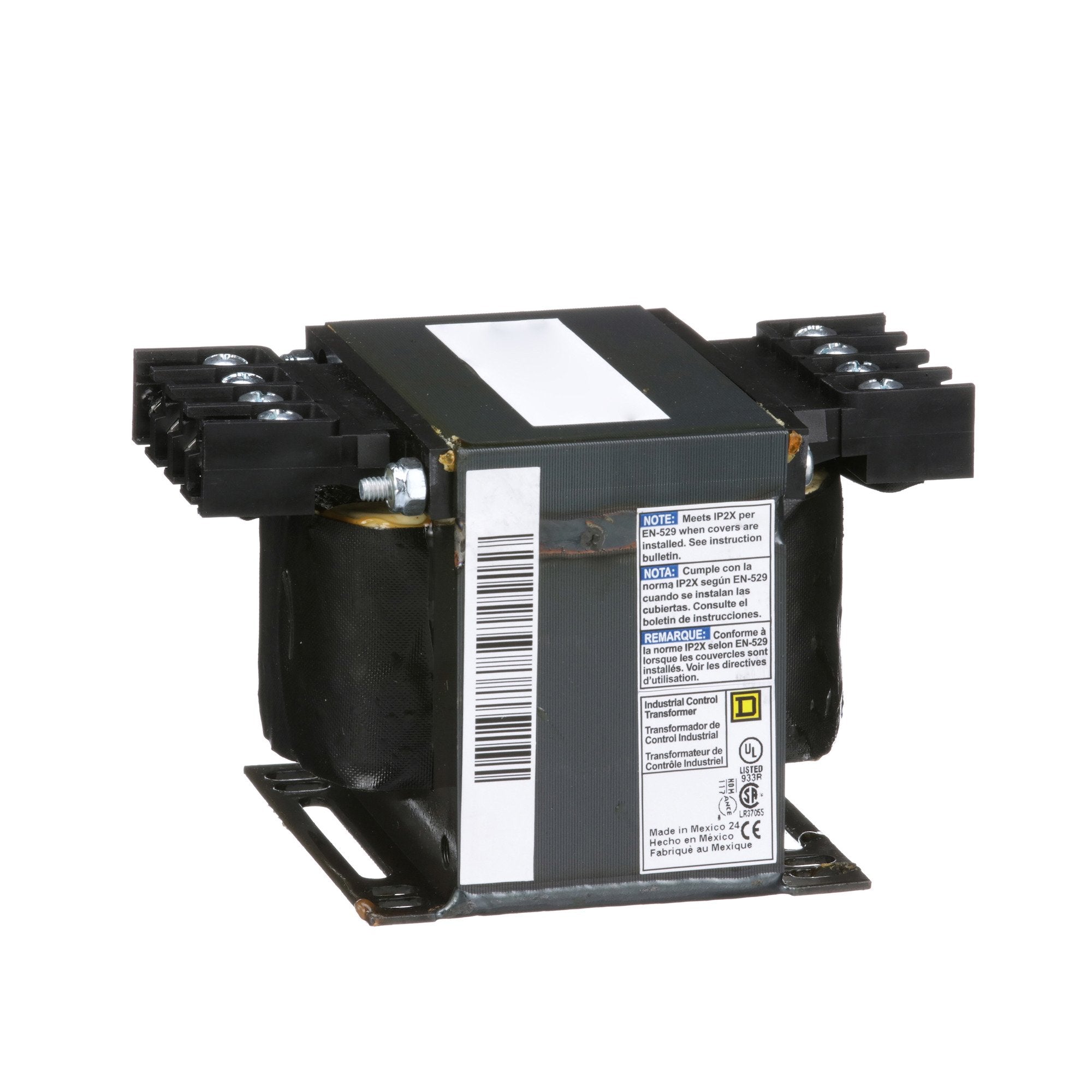

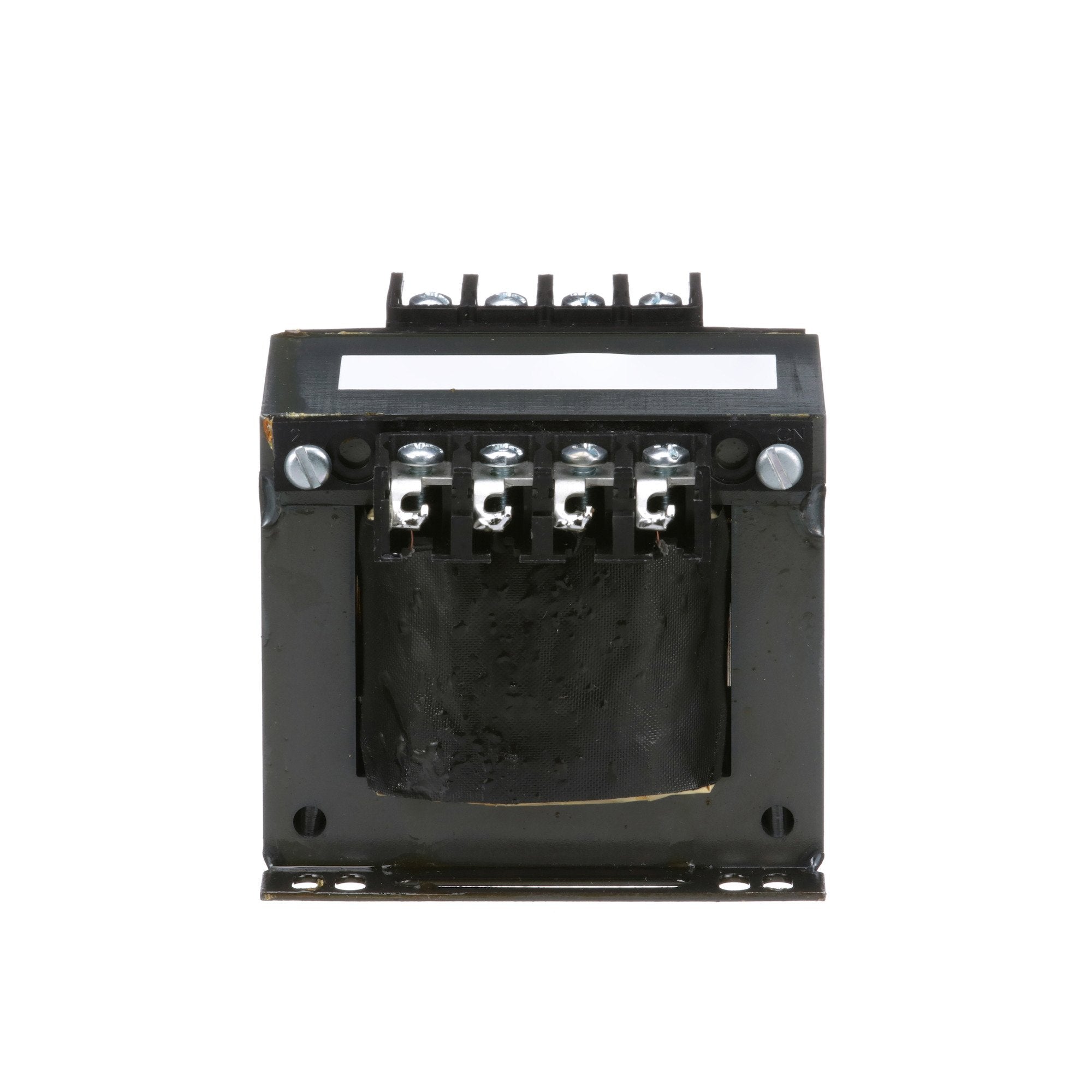

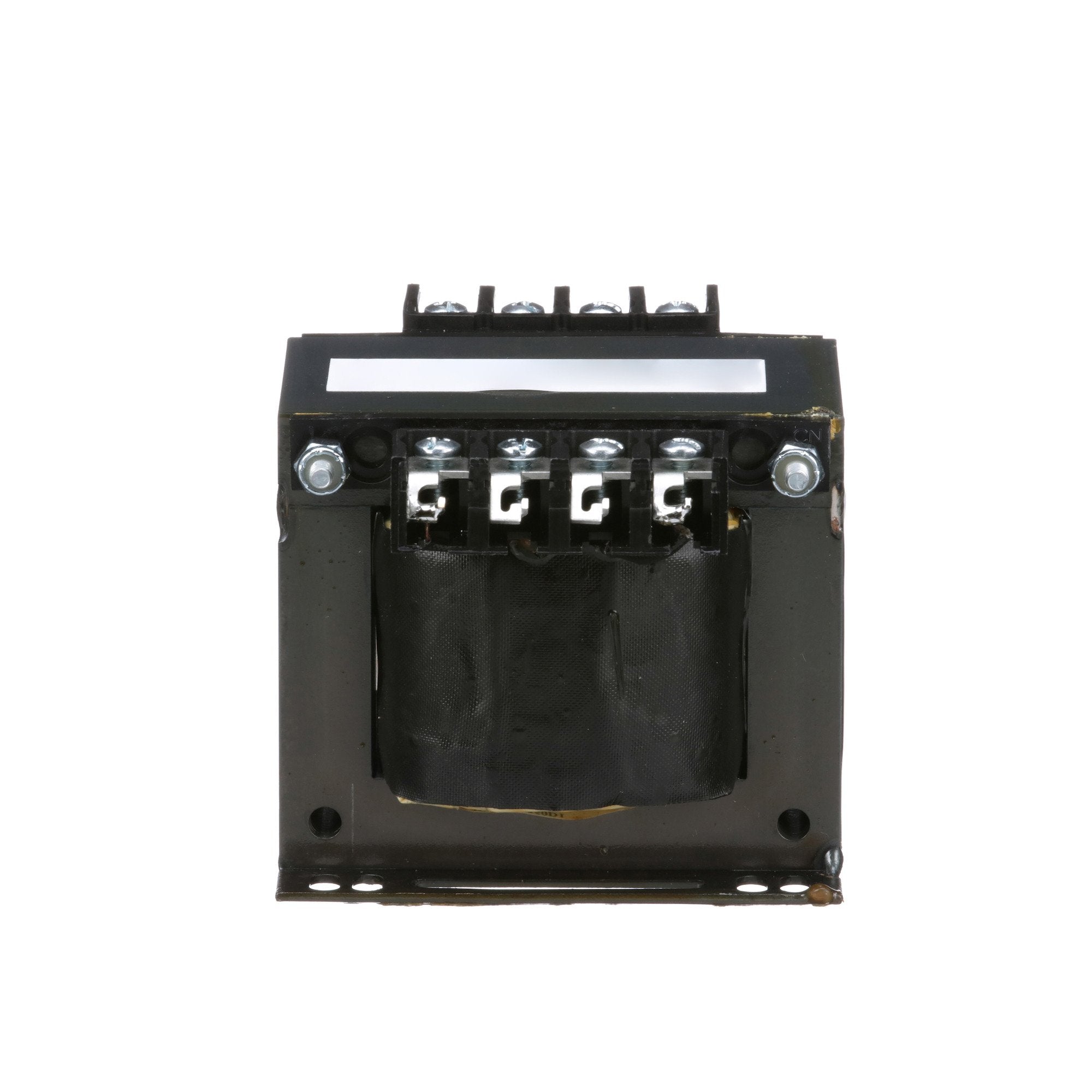

Square D 9070T250D3 250 VA 208 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

Product Description

The Square D 9070T250D3 is a control transformer designed for industrial applications. This model offers a primary voltage of two hundred eight volts and a secondary voltage of one hundred twenty volts. It is a single-phase transformer with a power rating of two hundred fifty VA. This unit is suitable for a range of settings and meets UL and CSA standards.

• 1-Phase Control Transformer
• Primary Voltage: 208 V
• Secondary Voltage: 120 V
• Power Rating: 250 VA

Product Highlights

The transformer is equipped with features for easy installation. Accessories such as fuse blocks and clips are available for customer installation. It has a temperature rise of eighty degrees Celsius and is rated for fifty to sixty hertz operation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9070T250D3
• Number of Phases: 1 Phase
• Temperature Rating: 80 Degrees C
• Country of Origin: Mexico
• Warranty Length: 10 years
• Primary Voltage: 208 V
• Secondary Voltage: 120 V
• Temperature Rise: 80 Degrees C
