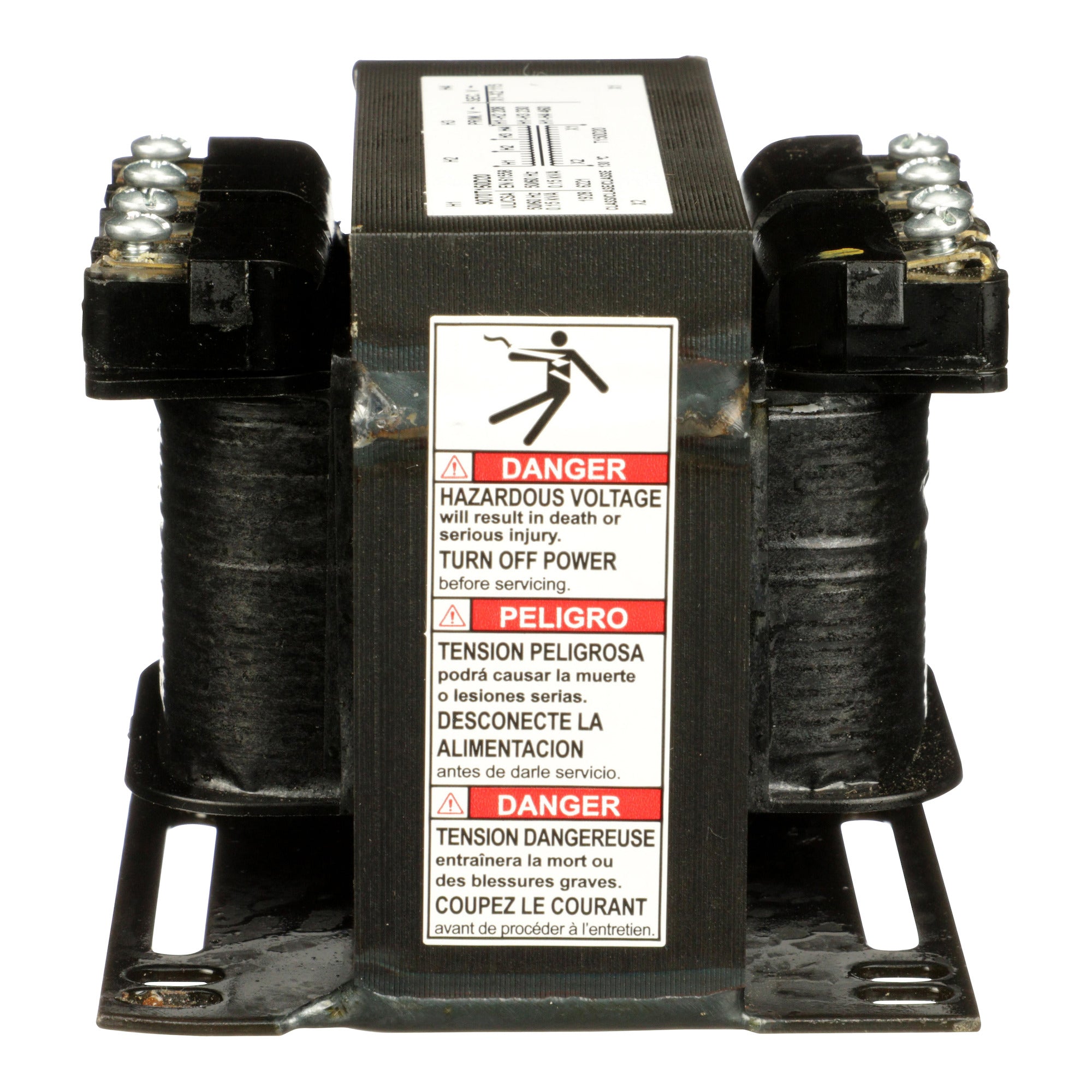

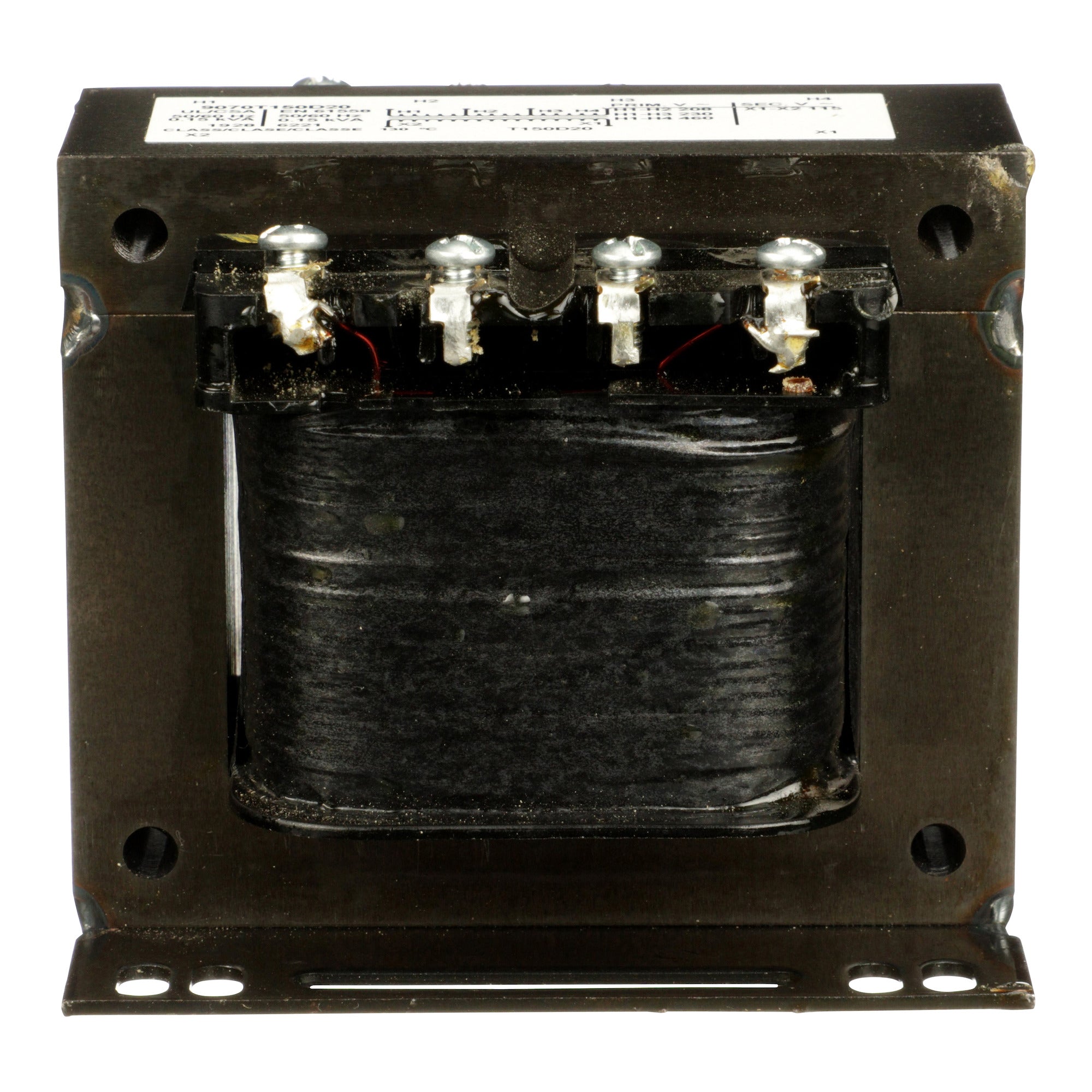

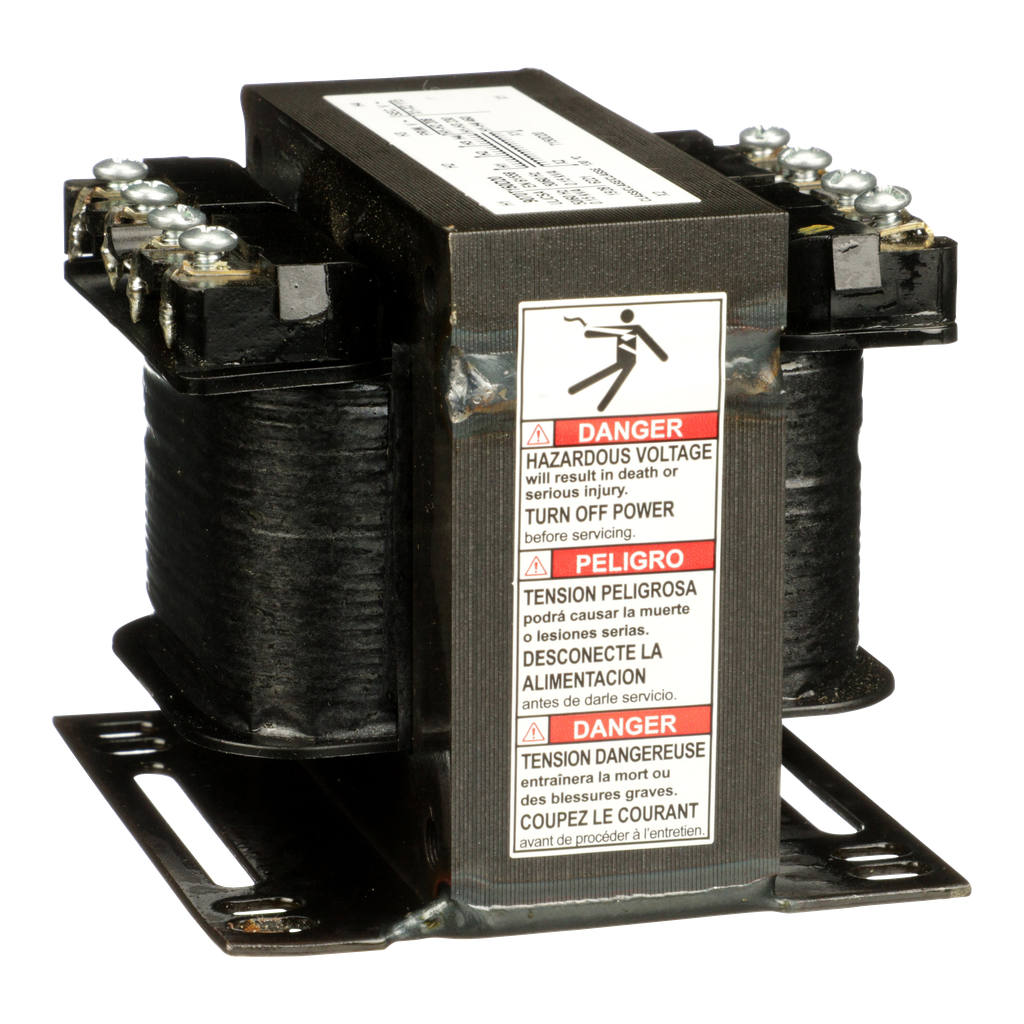

Square D 9070T150D20 150 VA 208/230/460 VAC Primary 115 VAC Secondary 1-Phase Control Transformer

Product Description

The Square D by Schneider Electric 9070T150D20 is a control transformer designed to meet the needs of various applications. It is suitable for a primary voltage of two hundred eight, two hundred thirty, or four hundred sixty volts and has a secondary voltage of one hundred fifteen volts. This transformer operates on a single phase and provides up to one hundred fifty volt-amperes of power.

• Primary Voltage: 208/230/460 VAC
• Secondary Voltage: 115 VAC
• Temperature Rise: 55 degrees C

Product Highlights

This transformer features low impedance windings for managing high inrush currents, ensuring reliable voltage regulation. It complies with Underwriters Laboratories (UL) standards, making it a trusted choice for industrial use.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9070T150D20
• Power Rating: 150 VA
• Number of Phases: 1 Phase
• Material: Copper winding
• Country of Origin: Mexico
• Warranty Length: 10 years
• Certifications: CSA, UL Listed
• Depth: 3.59 inches
• Width: 3.75 inches
• Height: 3.2 inches
