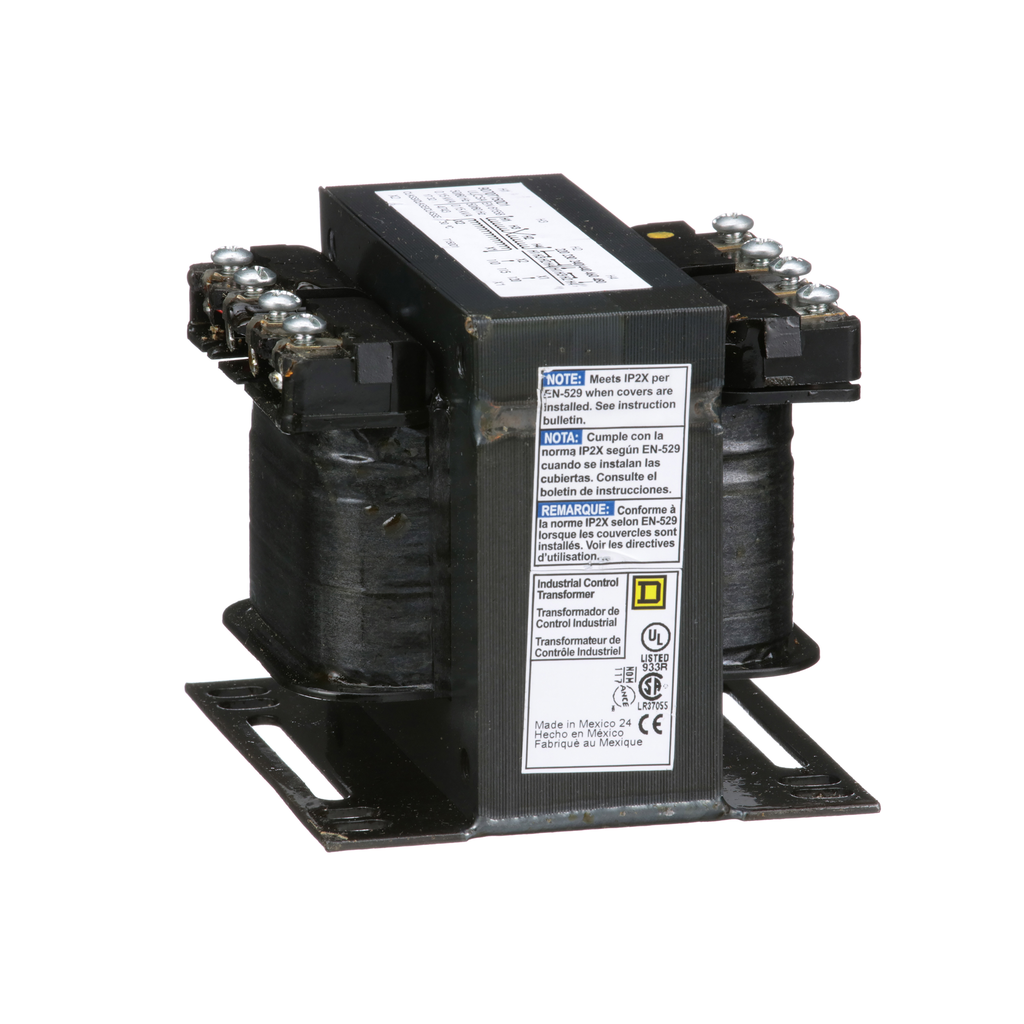

Square D 9070T150D1 Control Transformer 150 VA 240 x 480 VAC Primary 120 VAC Secondary 1-Phase

Product Description

The Square D 9070T150D1 control transformer by Schneider Electric is designed to step down voltage from 240/480V to 120V. This transformer delivers 150VA of power and is suitable for various industrial applications. With its copper windings and vacuum impregnated varnish, this transformer ensures excellent voltage regulation and accommodates high inrush current associated with contactors, starters, solenoids, and relays.

• 150 VA power rating
• Input voltage: 240/480V
• Output voltage: 120V

Product Highlights

Ideal for industrial control systems, commercial buildings, and medical equipment, this transformer offers reliable voltage regulation and protection from voltage fluctuations.

Product Information

Standard Information

• Brand: Square D
• MPN: 9070T150D1

Technical Specifications

• Catalog Number: 9070T150D1
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Warranty Length: 10 years
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120 V
• Power Rating: 150 VA
• Number of Phases: 1
• Material: Copper Windings
• Enclosure Style: Open Device (Not Rated)
• Certifications: UL Listed, CSA Approved
• Height: 3.2 inches
• Width: 3.75 inches
• Depth: 3.59 inches
• Temperature Rating: 55 Degrees C
• Mounting: Foot
• Connection: Screw clamp terminals
