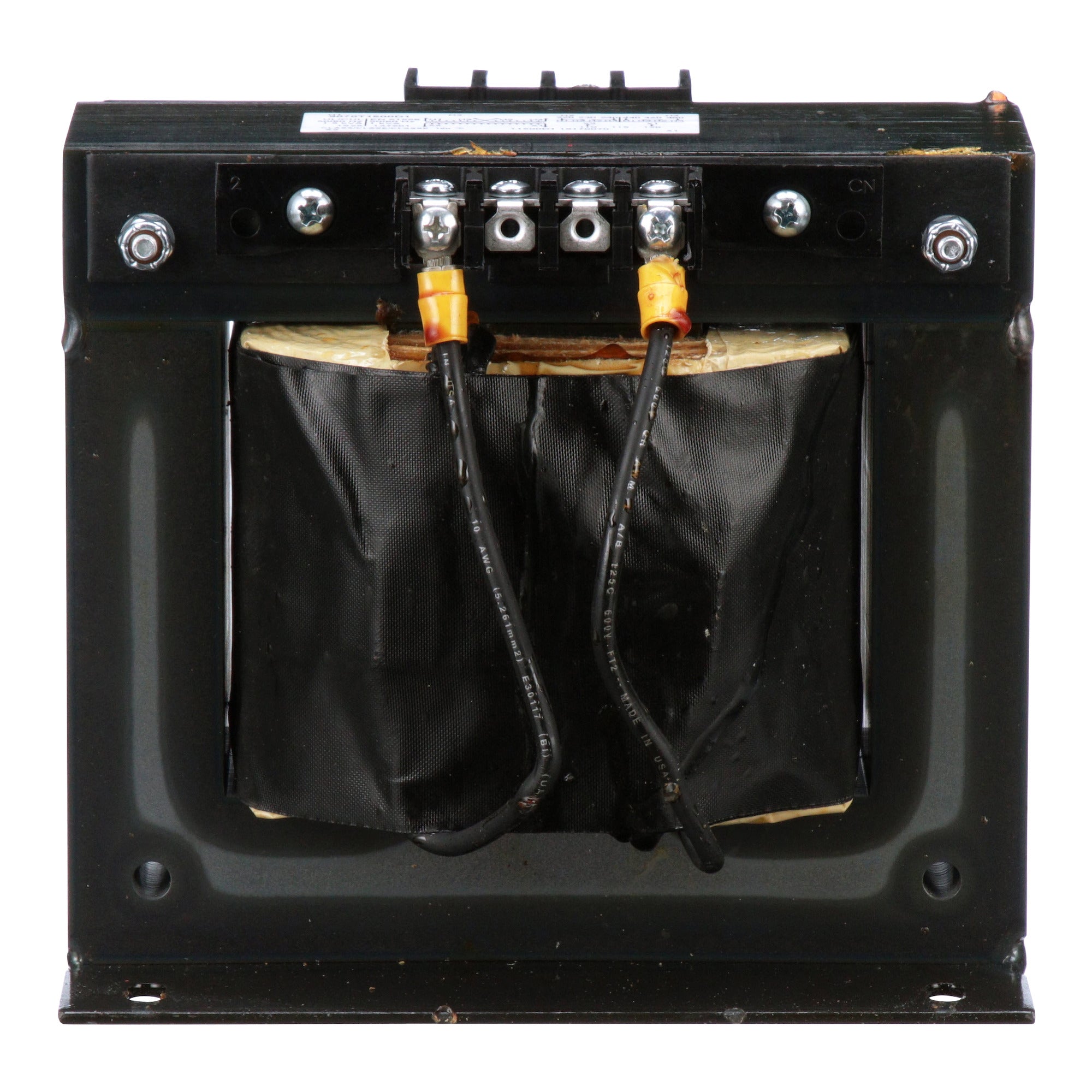

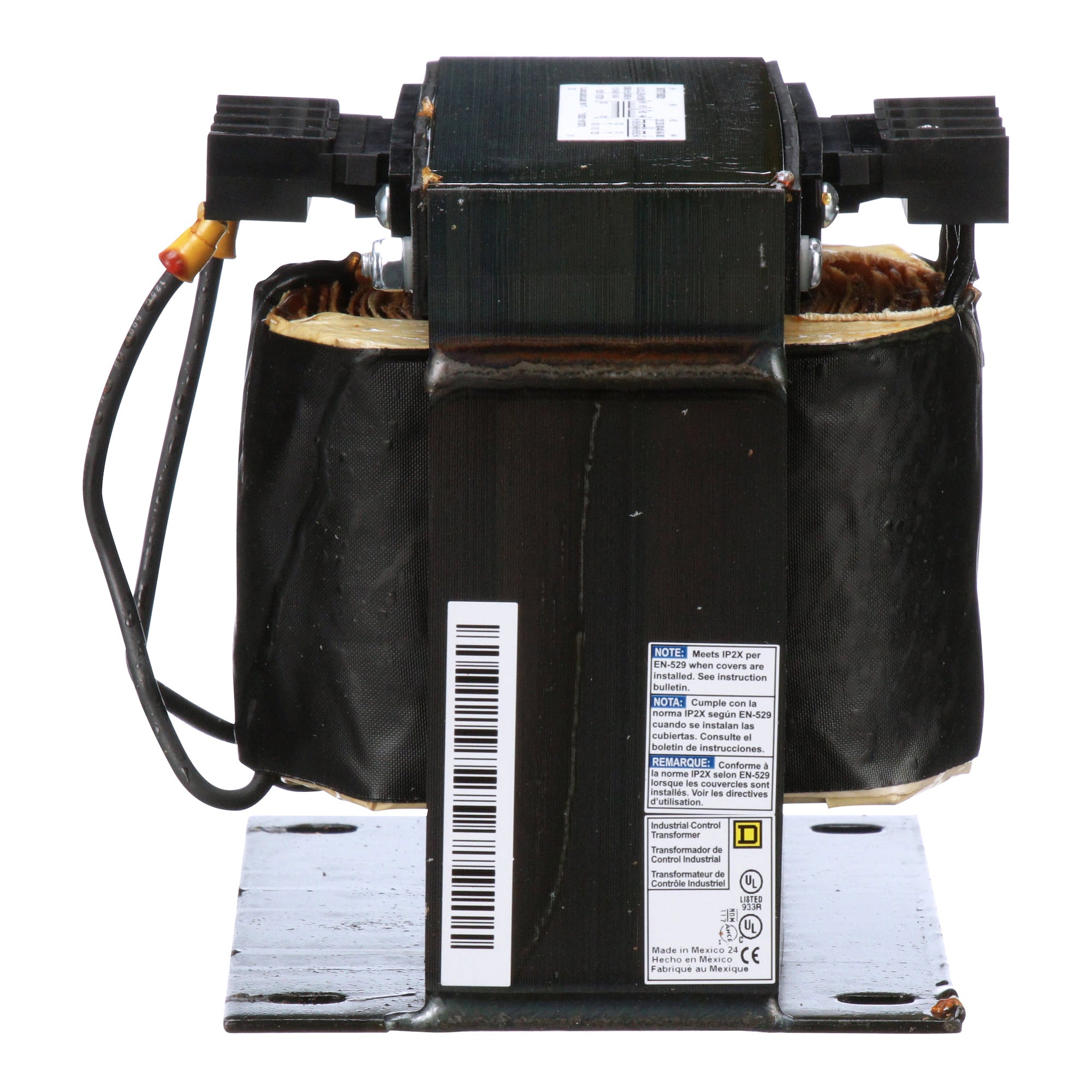

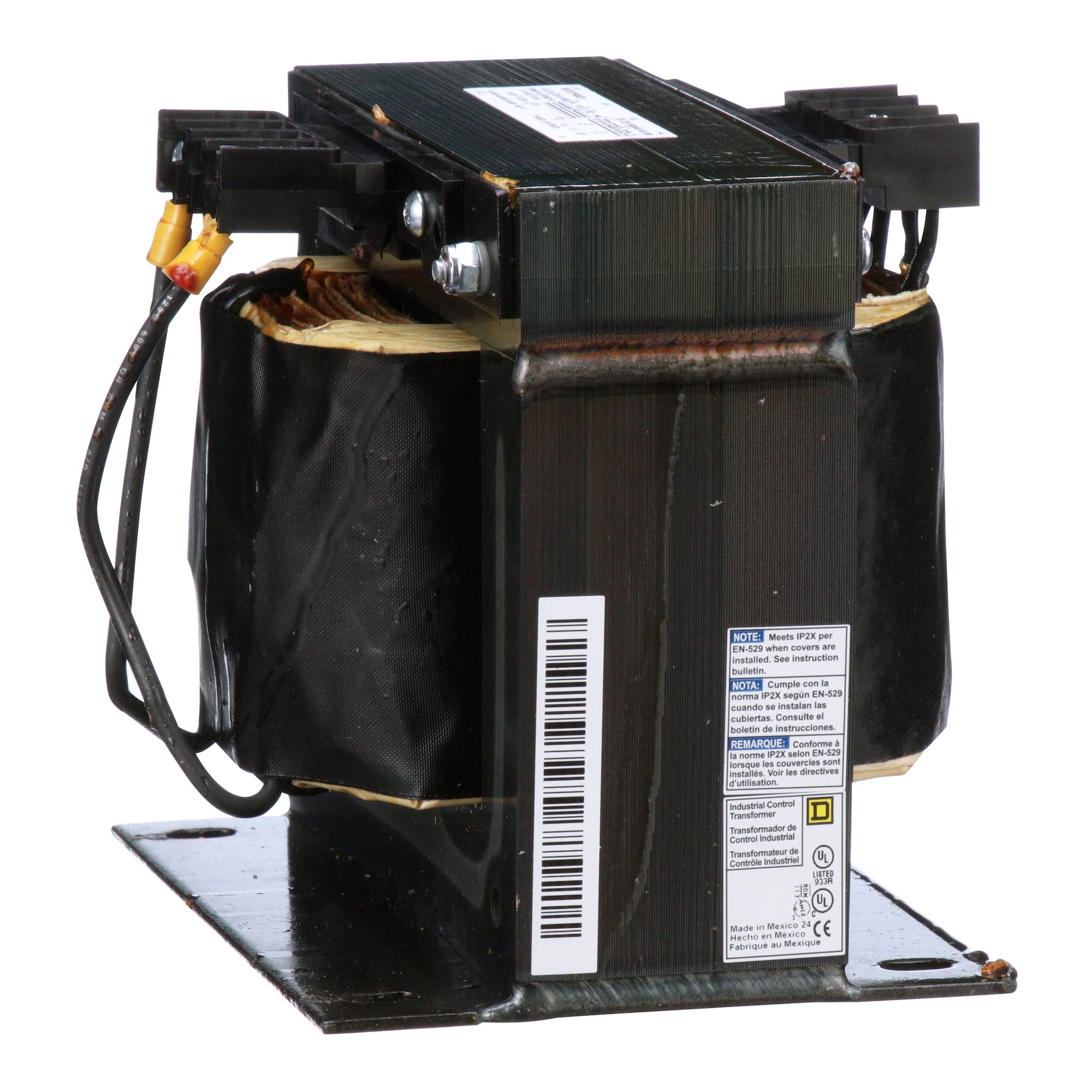

Square D 9070T1500D1 Control Transformer 1500 VA Single Phase 240x480V Primary 120V Secondary

Product Description

The Square D 9070T1500D1 Type T Industrial Control Transformer is engineered to enhance electrical system performance across a variety of applications. Manufactured by Schneider Electric, this transformer utilizes copper winding to ensure high conductivity and minimal power loss.

• Efficient voltage regulation with a power rating of 1500 VA.
• Single-phase configuration suitable for a variety of industrial applications.
• Easy installation with pre-wired leads and screw clamp terminals.

Product Highlights

This transformer is designed for robust performance with 240 x 480 V primary voltage and 120 V secondary voltage, ideal for use in control panels and industrial environments. Its open-type enclosure makes it suitable for general purpose applications where encased transformers are not necessary.

Product Information

Standard Information

• Phase: Single-phase
• Temperature Rise: 115 degrees Celsius

Technical Specifications

• Primary Voltage: 240 x 480V
• Secondary Voltage: 120V
• Product Dimensions (H x W x D): 6.17 inches x 7.06 inches x 5.92 inches
• Compliance: UL, CSA, CE certified
• Warranty: 10-year contractual warranty
• Country of Origin: Mexico
