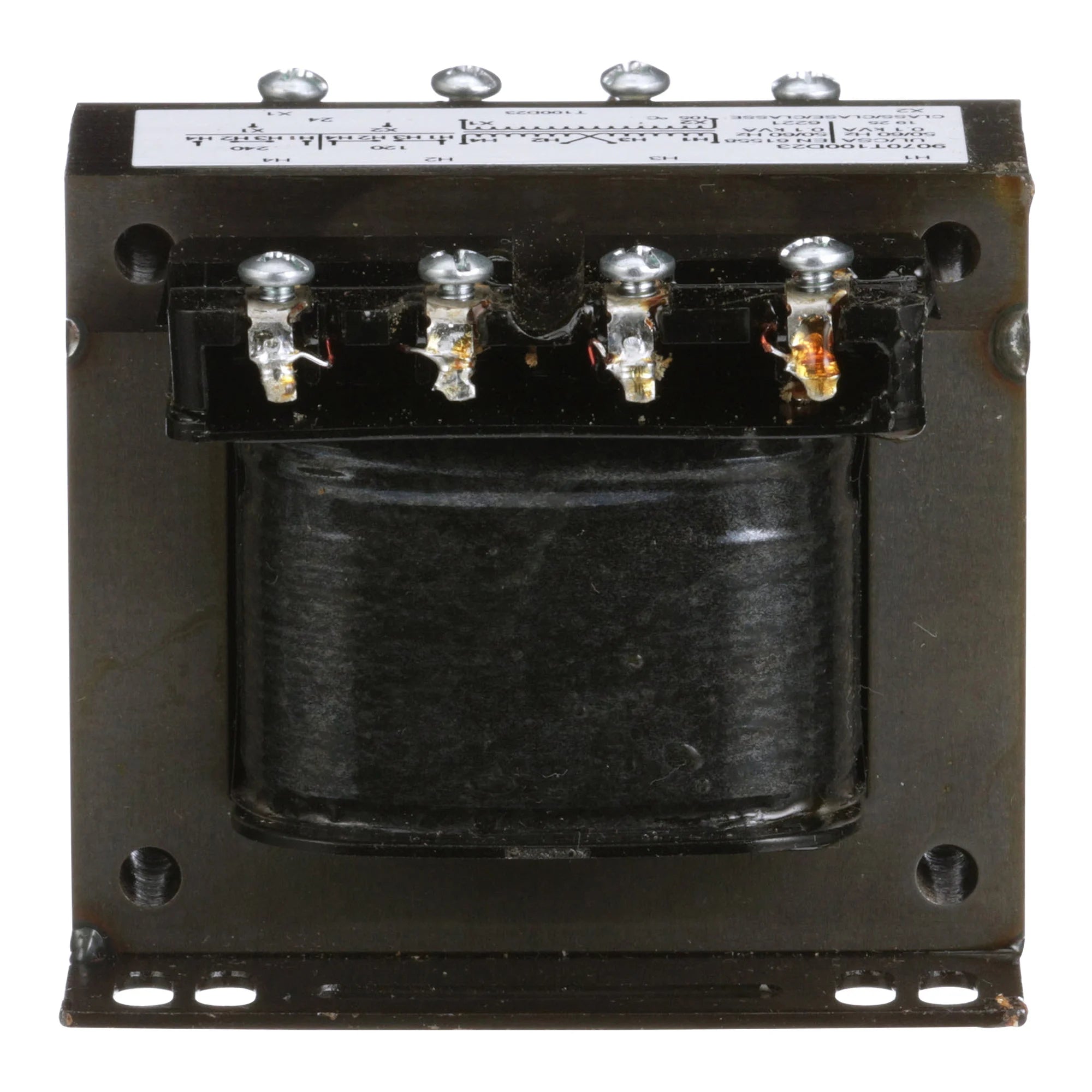

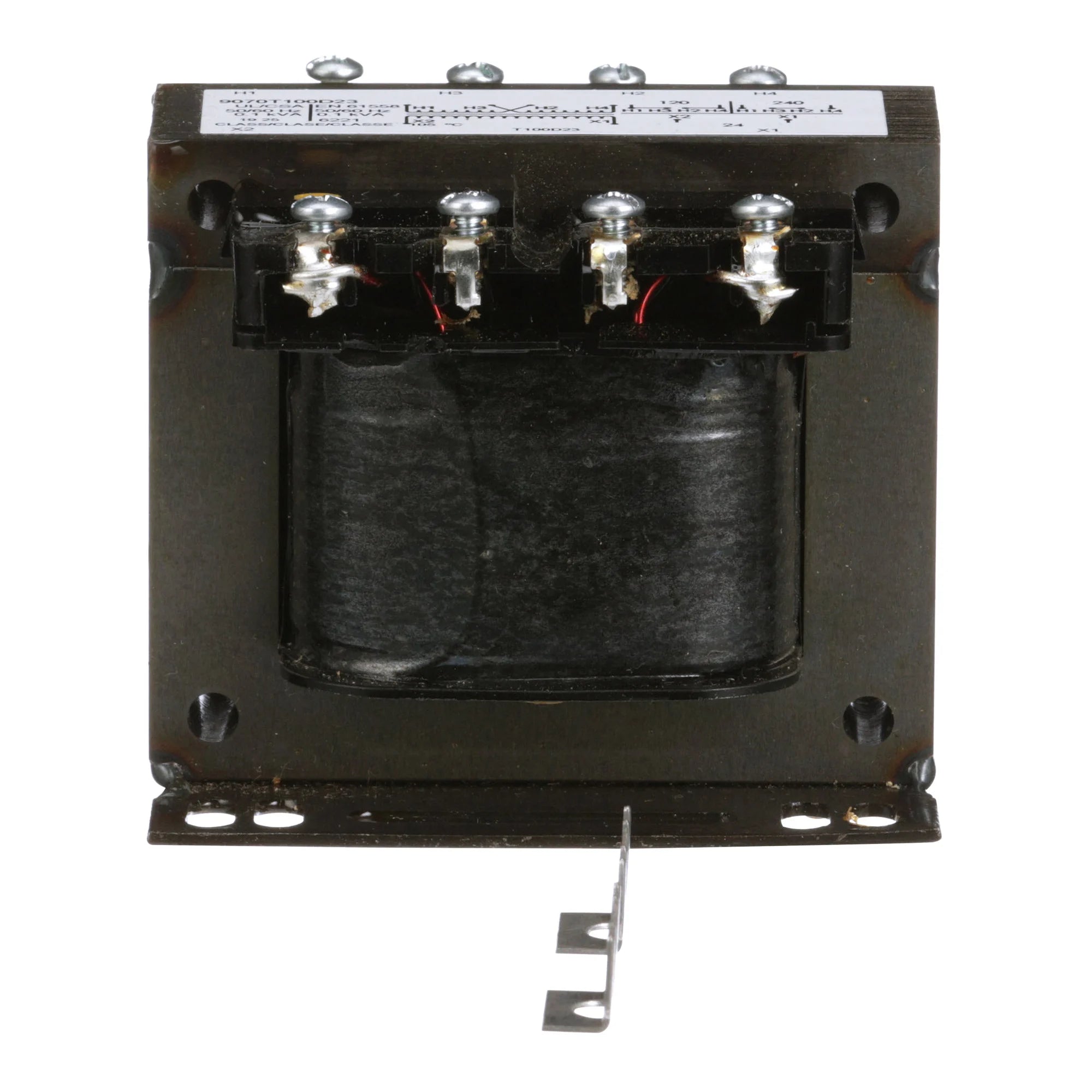

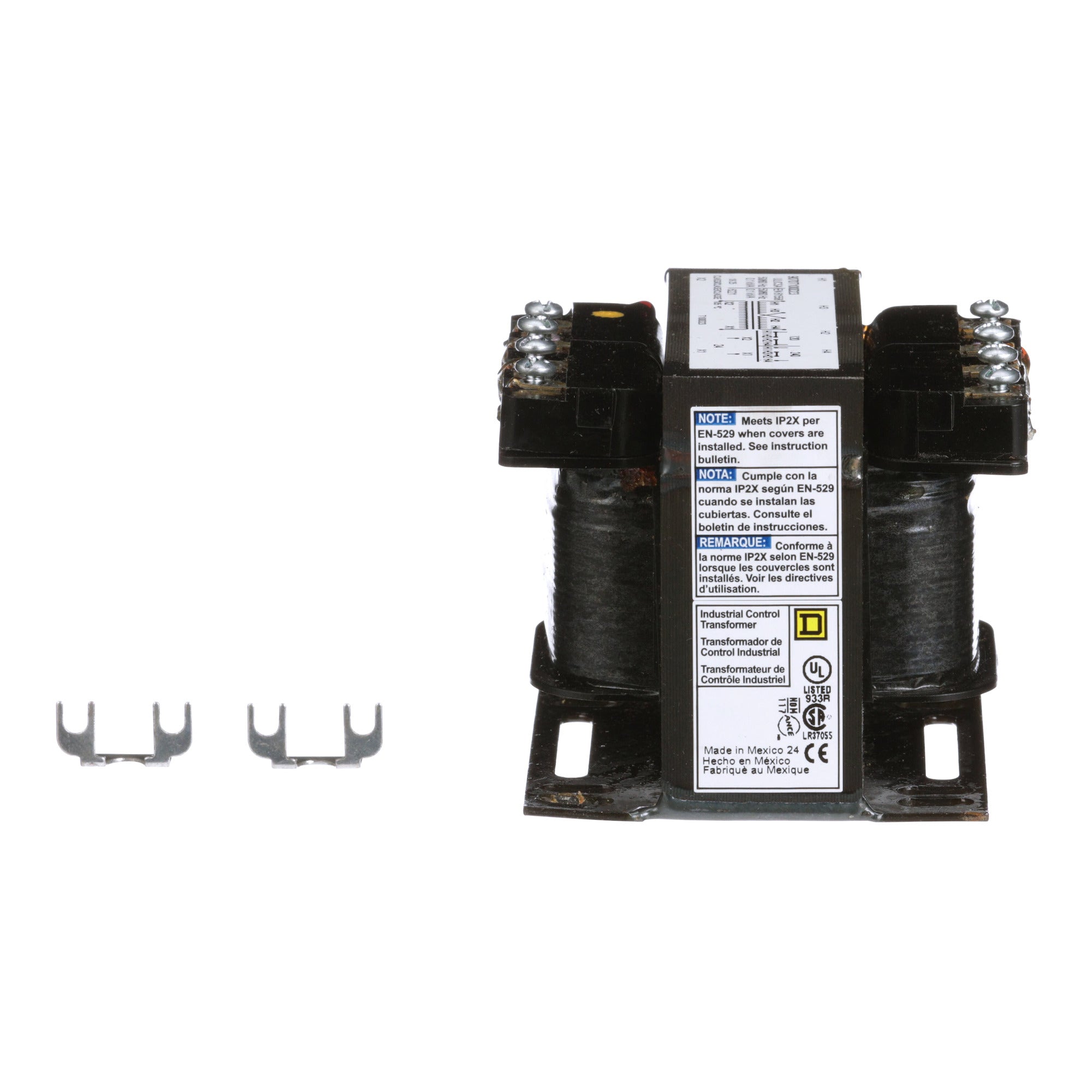

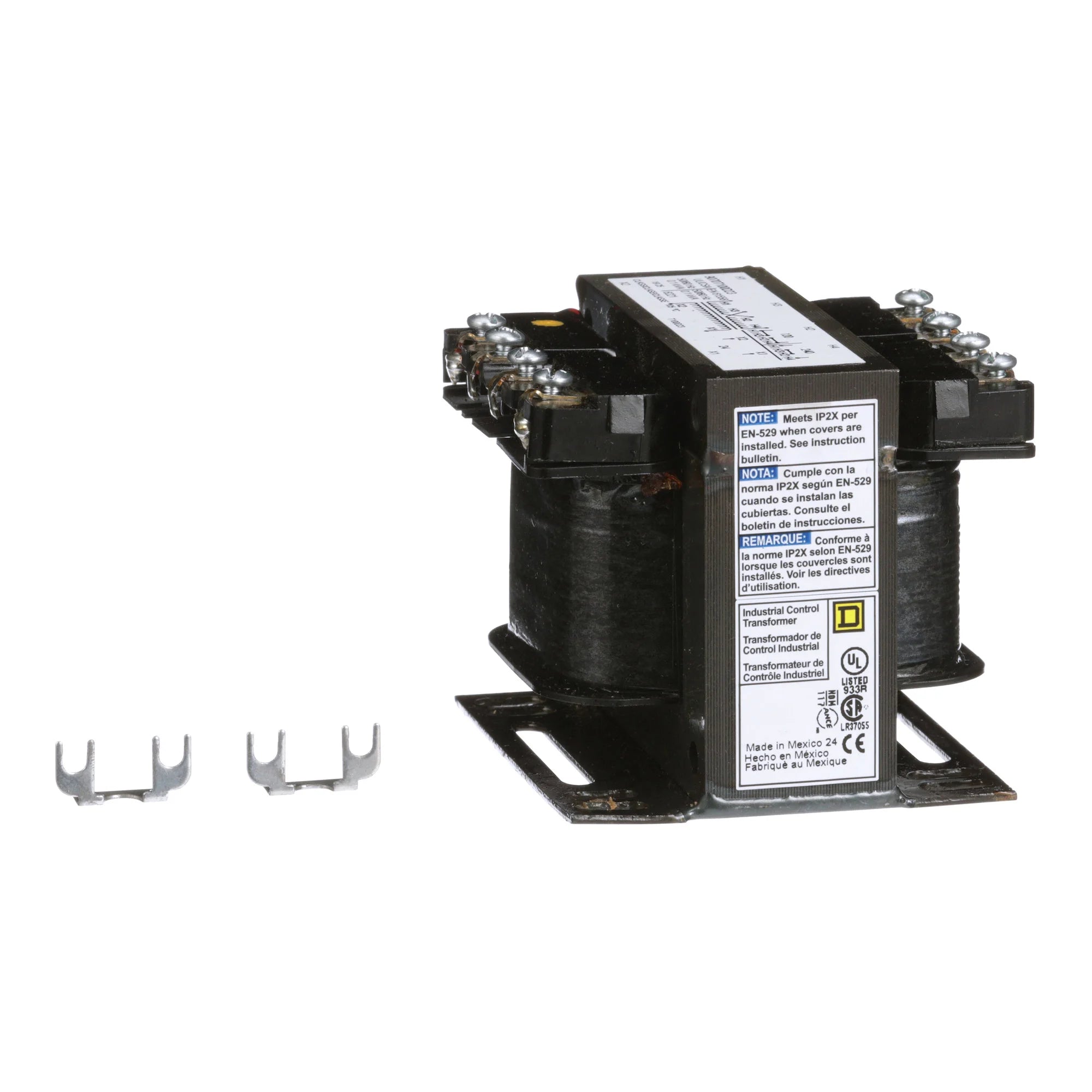

Square D 9070T100D23 100 VA 120 x 240 VAC Primary 24 VAC Secondary 1-Phase Control Transformer

Product Description

The Square D Control Transformer with MPN 9070T100D23 is designed for efficient control in industrial applications. This transformer provides a primary voltage of 120 to 240 VAC, while stepping down to a secondary voltage of 24 VAC. It is suitable for single-phase applications and offers a power rating of one hundred VA.

• Primary Voltage: 120V to 240V
• Secondary Voltage: 24V
• Compliance: UL, CE & CSA standards

Product Highlights

This control transformer features screw clamp terminal connections for secure wiring. It employs copper winding for enhanced conductivity and heat dissipation. The product dimensions include a height of two point eighty-nine inches, a width of three point thirty-eight inches, and a depth of three point thirty-four inches.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric
• Warranty Length: Ten years

Technical Specifications

• Catalog Number: 9070T100D23
• Power Rating: 100 VA
• Primary Voltage: 120V to 240V
• Secondary Voltage: 24V
• Number of Phases: 1 Phase
• Country of Origin: Mexico
• Temperature Rating: Fifty-five degrees C
• Connections: Screw clamp terminals
