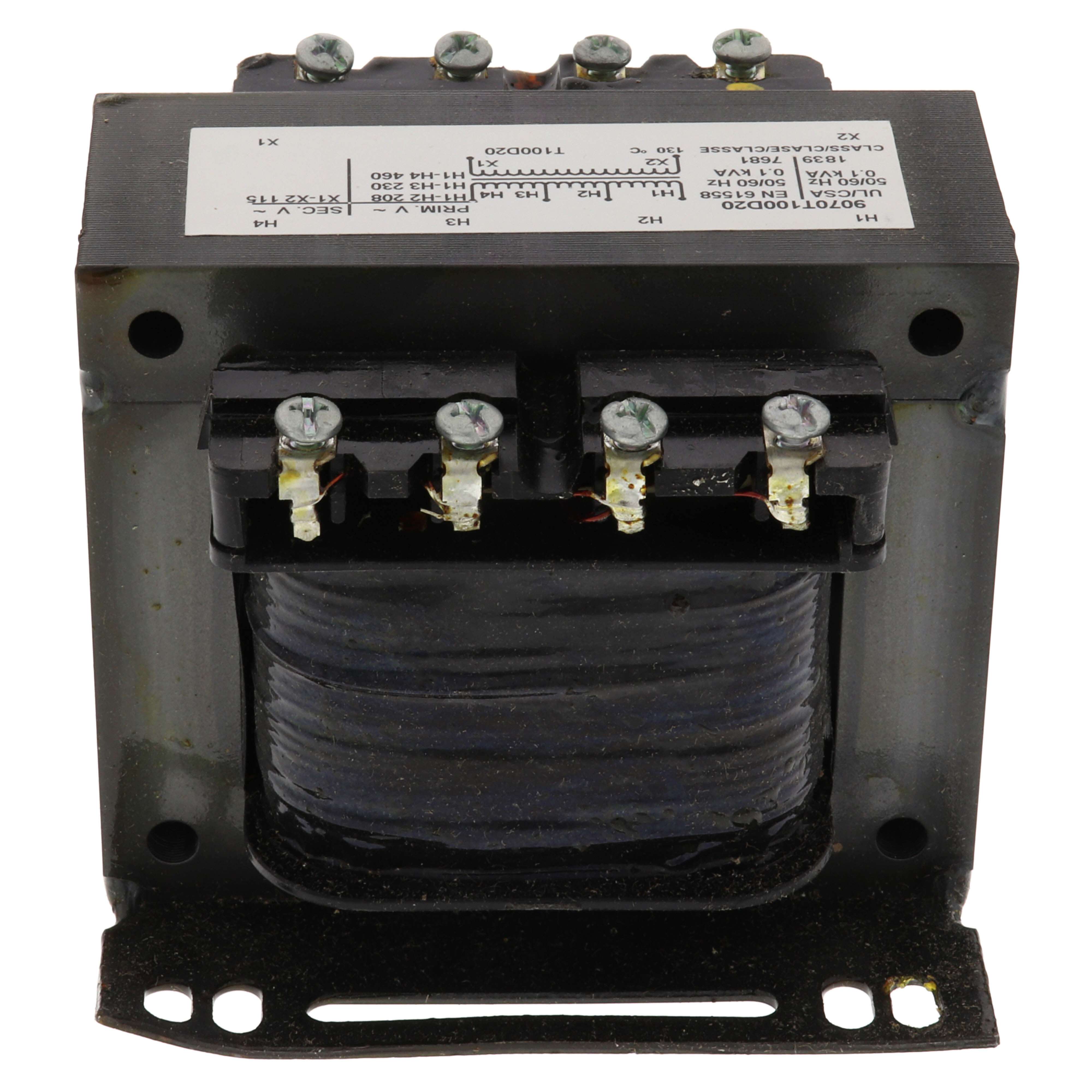

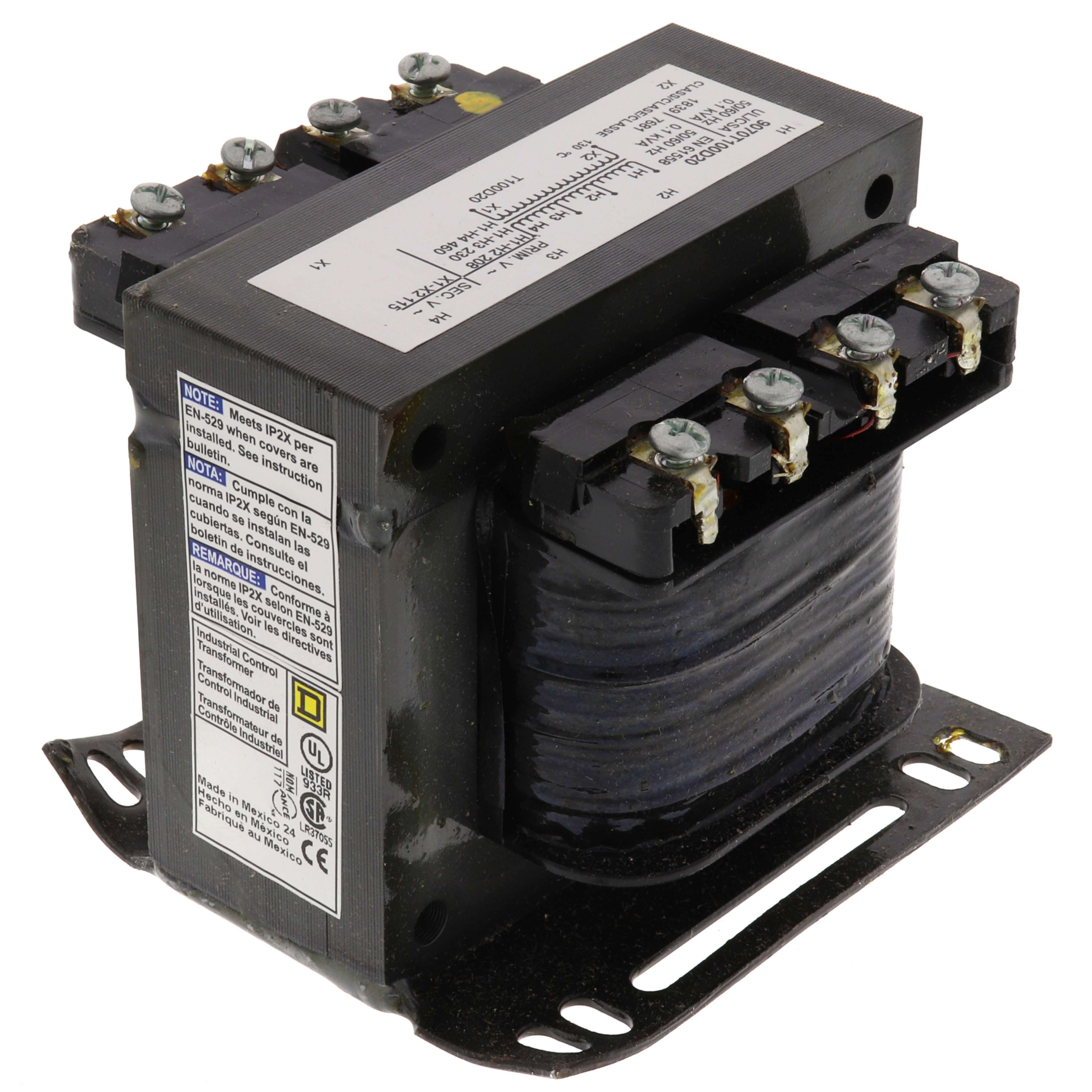

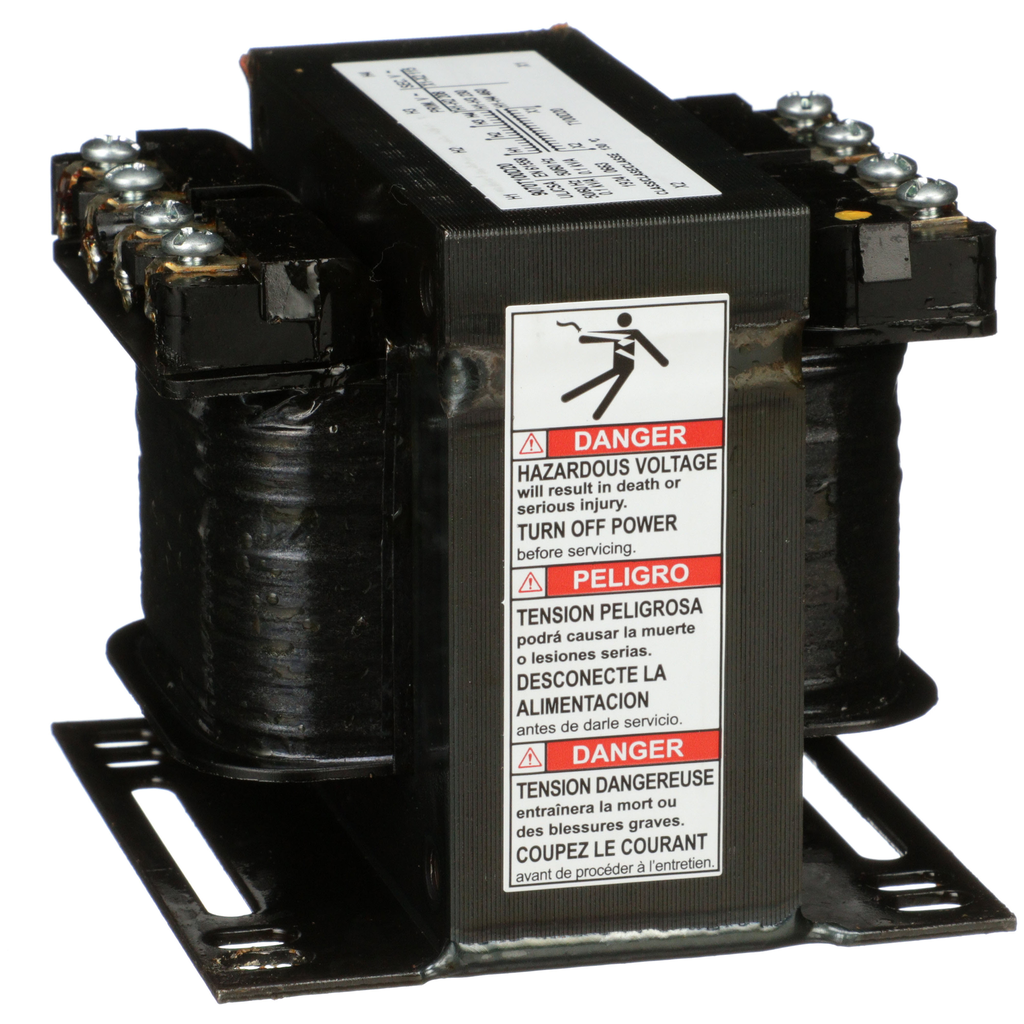

Square D 9070T100D20 100 VA 208/230/460 VAC Primary 115 VAC Secondary 1-Phase Control Transformer

Product Description

Square D offers the 9070T100D20 control transformer for various electrical applications. This unit is designed with a primary voltage of 208/230/460 volts and a secondary voltage of 115 volts. The transformer is rated for 100 VA and is suitable for one-phase applications. It features screw clamp terminals for easy connections.

• Power rating: 100 VA
• Primary voltage: 208/230/460 V
• Secondary voltage: 115 V

Product Highlights

This transformer is ideal for control circuits and other small power applications. It meets UL, CE, and CSA standards for safety and reliability.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Product Number: 9070T100D20

Technical Specifications

• Type: Industrial Control Transformer
• Phase: 1 Phase
• Material: Copper winding
• Dimensions: Height 3.2 inches, Width 3.75 inches, Depth 3.59 inches
• Connections: Screw clamp terminals
• Certifications: UL Listed, CSA File LR37055
• Warranty: 10 years
