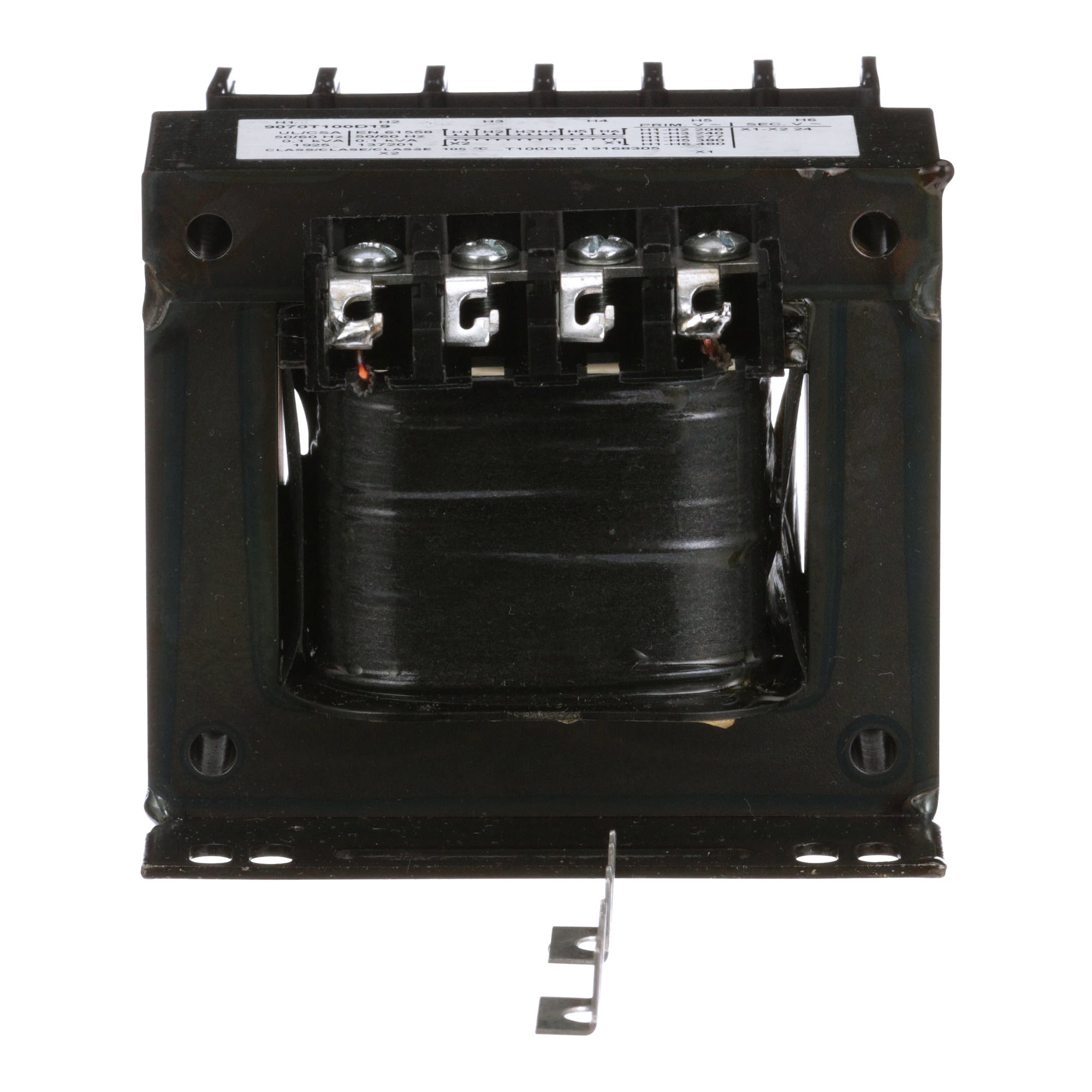

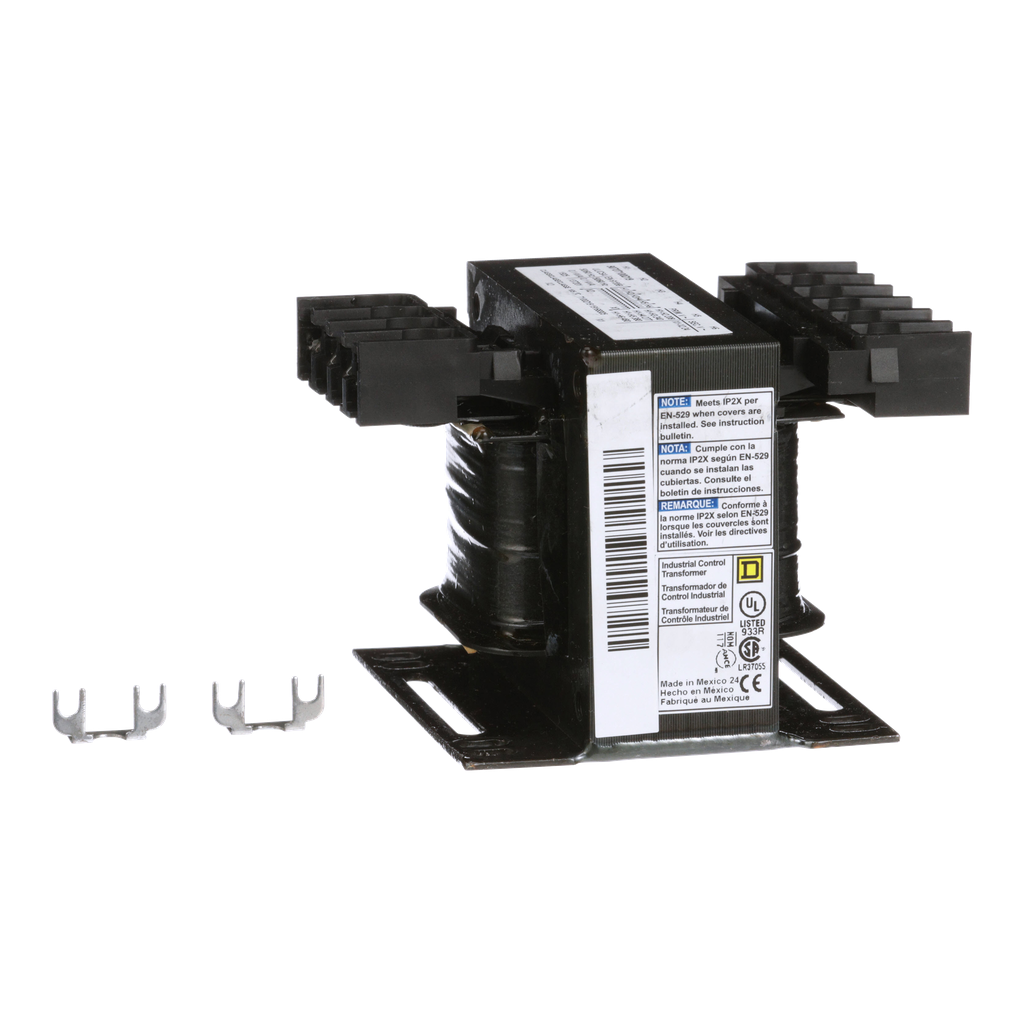

Square D 9070T100D19 100 VA 208/240/277/380/480 VAC Primary 24 VAC Secondary 1-Phase Control Transformer

Product Description

The Square D 9070T100D19 is a control transformer designed for reliable voltage conversion. It operates with a primary voltage range of two hundred eight to four hundred eighty volts and delivers a secondary output of twenty-four volts. This transformer is suitable for single-phase applications. Schneider Electric constructs it with advanced materials to ensure safety and efficiency in industrial settings.

• Power rating of 100 VA.
• Includes internally pre-wired primary and secondary leads for easy installation.
• Meets UL, CE, and CSA standards.

Product Highlights

This control transformer combines performance with compact size, making it ideal for various applications including industrial control systems and power distribution networks.

Product Information

Standard Information

• Brand: Square D
• MPN: 9070T100D19

Technical Specifications

• Power Rating: 100 VA
• Primary Voltage: 208V to 480V
• Secondary Voltage: 24V
• Phase: 1 Phase
• Height: 3.2 inches
• Width: 3.75 inches
• Depth: 3.59 inches
• Material: Copper winding
• Connection Type: Screw clamp terminals
• Country of Origin: Mexico
• Warranty: 10 years
• Compliance: UL, CE, CSA
