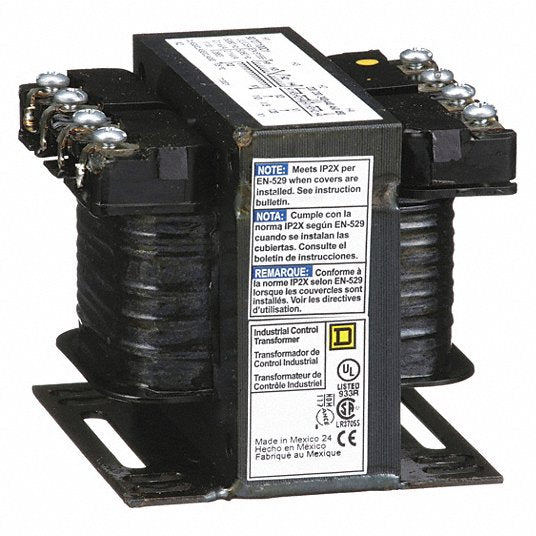

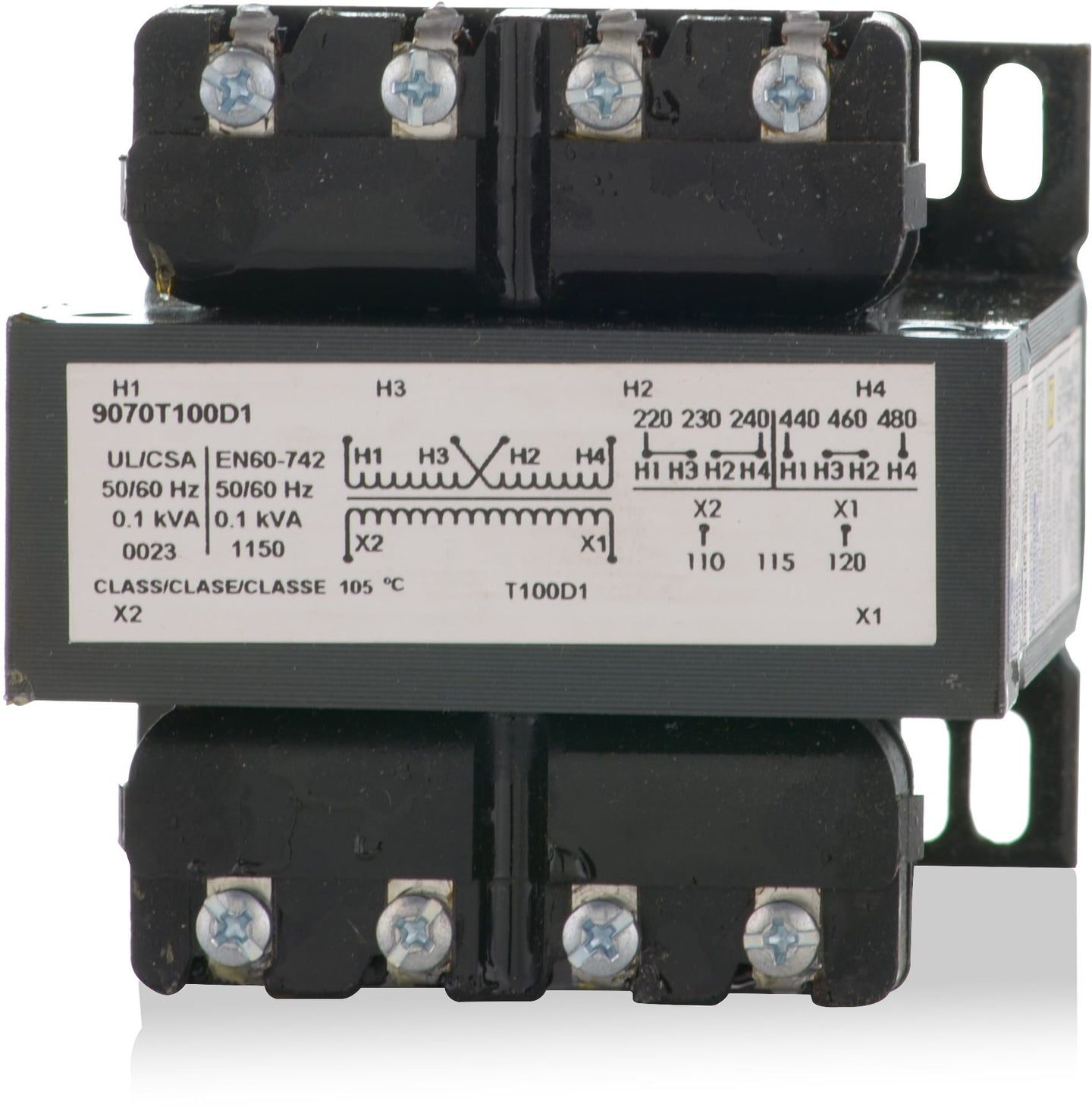

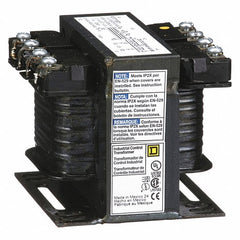

SQUARE D 9070T100D1 Control Transformer 100VA (2.89 In. H)

Product Description

The SQUARE D 9070T100D1 control transformer is a reliable device designed for industrial power applications. It features a 100VA capacity with a primary voltage of 240/480VAC and a secondary voltage of 120VAC. This single-phase control transformer meets UL, CSA, and CE standards, ensuring quality and safety for industrial use.

• 100VA control transformer with dual primary voltage options: 240/480V.
• UL, CSA, and CE certified for safety and compliance.
• Ideal for panel builders and OEMs needing a dependable power supply.

Product Highlights

This transformer is engineered for step-down conversion, meeting a variety of electrical needs.

Product Information

Standard Information

• Brand: SQUARE D
• MPN: 9070T100D1

Technical Specifications

• Current Rating: 2.5 Amps
• Input Voltage: 240V AC / 480V AC
• Output Voltage: 120V AC
• Power Rating: 100 VA
• Overall Height: 2.89 inches
• Overall Width: 3.38 inches
• Overall Depth: 3.34 inches
• Weight: 3.8 lbs
• Phase: Single
• Enclosure Style: Open
• Temperature Rise: 55 °C
• Frequency: 50/60 Hz
