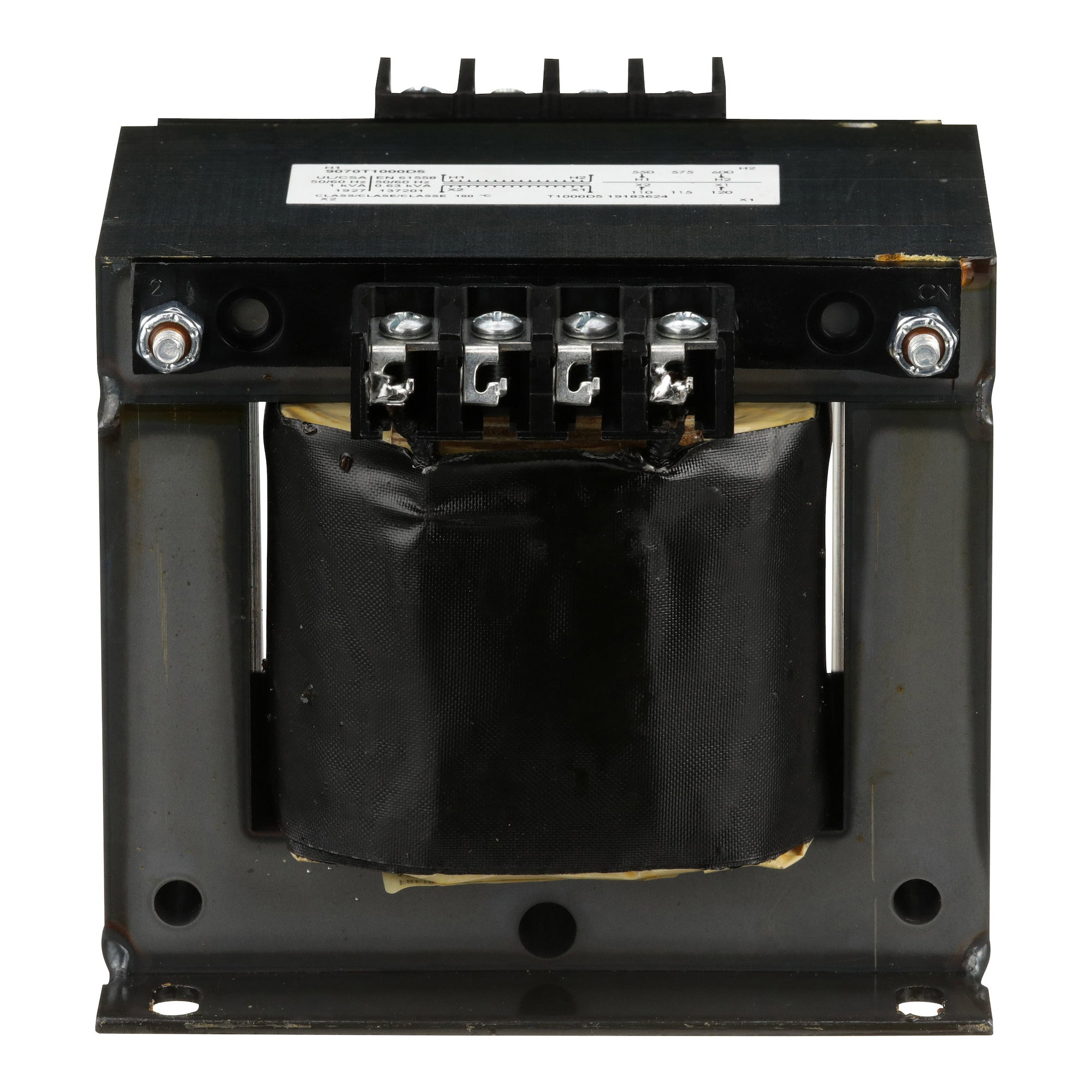

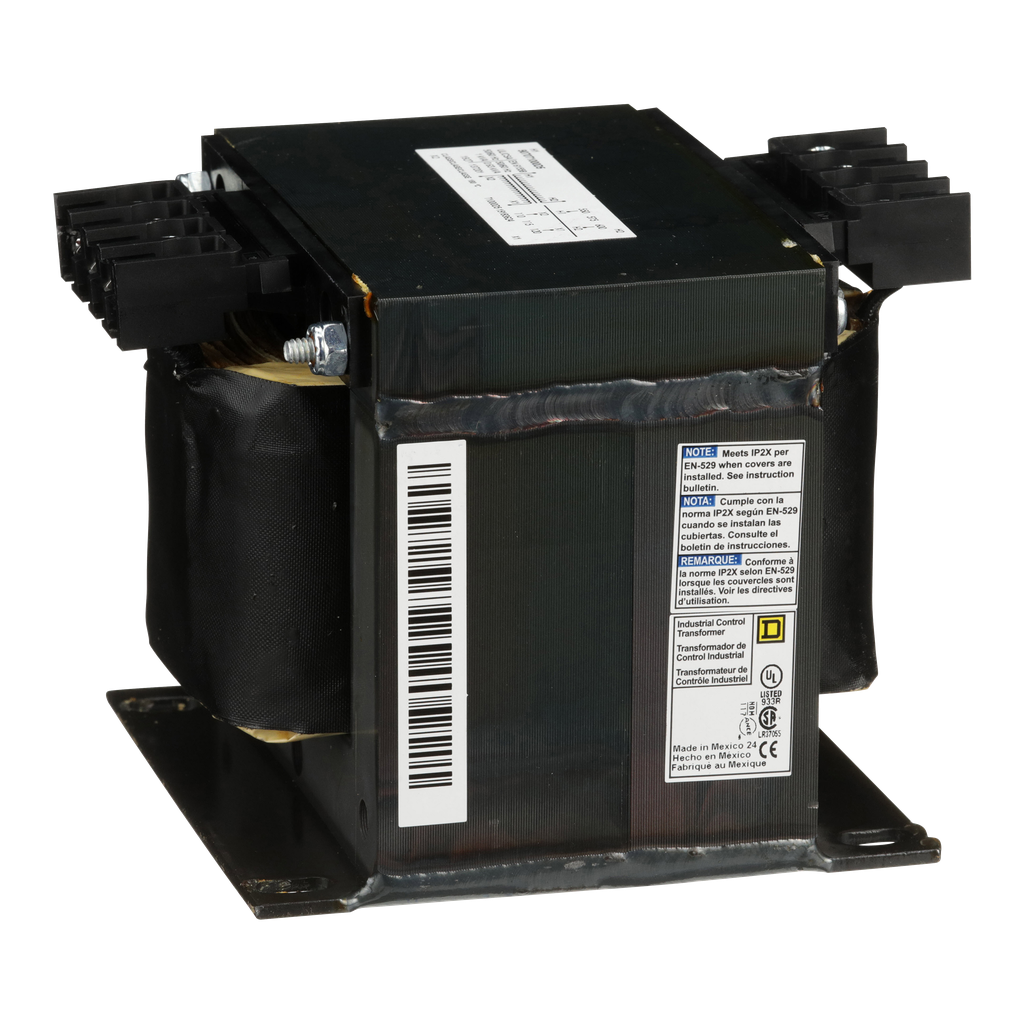

Square D 9070T1000D5 1000 VA 600 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

Product Description

The Square D 9070T1000D5 is a 1000 VA control transformer designed for single-phase operation. It features a primary voltage of six hundred volts with options of five hundred and fifty or five hundred and seventy-five volts, and a secondary voltage of one hundred and twenty volts. This transformer is suitable for various applications, including industrial controls.

• Power Rating: 1000 VA
• Temperature Rise: One hundred and fifteen degrees Celsius
• Dimensions: Four point five one inches high, five point twenty-five inches wide, and six point three inches deep

Product Highlights

This transformer features screw clamp terminal connections and uses copper for its winding, ensuring high performance and reliability. It complies with UL, CE, and CSA standards, making it suitable for various industrial environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9070T1000D5
• Primary Voltage: 600V or 575V or 550V
• Secondary Voltage: 110V
• Number of Phases: 1 Phase
• Temperature Rating: 115 degrees C
• Power Rating: 1000 VA
• Country of Origin: USA
• Warranty Length: 18 months
