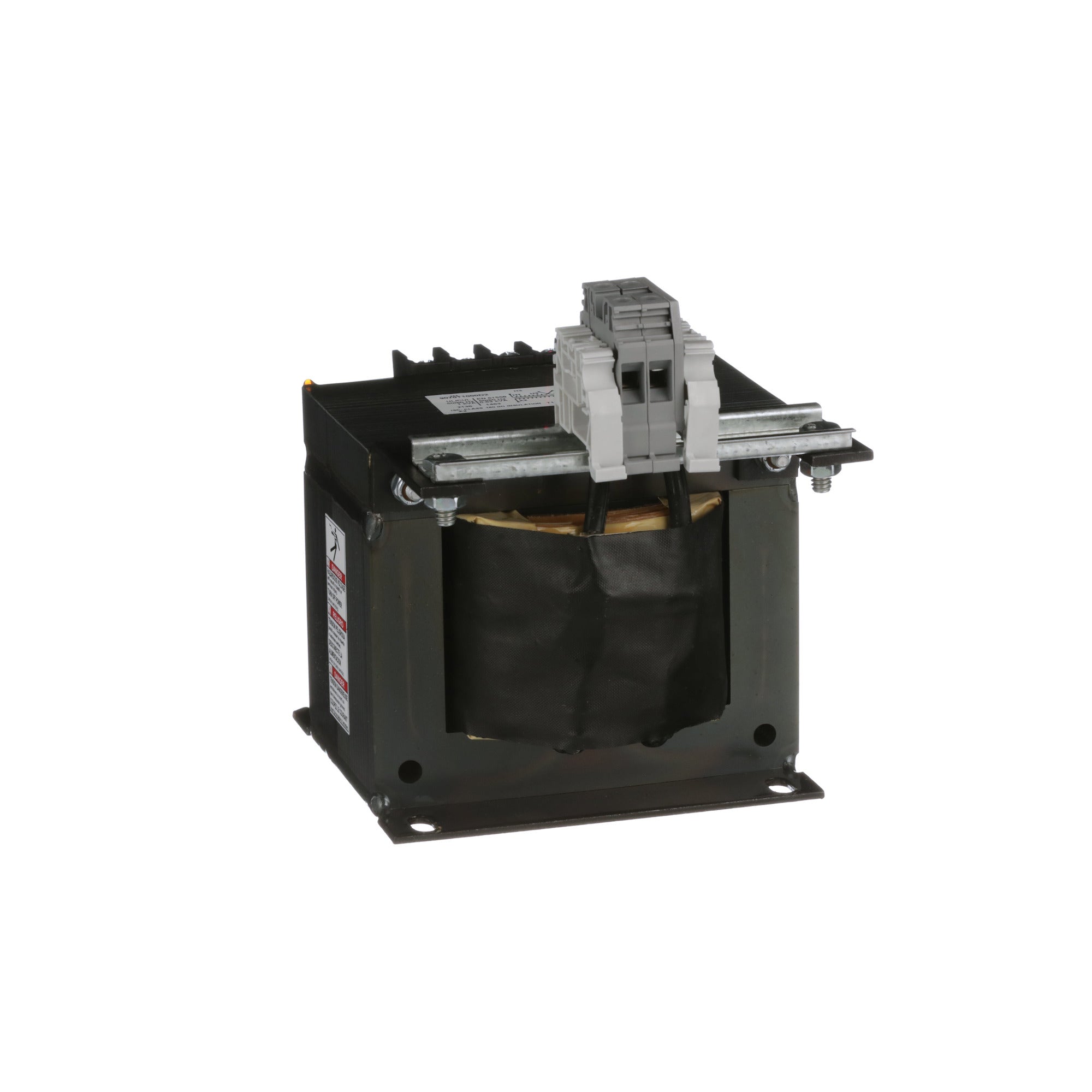

Square D 9070T1000D2 1000 VA 240 x 480 VAC Primary 24 VAC Secondary Control Transformer

Product Description

The Square D 9070T1000D2 is a control transformer designed for industrial applications. This transformer operates at a primary voltage of two hundred forty volts to four hundred eighty volts and provides a secondary voltage of twenty-four volts. It has a power rating of one thousand volt-amperes and is single-phase. It features low impedance windings which help manage high inrush currents while maintaining voltage regulation. The product includes installable accessories such as covers and fuse blocks, allowing for flexibility in installation and configuration. It is designed to comply with UL, CE, and CSA standards.

• Primary voltage: 240/480 volts
• Secondary voltage: 24 volts
• Temperature rise: one hundred fifteen degrees Celsius

Product Highlights

This transformer includes screw clamp terminal connections and a copper winding structure for efficient operation. The dimensions are four point five one inches in height, five point two five inches in width, and six point three inches in depth. Compatible with the FSC2 fingersafe cover.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: United States

Technical Specifications

• Catalog Number: 9070T1000D2
• Power Rating: 1000 VA
• Number of Phases: 1 Phase
• Material: Copper: Winding
• Warranty Length: 10 years
• Compliance: UL, CE, CSA
