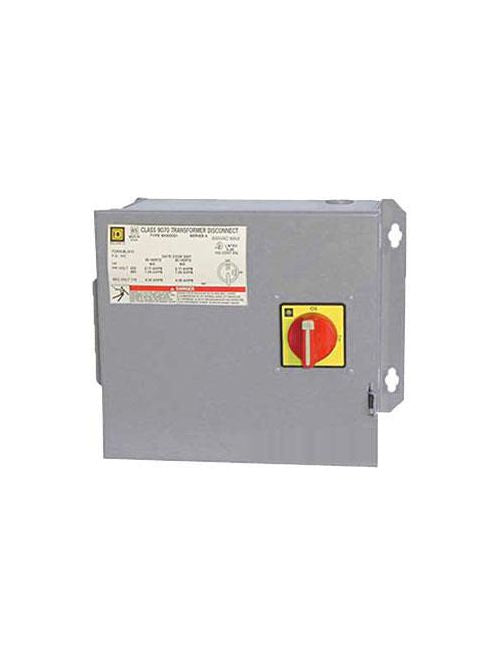

Square D 9070SK1000G1D1 1000 VA 240 x 480 VAC Primary 120 VAC Secondary NEMA 1 Control Transformer Disconnect

Product Description

The Square D 9070SK1000G1D1 is a transformer disconnect designed for versatility in power distribution. This model operates at 1000 VA with a primary voltage of 240 to 480 VAC and a secondary voltage of 120 VAC. The enclosure adheres to NEMA 1 standards, providing an effective solution for internal applications where protection from dust is needed.

• Transformers suitable for indoor use
• Single-phase design
• Certifications from CSA and UL

Product Highlights

Utilizing screw clamp terminals, this disconnect ensures a secure connection for electrical applications. It is important for service and maintenance, allowing for safe disconnection of electrical circuits.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Power Rating: 1000 VA
• Primary Voltage: 240 V
• Secondary Voltage: 120 V
• Number of Phases: 1 Phase
• Enclosure: NEMA 1 standard
• Temperature Rise: 115 degrees C
• Warranty Length: 18 months
• Country of Origin: USA
