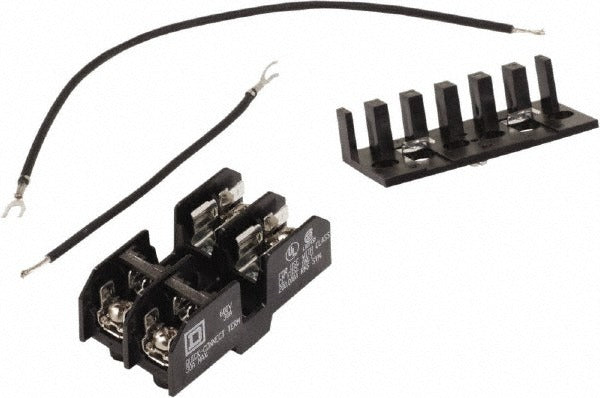

Square D 9070FB2B Fuse Block 2 Pole 120 Volt Class T

Product Description

The SQUARE D 9070FB2B is a 2-pole fuse block rated at 120 volts, designed to provide a secure, code-compliant fusing point in industrial control panels, transformer secondaries, and machine tool wiring applications. It accepts Class T fuses with a 13/32 inch diameter and a 1-1/2 inch fuse length, giving technicians a reliable overcurrent protection mounting solution. Built to meet UL, CSA, CE, and NOM certification standards, this fuse block is suited for both OEM panel builds and field service replacement work. Electricians and controls technicians typically install this part in low-voltage control circuits and secondary power distribution assemblies.

The 9070FB2B is well matched to 120-volt single-phase control circuits found in residential and light commercial HVAC equipment, industrial machinery control panels, and transformer secondary wiring enclosures. Its 2-pole configuration allows simultaneous fusing of both legs in a circuit, making it appropriate for applications where individual pole protection is required. The compact body dimensions allow installation in standard enclosures with limited interior space.

Key Features

• 2-pole design provides independent fuse protection for each circuit leg
• Rated for 120 volts, suitable for common low-voltage control circuit applications
• Accepts Class T fuses at 13/32 inch diameter and 1-1/2 inch fuse length
• UL Listed, CSA Certified, CE Marked, and NOM Certified for broad code compliance
• Compact body fits standard control panel enclosures

Compatibility

Designed as an OEM-style replacement fuse block for 120-volt control circuits requiring Class T fuse protection in 2-pole configurations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the circuit before removing or installing the fuse block. Verify that replacement fuses match the Class T rating, diameter, and length specified for this block before energizing. Do not exceed the rated voltage or attempt to install fuse classes other than Class T in this holder.
