Square D 9070EO1D1 Control Transformer 50VA 240/480VAC to 120VAC Single Phase

Product Description

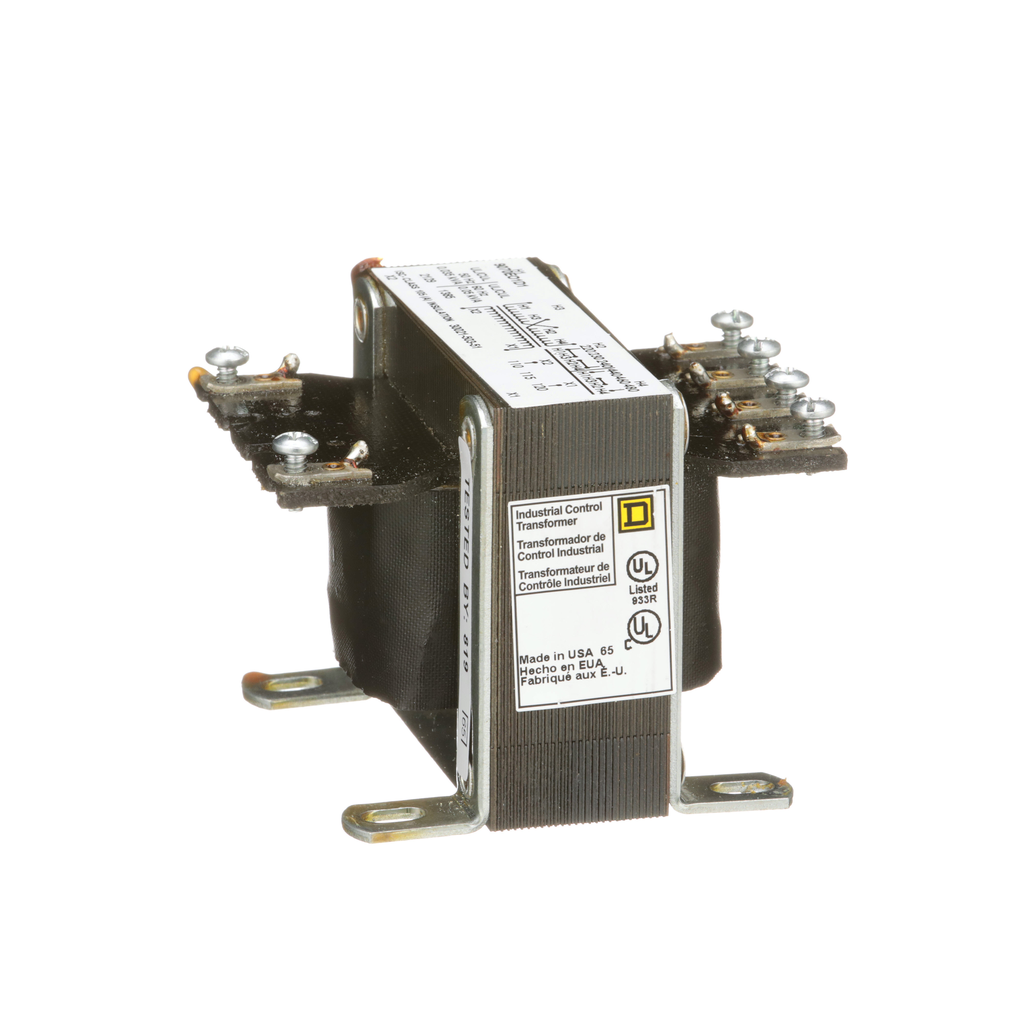

The Square D 9070EO1D1 Industrial Control Transformer is engineered for high performance, offering efficient voltage regulation and exceptional temperature management. Ideal for a wide range of industrial applications, this transformer ensures reliable power conversion from 240/480VAC to 120VAC. Its robust design accommodates the high inrush currents typical in industrial settings.

• Exceptional voltage regulation for stable power supply.
• Designed to support high inrush currents in industrial settings.
• Efficient thermal management maintains optimal performance.

Product Highlights

This transformer is recognized for its durability and compliance with stringent industry standards including CE, CSA, and UL Listings. The open-style design with screw clamp terminals allows for easy installation and maintenance. Furthermore, it features a compact footprint, ideal for installations with limited space.

Product Information

Standard Information

• Brand: Square D by Schneider Electric
• Model Number: 9070EO1D1
• Warranty: 18 months contractual warranty

Technical Specifications

• Primary Voltage: 240 x 480V, 230 x 460V, or 220 x 440V
• Secondary Voltage: 120V
• Phase: 1-phase
• Temperature Rise: 80 degrees C
• Enclosure: Open device, not rated
• Country of Origin: USA
• UPC: 785901831617
