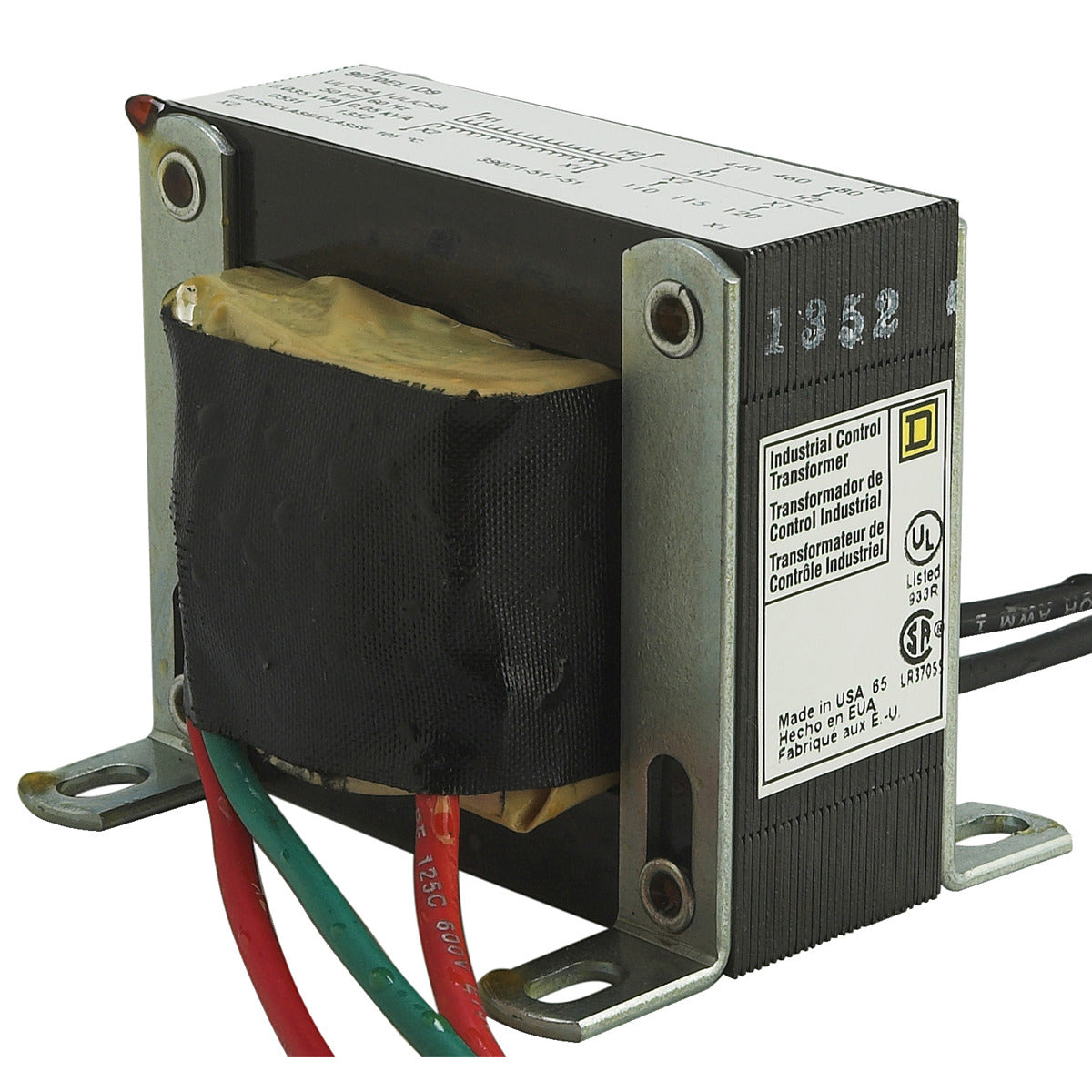

Square D 9070EL1D9 Transformer 50 VA 480 Volt Primary 120 Volt Secondary

Product Description

Square D offers the 9070EL1D9 transformer, designed for various industrial applications. This transformer operates at a primary voltage of 480 volts and a secondary voltage of 120 volts, ideal for control power needs. The unit is one phase with a capacity of fifty volt-amperes. It is manufactured by Schneider Electric, ensuring reliability and compliance with safety standards.

• Primary voltage options: 480V, 440V, 460V
• Secondary voltage options: 115V, 120V
• Temperature rise of fifty-five degrees Celsius

Product Highlights

The 9070EL1D9 features pre-wired leads for easy installation and is suitable for single voltage applications.

Product Information

Standard Information

• Catalog Number: 9070EL1D9
• Brand: Square D

Technical Specifications

• Type: Industrial Control Transformer
• Primary Voltage: 480 V; 440 V; 460 V
• Secondary Voltage: 110 V
• Temperature Rating: 55 degrees Celsius
• Country of Origin: Mexico
• Certifications: UL, CE, CSA Listed
• Warranty Length: 18 months
• Connection Type: Leads (25 inches)
