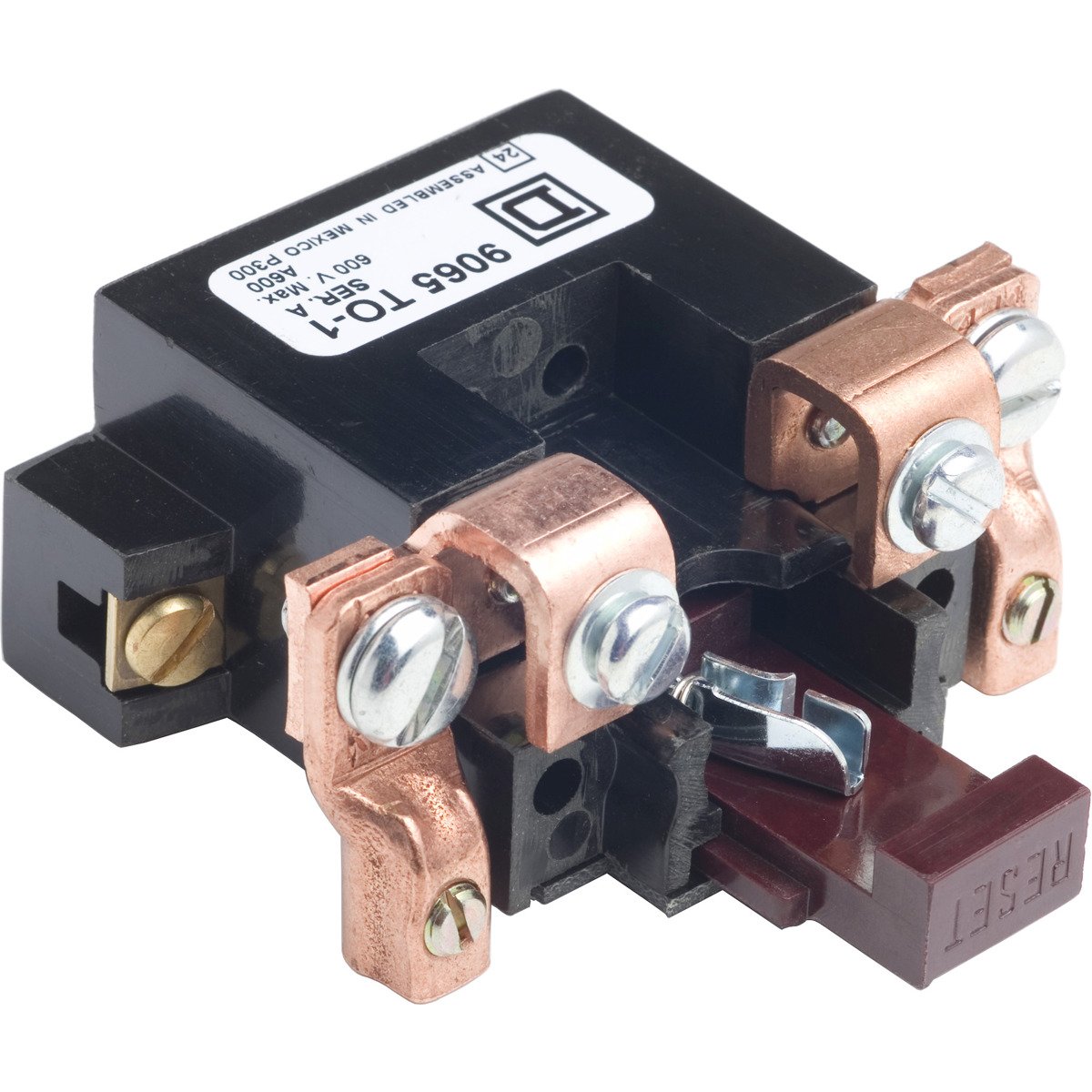

Square D 9065TO1 600 VAC 1-Pole Size 2 NEMA Melting Alloy Thermal Overload Relay

Product Description

The Square D 9065TO1 overload relay protects motors, controllers, and branch-circuit conductors from excessive heating due to prolonged motor over currents. It utilizes a one piece melting alloy thermal unit to protect against overheating of the motor winding insulation. This 45A replacement overload relay is for a NEMA size 2 single phase starter and has a trip free reset mechanism. The relay has a maximum voltage rating of 600 VAC.

• Protects motors, controllers, and branch-circuit conductors
• Protects against excessive heating due to prolonged motor over currents
• Uses a one piece melting alloy thermal unit

Product Highlights

Protects motors from overheating with melting alloy thermal unit. Designed for NEMA size 2 single phase starters with a 600 VAC rating.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9065TO1
• Country of Origin: Mexico

Technical Specifications

• Type: MELTING ALLOY
• Brand: Square D
• Voltage: 600 Volt
• NEMA Size: 2
• Trip Type: MELTING ALLOY
• Applications: STARTER
• Catalog Number: 9065TO1
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• UPC: 785901772507
• GTIN: 00785901772507
• Heater Included: Yes
• Motor FLA: 45 Ampere
• Number of Poles: 1
• Trip Class: Class 10, Class 30
• Reset Type: Trip Free
• Auxiliary Contact: 1NC
• Contact Rating: 600 VAC
• Mounting: Starter
• Enclosure: Open
• Number of Thermal Units Required: 1
