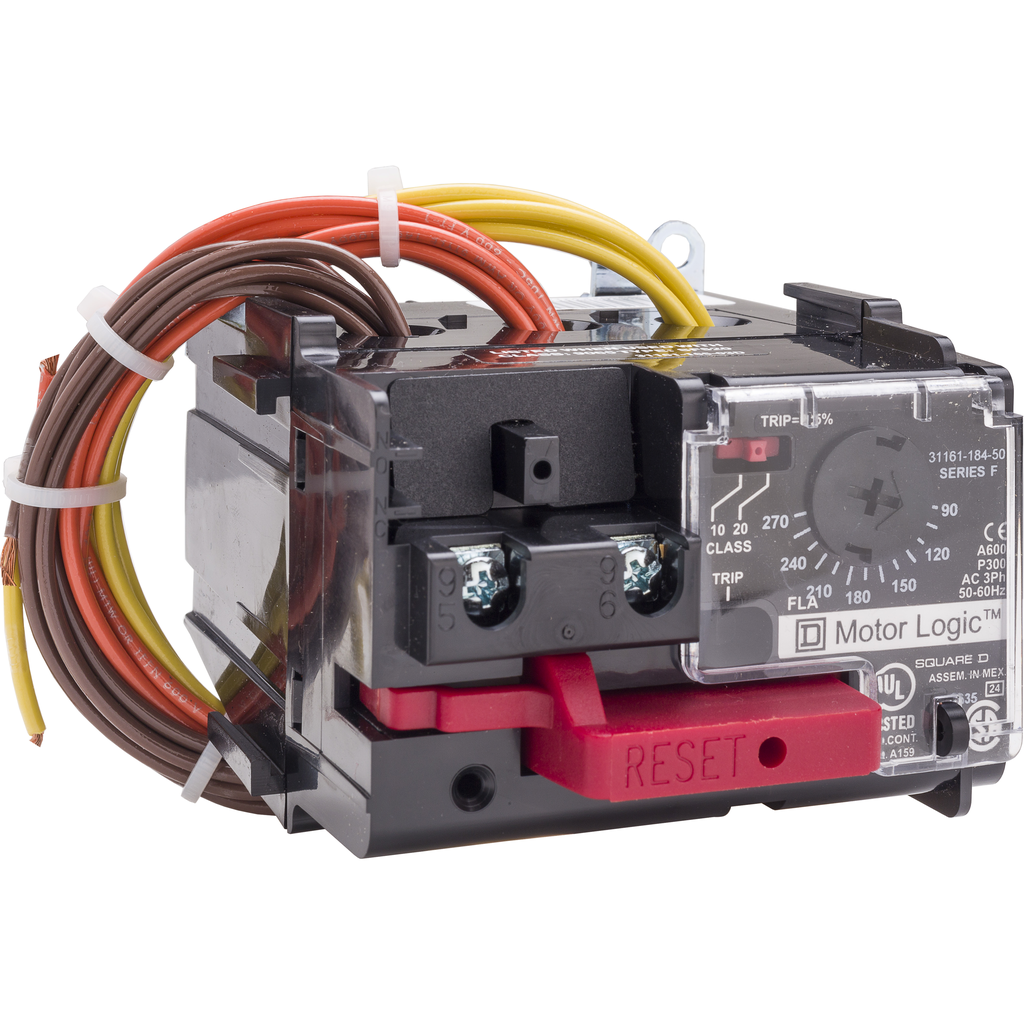

Square D 9065ST520 600 VAC 90 to 270 Amp 3-Phase Size 5 NEMA Solid State Thermal Overload Relay

Product Description

Square D 9065ST520 is a solid state thermal overload relay designed for 600 VAC applications. This model is suitable for 90 to 270 Amp 3-phase motors. It can be used with Type S full voltage non-reversing and reversing starters, as well as combination starters. The overload relay operates without the need for external power and is ambient insensitive.

• Trip free operation prevents overheating of motors.
• Visible trip indicator simplifies troubleshooting.
• Switch selectable overload trip classes from Class 10 to Class 20.

Product Highlights

This overload relay protects against overloads, phase unbalance, and phase loss conditions. It features electrical remote reset functionality for added convenience. The compact design makes installation straightforward.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9065ST520
• Voltage Rating: 600 Volt
• Full Load Current Rating: 90A to 270A
• NEMA Size: 5
• Trip Type: Solid State
• Number of Phases: 3 Phase
• Height: 8.25 inches
• Width: 7.75 inches
• Depth: 7.38 inches
• Country of Origin: Mexico
• Warranty: 18 months
