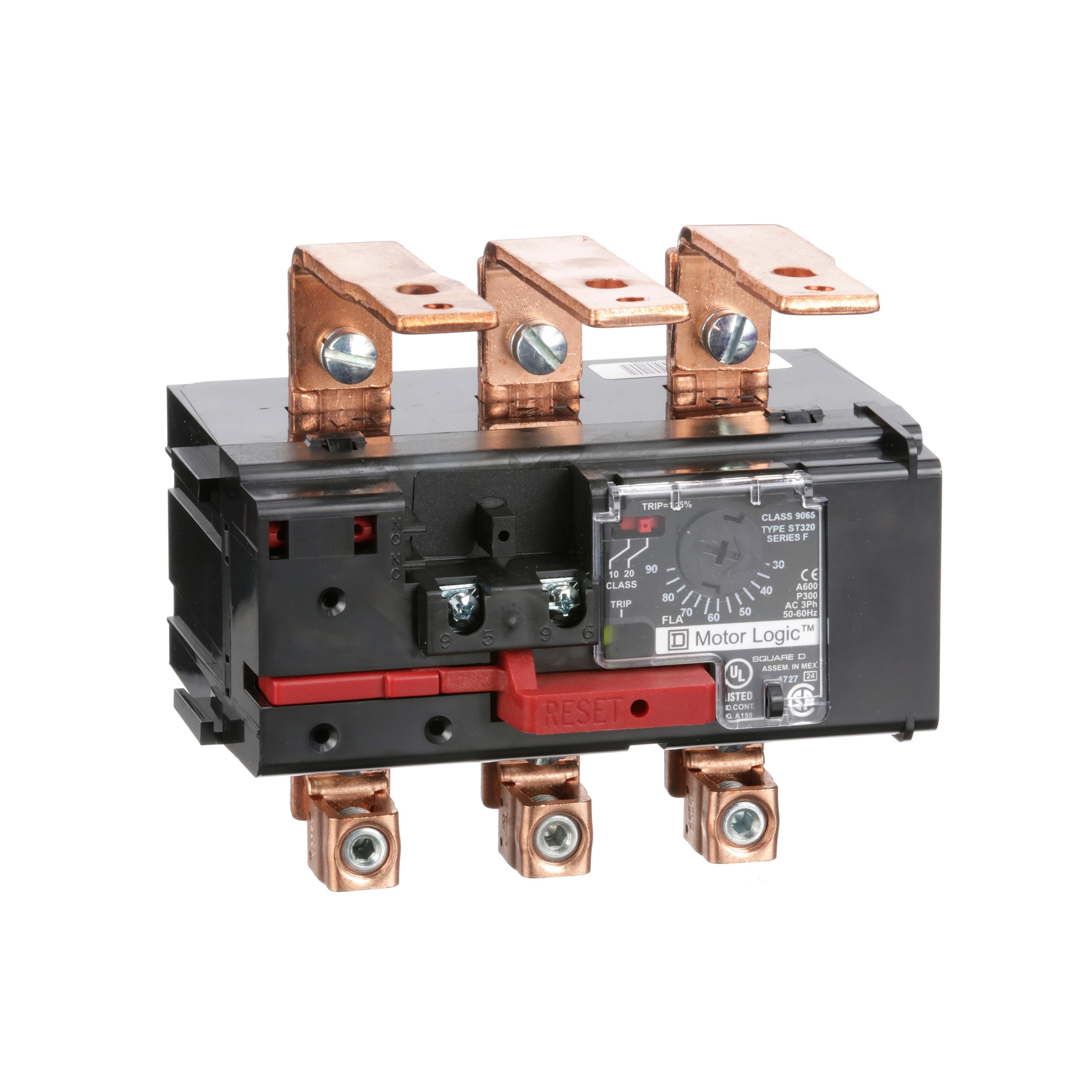

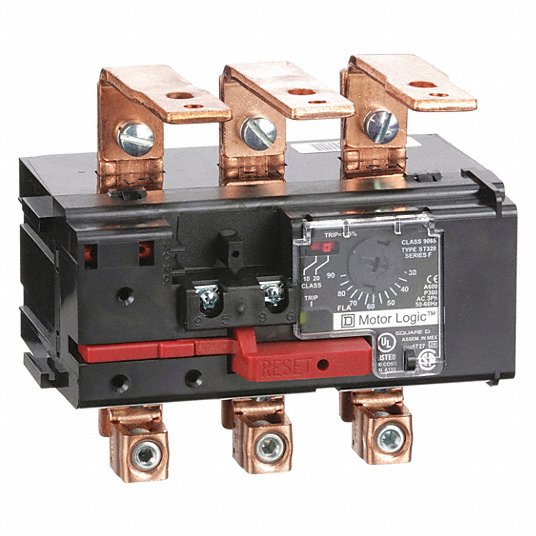

Square D 9065ST320 600 VAC 30 to 90 Amp 3-Phase Size 3 NEMA Solid State Thermal Overload Relay

Product Description

The Square D 9065ST320 is a Motor Logic solid state overload relay designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance, and phase loss conditions. Suitable for use with Type S NEMA size 3 three pole starters, this relay has a full load current rating of 30A to 90A and a maximum voltage rating of 600V. Features include switch selectable trip class and electrical remote reset.

• Visible trip indication and trip test function for quick troubleshooting.
• Trip-free operation prevents motor overheating.
• Easy retrofit of existing Square D Type S starters.

Product Highlights

Solid state overload relay with visible trip indication, trip test function and easy installation.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9065ST320
• Country of Origin: United States

Technical Specifications

• Type: SOLID STATE
• Brand: Square D
• NEMA Size: 3
• Trip Type: SOLID STATE
• Applications: Starter
• Number of Phases: 3 Phase
• Voltage: 600 Volt
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Made in USA: Yes
• UPC: 785901751946
• GTIN: 00785901751946
• Motor FLA: 30 to 90 Ampere
• Trip Class: Class 10, Class 20
• Reset Type: Manual
• Contact Rating: 90 A at 600 V AC
• Mounting: Starter
• Enclosure: Open
• Application: 3 Phase
• Full Load Current Rating: 30A to 90A
• Height: 5.02 inches
• Width: 7 in
• Depth: 7.3 in
• Frequency Rating: 50/60 Hz
• Number of Poles: 3
• Mounting Type: Surface
• Enclosure Type: NEMA 3
• Compatible Contactor Series: 9065 Motor Logic Solid State Overload Relays
• Relay Style: NEMA
• Overload Protection Type: Electronic
• Thermal Units Required: Not Applicable to Electronic Type Overload Relays
• Auxiliary Contact Form: 1NC
• Relay Mounting Style: Direct To Contactor
• Minimum Overload Relay Current Setting: 30 A
• Maximum Overload Relay Current Setting: 90 A
• Maximum Voltage Rating: 600V AC
• Body Height: 5.02 in
• Body Width: 5.33 in
• Body Depth: 4.45 in
• Standards: REACH; RoHS
• [Ue] Rated Operational Voltage: 600 V AC
• Pvc Free: Yes
• Eu Rohs Directive: Compliant with Exemptions
