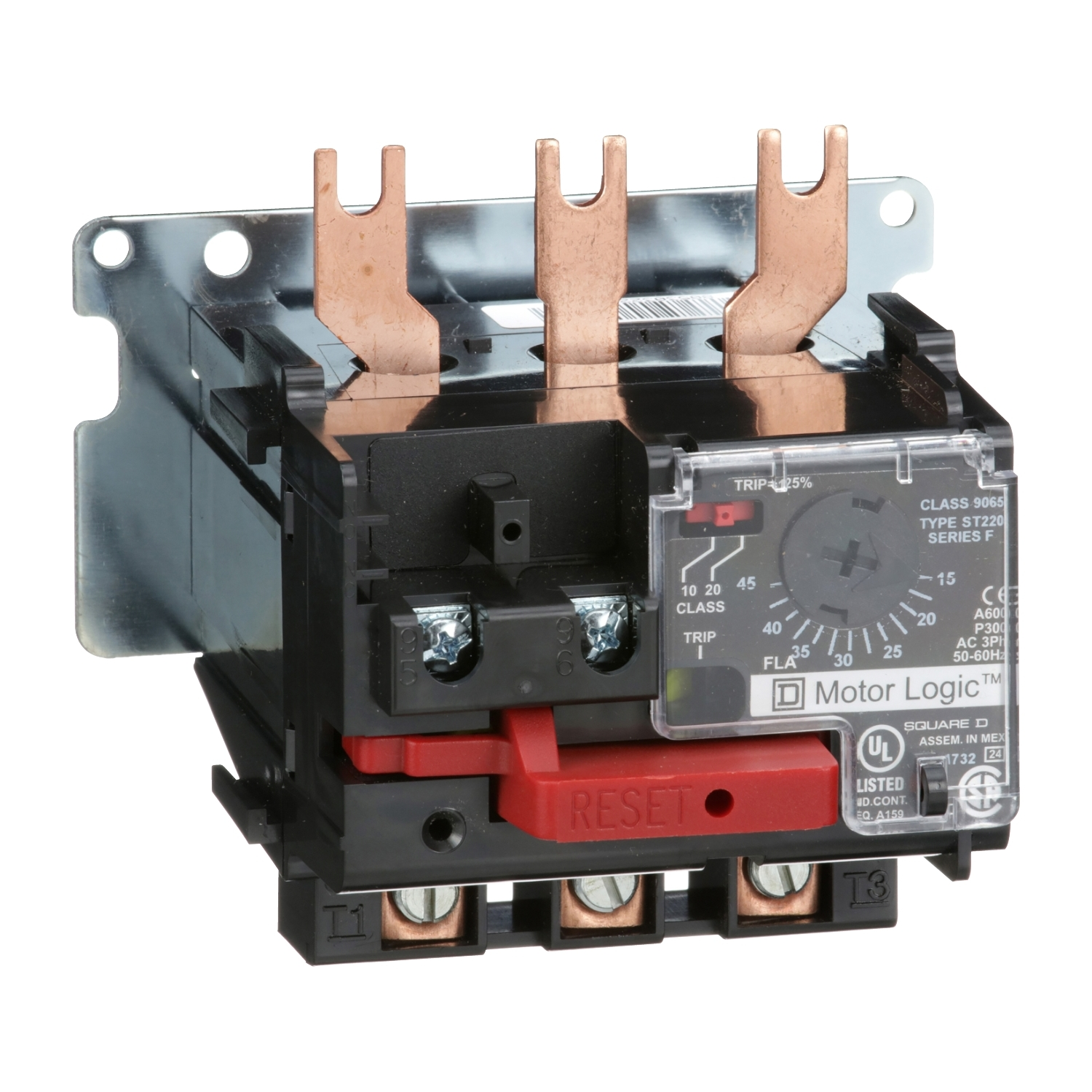

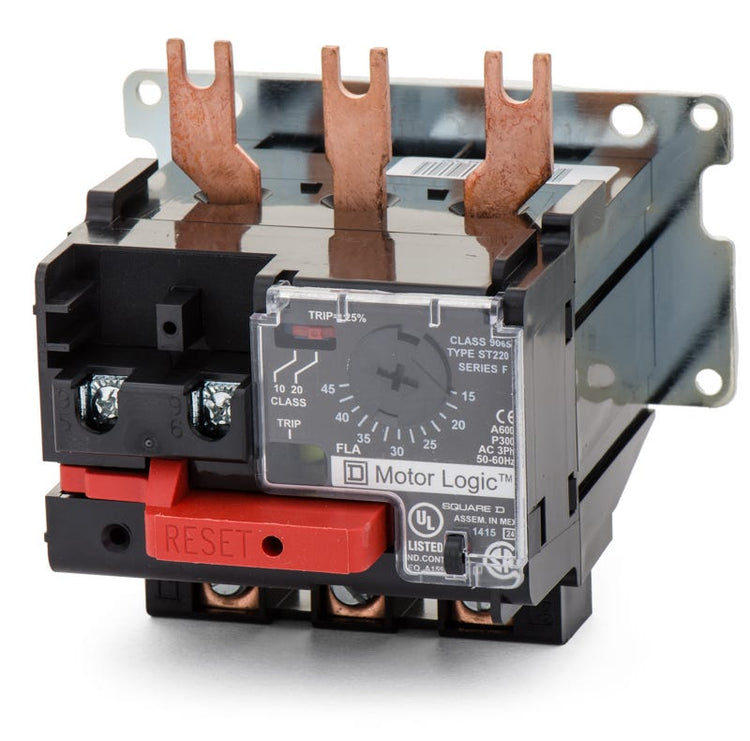

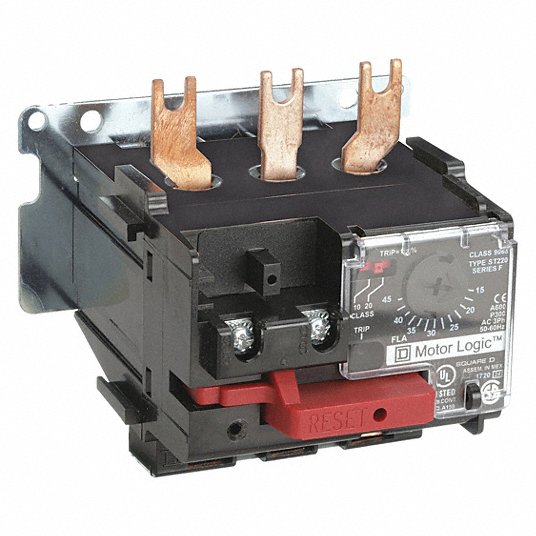

Square D 9065ST220 600 VAC 15 to 45 Amp 3-Phase Size 2 NEMA Solid State Thermal Overload Relay

Product Description

The Square D 9065ST220 is a Motor Logic overload relay that can be a standalone device or used on Type S full voltage starters. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance, and phase loss. It has a full load current rating of 15A to 45A and a maximum voltage rating of 600 V.

• Trip free operation
• Visible trip indication
• Application flexibility

Product Highlights

Protects motors from overloads, phase unbalance, and phase loss. Features include a visible trip indicator and easy installation.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9065ST220
• Country of Origin: Mexico

Technical Specifications

• Type: OVERLOAD RELAY
• Brand: Square D
• NEMA Size: 2
• Sub Brand: SCHNEIDER ELECTRIC
• Trip Type: SOLID STATE
• Reset Type: MANUAL, REMOTE WITH MODULE
• Applications: Starter
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Voltage: 600 Volt
• Contact Configuration: N/C TRIP INDICATOR
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• Heater Included: No
• Motor FLA: 15 to 45 Ampere
• Trip Class: Class 10, Class 20
• Contact Rating: 600 VAC
• Mounting: Starter
• Enclosure: Open
• Application: 3 Phase
• Thermal Overload Type: solid state
• Product Destination: starter
• Range Of Product: Motor Logic
• Mounting Support: mounting plate
• [Ue] Rated Operational Voltage: 600 V AC
• Minimum Overload Relay Current Setting: 15 A
• Maximum Overload Relay Current Setting: 45 A
• Standards: REACH; RoHS
• Series: 9065
• Amperage: 15-45
• Volts DC: 600
• Amps Range: 15 - 45
• Mounting Type: Device
• Protection: Solid state
• For Use With: Nema Type S Size 2 Motor Starters
• Length (in): 3.5
• Width (in): 4.3
• Height (in): 3.5
