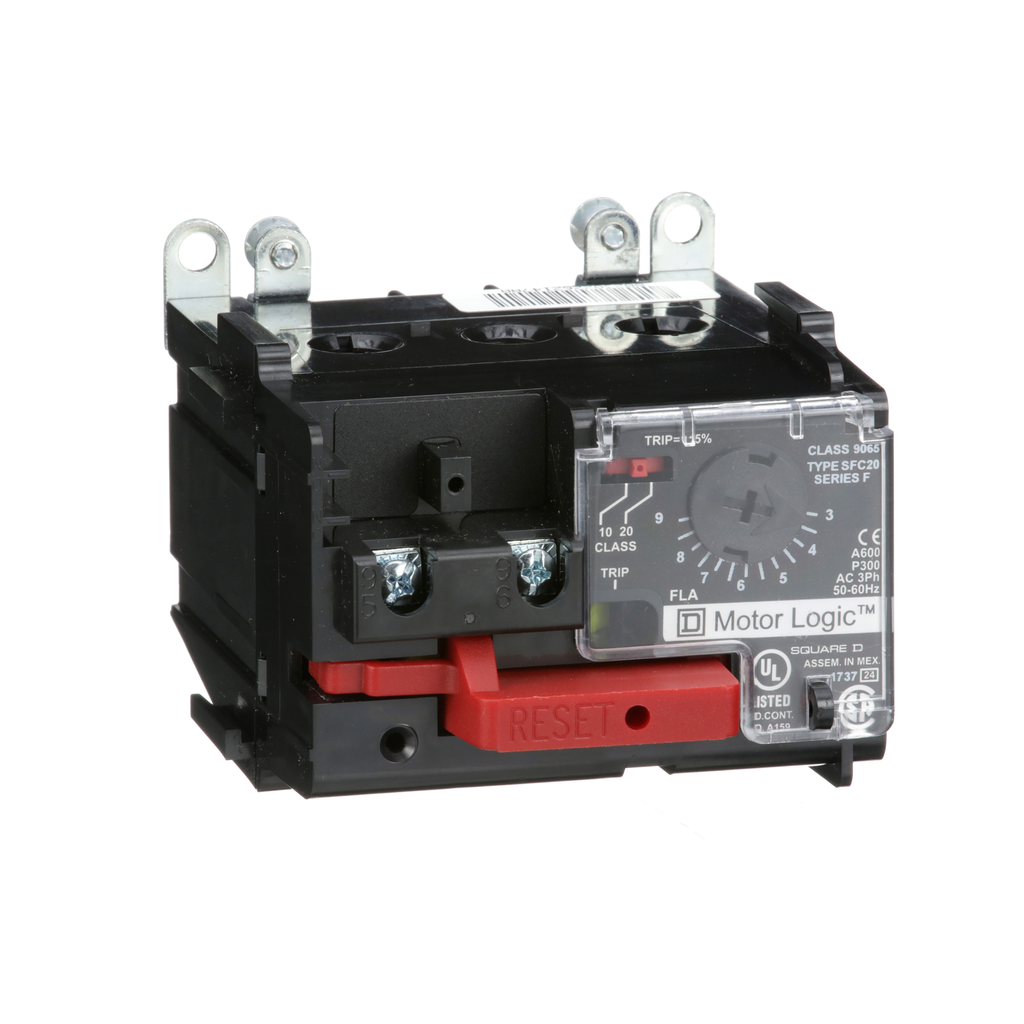

Square D 9065SFC20 Overload Relay 3 to 9 Amp 600 VAC NEMA 00C

Product Description

Square D 9065SFC20 is a solid state thermal overload relay. It protects three phase AC motors ranging from three to nine amps at a voltage of six hundred volts. This device is designed for NEMA size 00 starters and can be used with both non-reversing and reversing configurations. The overload relay is ambient insensitive, self-powered, and has a built-in trip indicator for easy troubleshooting. It features adjustable trip class settings from Class 10 to Class 20.

• Adjustable trip class settings
• Visible trip indicator
• Compatible with NEMA size 00 starters

Product Highlights

This overload relay is ideal for applications where overload protection is necessary. It is essential for preventing motor overheating and minimizing downtime.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9065SFC20
• Full Load Current Rating: 3A - 9A
• Voltage Rating: 600 VAC
• NEMA Size: 00
• Weight: 1.21 lbs
• Width: 3.26 inches
• Height: 2.69 inches
• Depth: 3.90 inches
