Product Description

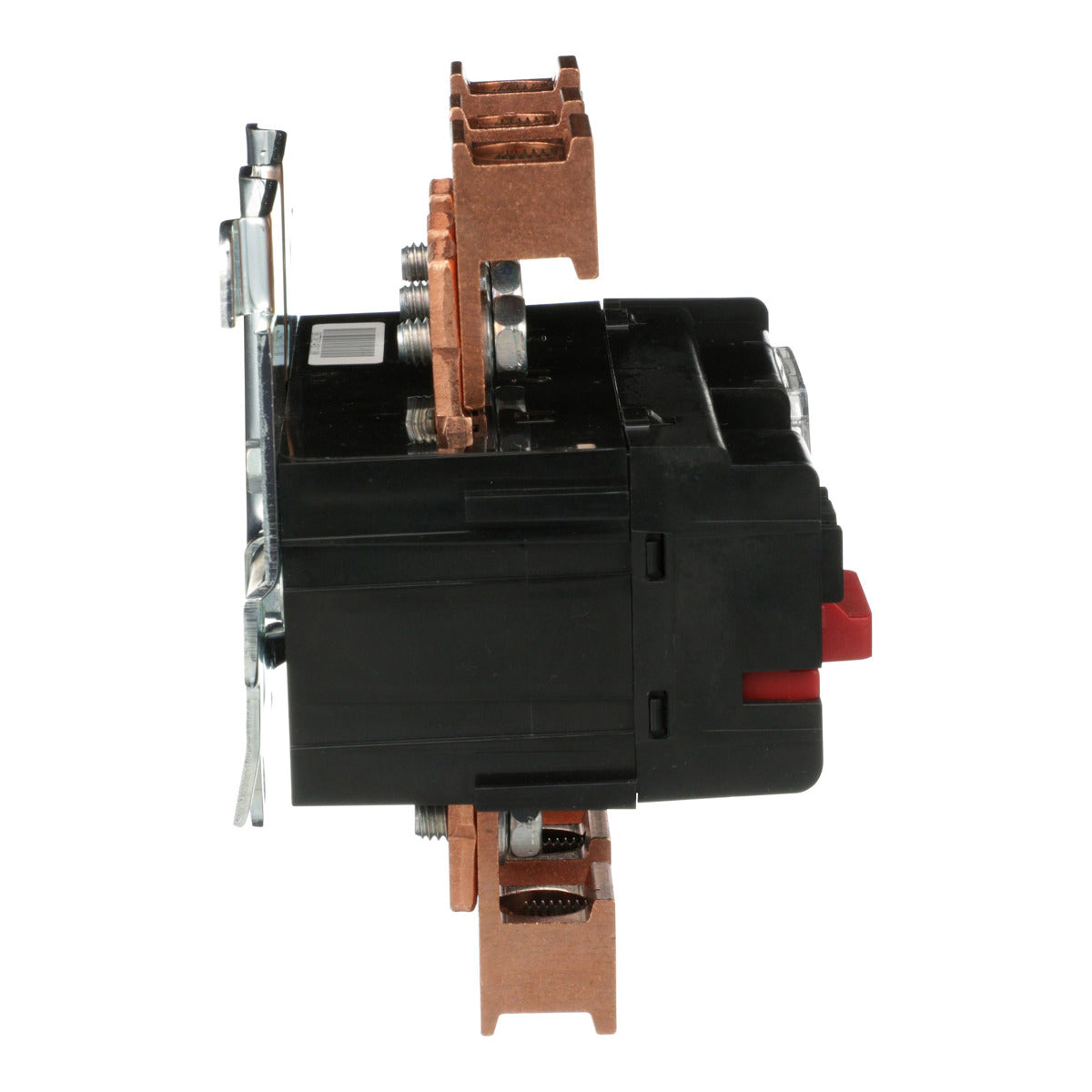

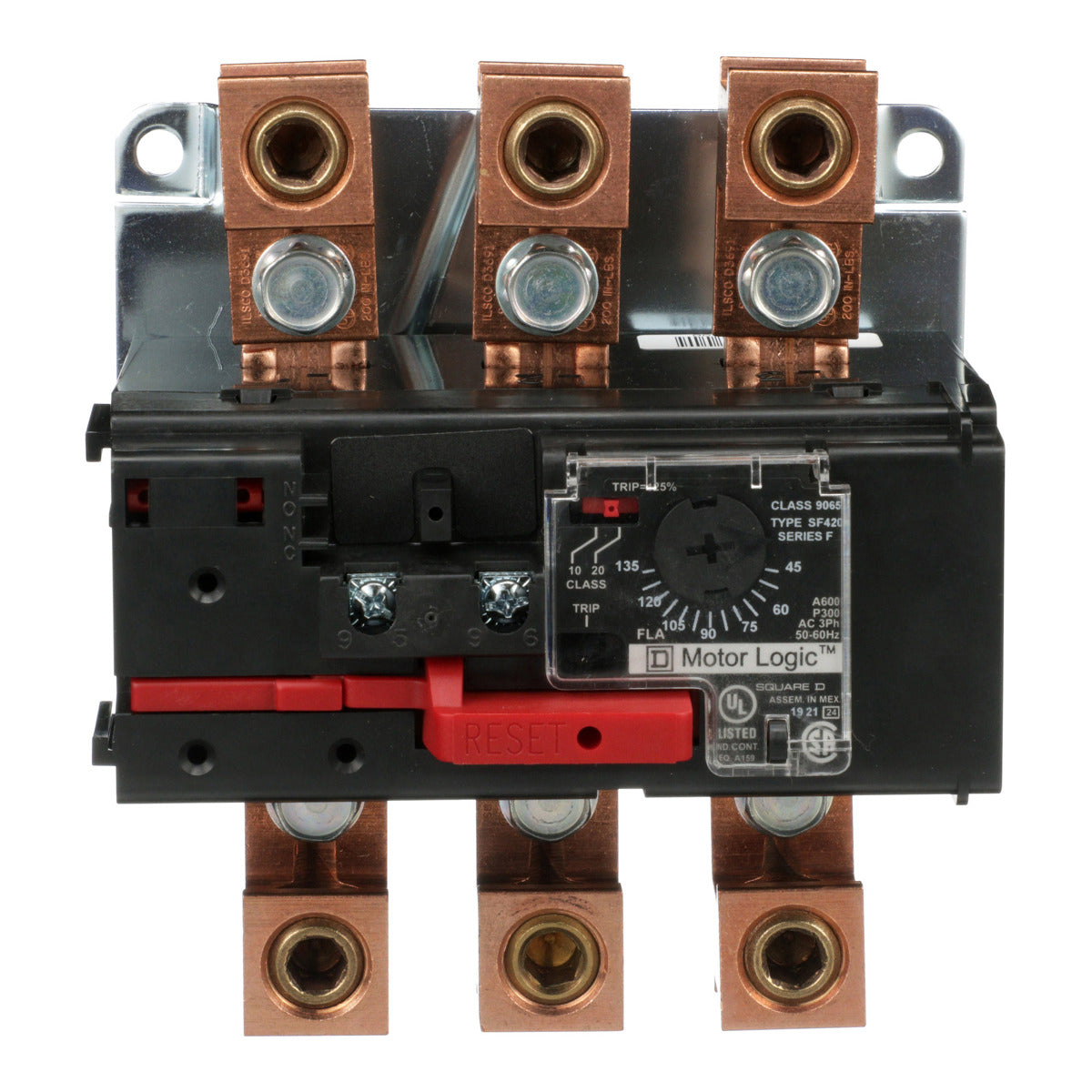

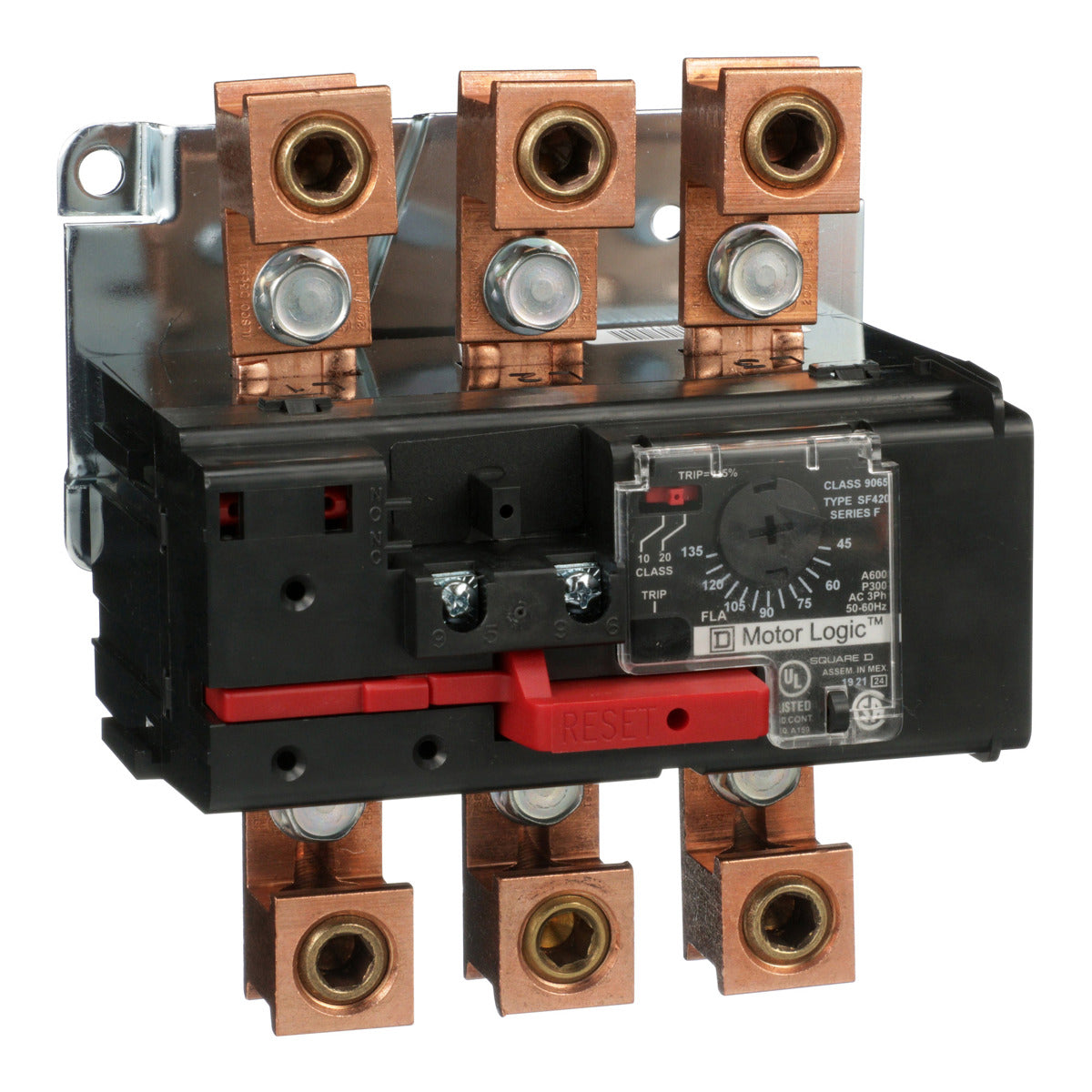

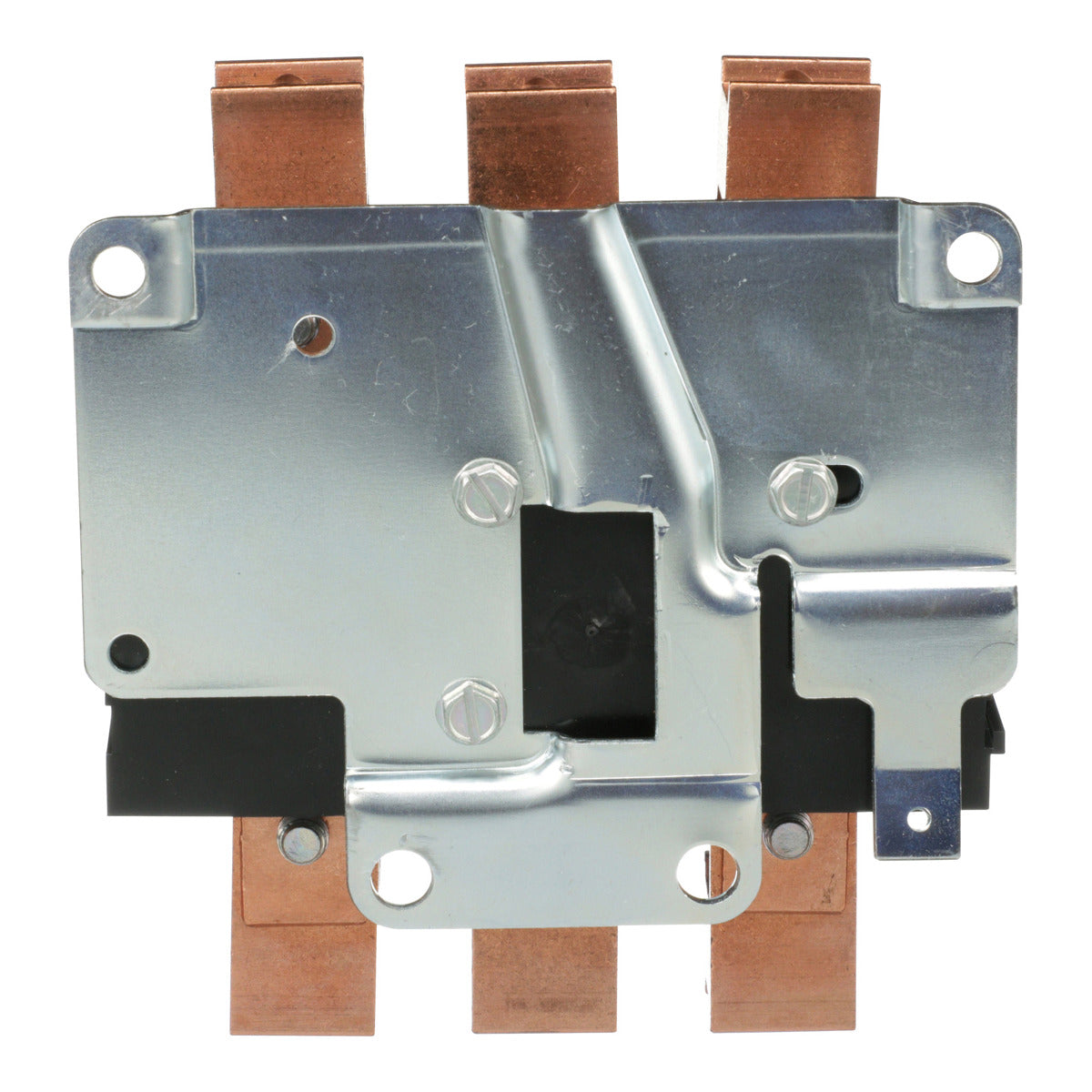

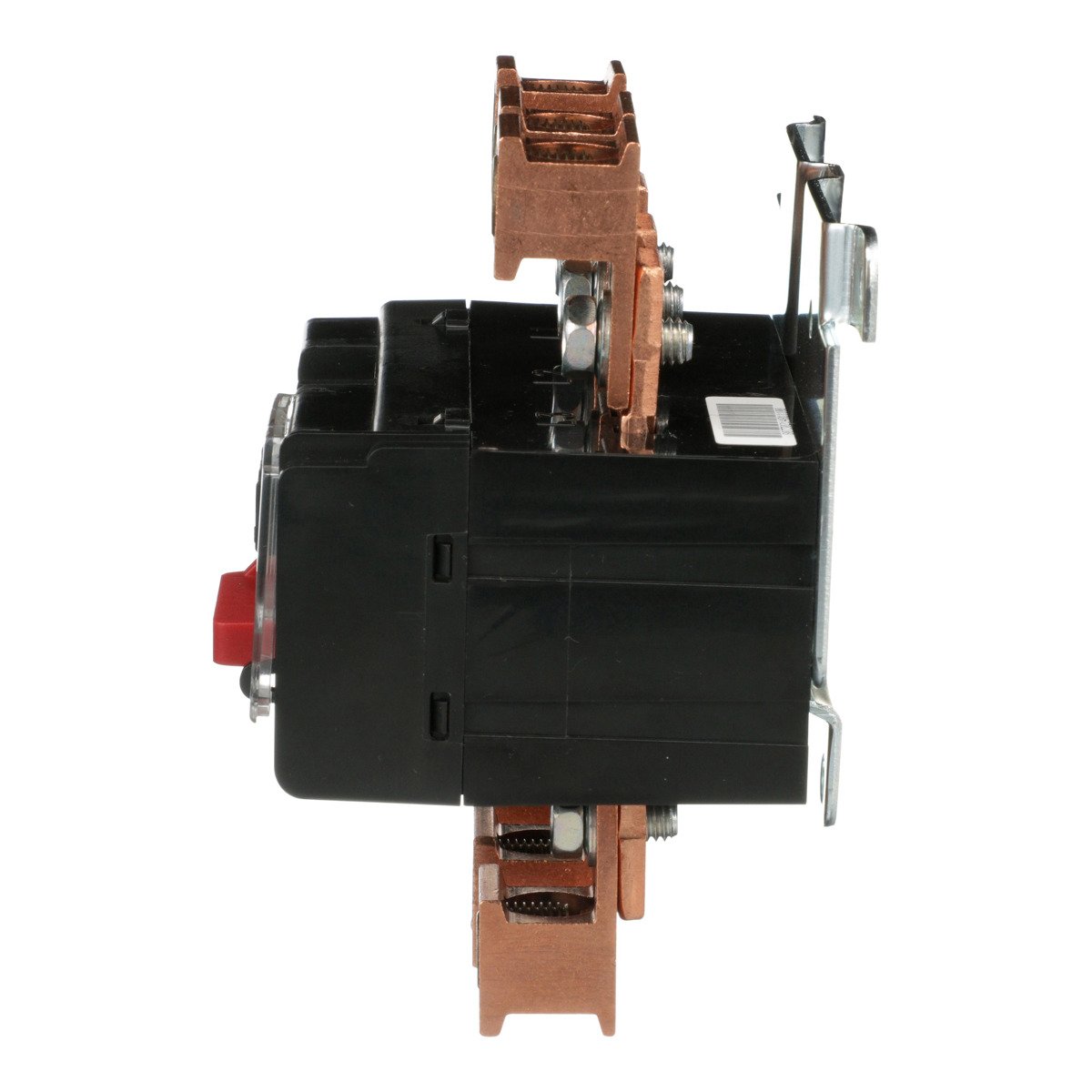

The Square D 9065SF420 Motor Logic overload relay can be a standalone device or used on Type S full voltage non-reversing and reversing starters and combination starters. It protects 50/60 Hz, three phase AC motors from overloads, phase unbalance, and phase loss conditions. This solid state overload relay is for NEMA size 4 three pole starters with a full load current rating of 45A to 135A and a maximum voltage rating of 600 V.
- Can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters
- Ambient insensitive and self-powered
- Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions
Product Highlights
The Square D 9065SF420 overload relay is UL listed and CSA certified. It features a visible trip indicator and trip test function for troubleshooting.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: 9065SF420
-
Country of Origin: Mexico
Technical Specifications
-
Type: OVERLOAD RELAY
-
Brand: Square D
-
Voltage: 600 Volt
-
NEMA Size: 4
-
Trip Type: SOLID STATE
-
Number of Phases: 3 Phase
-
Manufacturer: Schneider Electric
-
Country of Origin: Mexico
-
Item [Specifications]: NEMA Overload Relay
-
Phase [Specifications]: 3 phase
-
Features [Specifications]: Ground Fault Detection
-
Standards [Specifications]: CE Marked, CSA, NOM, UL
-
Trip Class [Specifications]: 10/20
-
For Use With [Specifications]: Mfr. Class 8536 Starters
-
Item - Relay [Specifications]: NEMA Style Overload Relay
-
Current Range [Specifications]: 45.0 to 135.0A
-
Sensing Method [Specifications]: Electronic
-
Number of Poles [Specifications]: 3
-
Mounting Support [Specifications]: panel
-
Separate Mounting [Specifications]: Yes
-
Reset Type - Relay [Specifications]: Manual
-
Thermal Overload Type [Specifications]: solid state
-
Trip Class - Overload [Specifications]: 10, 20
-
Overload Relay Current Range [Specifications]: 45 to 135A
-
[Ue] Rated Operational Voltage [Specifications]: 600 V AC
-
Use With - Contactors and Starters [Specifications]: Mfr. Class 8536 Starters
-
Heater Included: No
-
Motor FLA: 45 to 135 Ampere
-
Reset Type: Electric Remote
-
Contact Rating: 600 VAC
-
Mounting: Starter
-
Enclosure: Open
-
Application: 3 Phase
-
Series: 9065
-
Amperage: 45-135
-
Poles: 3
-
Approval: UL, CSA, NOM, CE
-
Frame Type: 9065
-
Protection: Solid State
-
For Use With: Type S Contactors and Starters
-
Standards: RoHS
-
Mpn: 9065SF420
-
Compatible Contactor Series: 9065 Motor Logic Solid State Overload Relays
-
Relay Style: NEMA
-
Overload Protection Type: Electronic
-
Auxiliary Contact Form: 1NC
-
Relay Mounting Style: Separately Mounted
-
Minimum Overload Relay Current Setting: 45 A
-
Maximum Overload Relay Current Setting: 135 A
-
Maximum Voltage Rating: 600V AC
-
UNSPSC: 39121542
