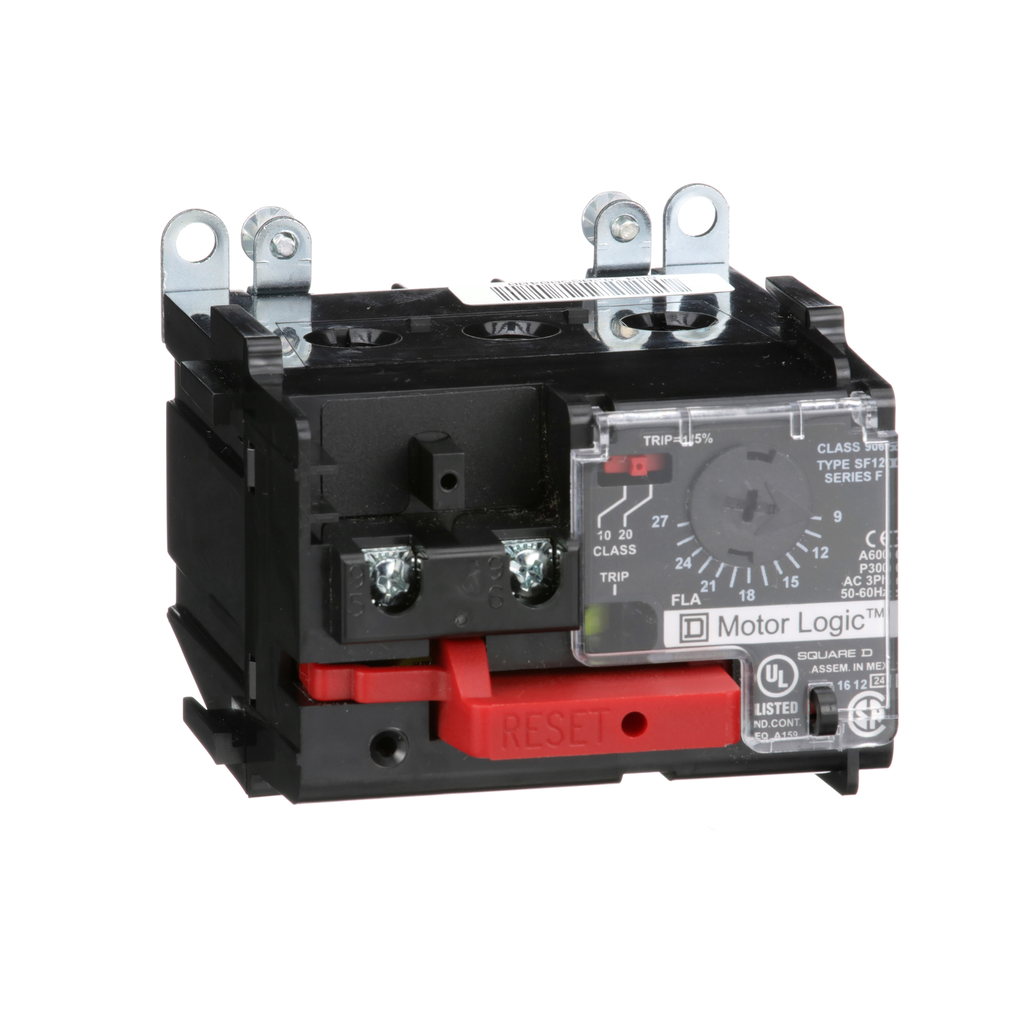

Square D 9065SF120 NEMA Solid State Thermal Overload Relay 600VAC 9 to 27 Amp

Product Description

The Square D 9065SF120 is a solid state thermal overload relay designed for use with NEMA size 1 three phase starters. This relay protects motors operating at 50 or 60 Hertz from overloads, phase loss, and unbalance conditions. It can operate as a standalone device or with non-reversing and reversing starters. It has a current rating of nine to twenty-seven amps and a maximum voltage of six hundred volts.

• Trip free operation to prevent motor overheating
• Visible trip indicator for easier troubleshooting
• Available electrical remote reset function

Product Highlights

This solid state overload relay features application flexibility and is ambient insensitive. It includes a trip test function and is compatible with existing Square D Type S starters for easy installation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9065SF120
• Weight: 1.21 lb
• Dimensions: 2.69 inches tall, 3.26 inches wide, 3.90 inches deep
• Voltage: 600 Volt
• Trip Type: Solid State
• Number of Poles: 3 Pole
• Warranty Length: 18 months
• Country of Origin: Mexico
